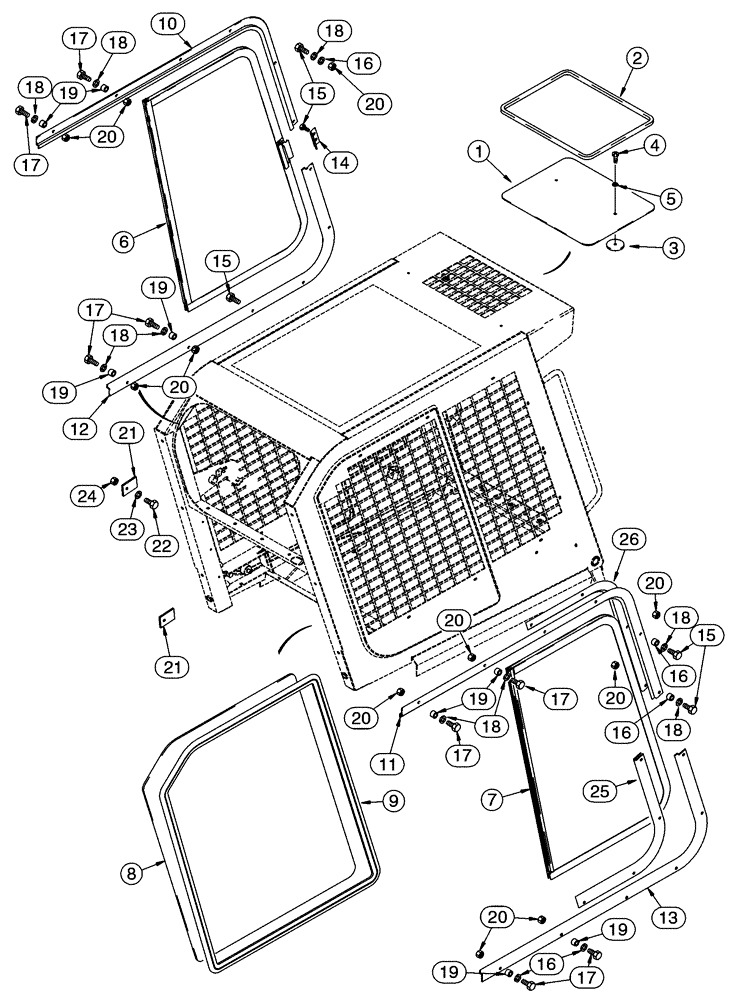

Запчасти Case IH 85XT (09-47) - WINDOWS SIDE AND TOP, NORTH AMERICAN MODELS -JAF0352233, EUROPEAN MODELS -JAF0352714 (09) - CHASSIS

1

239916A1

WINDOW

Top

1шт.

2

240657A1

SEALING STRIP

1310 mm (51-5/8 in.), Cut From 382086A1

1шт.

3

E99641

CAP

2шт.

4

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

5

103777A1

SEALING WASHER

2шт.

6

238455A3

GLASS

Left-Hand, Includes: 368898A1, 362346A1

1шт.

368898A1

LATCH

Slider

1шт.

Part of left-hand glass P/N 238455A3

1шт.

7

238454A3

GLASS

Right-Hand, Includes: 362346A1

1шт.

362346A1

SEAL KIT

Window Seal

1шт.

Part of left-hand glass P/N 238455A3

1шт.

Part of right-hand glass P/N 238454A3

1шт.

8

222755A1

GLASS

Stationary

2шт.

Used with seal P/N 233427A1

1шт.

9

233427A1

SEAL, GLASS

2900 mm (114-3/16 in.), Used With Ref. 8

2шт.

10

222749A2

BEZEL

Upper Left-Hand

1шт.

11

222743A2

BEZEL

Upper Right-Hand

1шт.

12

222748A2

BEZEL

Lower Left-Hand

1шт.

13

222742A2

BEZEL

Lower Right-Hand

1шт.

14

257128A3

LATCH

2шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

16шт.

16

283912A1

SPACER

If Equipped

16шт.

17

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

8шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

24шт.

19

283786A1

SPACER

8шт.

20

832-41306

NUT,M6 x 1, Cl 10

24шт.

21

258825A2

BLOCK

4шт.

22

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

24

832-41306

NUT,M6 x 1, Cl 10

4шт.

25

283916A2

SEAL

Lower

2шт.

26

283917A2

SEAL

Upper

2шт.
