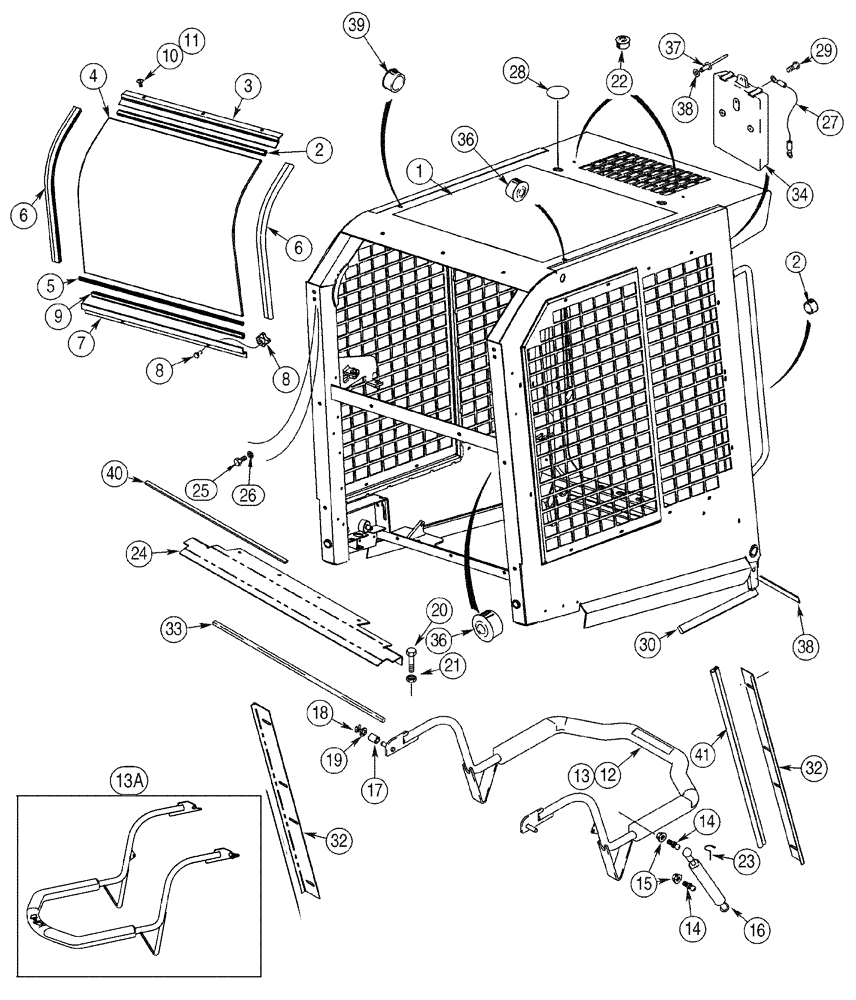

Запчасти Case IH 85XT (09-34) - CANOPY, ROPS FRAME AND SEAT BAR, MODELS WITH FLOOR HEATER AND MODELS WITHOUT HEATER (09) - CHASSIS

1

399706A1

ROPS, Two-Piece Side Screen, Machinery Item, North American Models JAF0319223 - JAF0352233, European Models JAF0352675 - JAF0352714, includes decals Ref. 7 (9-163), Ref. 1and 6 (9-173), Ref. 1 and 2 (9-167), also Includes: Ref. 2 - 11

1шт.

1

432311A1

ROPS, One-Piece Side Screen, Machinery Item, North American Models JAF0352234-, European Models JAF0352715-, Includes Decals Ref. 7 (9-163), Ref. 1 and 6 (9-173), Ref. 1 and 2 (9-167), Also Includes: Ref. 2 - 11, Not Illustrated

1шт.

2

321274A1

SEAL

1шт.

Part of P/N 399706A1

1шт.

Part of P/N 432311A1

1шт.

3

321268A1

CHANNEL

1шт.

Part of P/N 399706A1

1шт.

Part of P/N 432311A1

1шт.

4

321269A1

GLASS

Rear

1шт.

Part of P/N 399706A1

1шт.

Part of P/N 432311A1

1шт.

5

333988A1

SEAL

Lower Rear Window, 639 mm (25-5/32 in.)

1шт.

Part of P/N 399706A1

1шт.

Part of P/N 432311A1

1шт.

6

321276A1

SEAL

Rear Window Edge

2шт.

Part of P/N 399706A1

1шт.

Part of P/N 432311A1

1шт.

7

414792A2

BRACKET

Between Bolt Holes, 300 mm (11-13/16 in.)

1шт.

Part of P/N 399706A1

1шт.

Part of P/N 432311A1

1шт.

8

362337A1

KNOB

2шт.

Part of P/N 399706A1

1шт.

Part of P/N 432311A1

1шт.

9

321275A1

SEAL

Bottom Glass Seal, 587 mm (23-1/8 in.)

1шт.

Part of P/N 399706A1

1шт.

Part of P/N 432311A1

1шт.

10

611-8020

CARRIAGE BOLT,M8 x 20mm, Class 4.6

3шт.

Part of P/N 399706A1

1шт.

Part of P/N 432311A1

1шт.

11

832-41308

NUT,M8 x 1.25, Cl 10

3шт.

Part of P/N 399706A1

1шт.

Part of P/N 432311A1

1шт.

12

250842A3

BAR ASSY.

North American Models -JAF0273028, European Models -JAF0274114

1шт.

13

318038A1

BAR ASSY.

North American Models JAF0273029-JAF0352233, European Models JAF0274115-JAF0352714

1шт.

13a

419844A1

BAR

North American Models JAF0352234-, European Models JAF0352715-

1шт.

14

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

15

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

16

189787A2

SHOCK ABSORBER

1шт.

17

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

19

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

20

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

22

353-400

PLUG,Dome, .250" hole, Nylon

If used

2шт.

23

254307A1

CLIP

2шт.

24

292190A2

COWL

Hood

1шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Manual, Operators, 15 in., Replaces: L11541, L18331

1шт.

28

293887A1

COVER

70 mm (2-3/4 in.), Models Without Lift Hooks

2шт.

29

R46463

SCREW,0.18" x 0.75"

Manual Retention

1-2шт.

30

313149A1

SEAL

Screen Frame, 355 mm (14 in.)

2шт.

31

313150A1

SEAL

Toe Guard, 774 mm (30-1/2 in.)

2шт.

32

280476A2

ANGLE

ROPS To Frame Seal Holder

2шт.

33

315083A1

SEALING STRIP

Window Frame, 610 mm (40 in.), Europe Only

1шт.

34

R46464

CASE

1шт.

35

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

36

353-411

PLUG,Dome, 1.000" hole, Nylon

3шт.

37

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

38

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

3шт.

39

414635A1

COVER,25.4mm OD x 0.51mm Thk

Gray, If Used, 25.4 mm (1 in.)

2шт.

40

275066A1

SEAL

Hood Extension Panel, 628 mm

1шт.

41

280491A1

SEAL

725 mm

2шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
