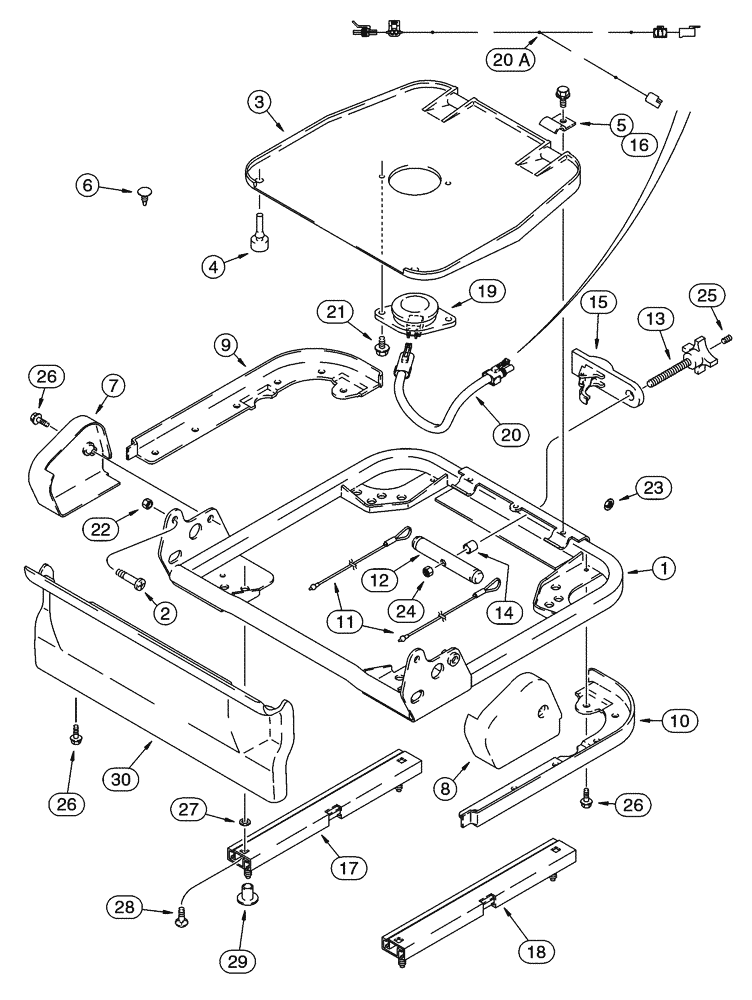

Запчасти Case IH 85XT (09-32) - SEAT SUSPENSION (09) - CHASSIS

308307A1

SEAT

Replaces: 222023A2 & 302138A1, Consists of: Ref. 1 - 30, Includes Figures 09-30, 09-31

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME Seat

1шт.

291757A1

ASSEMBLY

Consists Of: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

BOLT Special

3шт.

Part of assembly P/N 291757A1

1шт.

291758A1

ASSEMBLY

Consists Of: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE Base

1шт.

Part of assembly P/N 291758A1

1шт.

291752A1

ASSEMBLY

Consists Of: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

BUMPER

2шт.

Part of assembly P/N 291758A1

1шт.

Part of assembly P/N 291752A1

1шт.

5

NSS

NOT SOLD SEPARAT

SLIP

2шт.

Part of assembly P/N 291758A1

1шт.

291760A1

ASSEMBLY

Consists Of: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

CLIP

7шт.

Part of assembly P/N 291760A1

1шт.

Part of assembly P/N 291758A1

1шт.

291751A1

ASSEMBLY

Consists Of: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

COVER Left-Hand

1шт.

Part of assembly P/N 291751A1

1шт.

8

NSS

NOT SOLD SEPARAT

COVER Right-Hand

1шт.

Part of assembly P/N 291751A1

1шт.

291750A1

ASSEMBLY

Consists of: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

FENDER Left-Hand

1шт.

Part of assembly P/N 291750A1

1шт.

10

NSS

NOT SOLD SEPARAT

FENDER Right-Hand, Not Illustrated

1шт.

Part of assembly P/N 291750A1

1шт.

291753A1

ASSEMBLY

Consists Of: Ref. 11

1шт.

11

NSS

NOT SOLD SEPARAT

CABLE

2шт.

Part of assembly P/N 291753A1

1шт.

12

291772A1

BAR

1шт.

291755A1

ASSEMBLY

Consists Of: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

KNOB Weight Adjustment

1шт.

Part of assembly P/N 291755A1

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER

1шт.

Part of assembly P/N 291755A1

1шт.

15

291769A1

INDICATOR

Weight Adjuster

1шт.

REF

INSTRUCTION

SEAT

1шт.

291759A1

ASSEMBLY

Consists Of: Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

CLIP

2шт.

Part of assembly P/N 291759A1

1шт.

291768A1

ASSEMBLY

Consists Of: Ref. 17, 18, 27 and 28

1шт.

17

NSS

NOT SOLD SEPARAT

SLIDE Left-Hand, Order 291768A1

1шт.

Part of assembly P/N 291768A1

1шт.

18

NSS

NOT SOLD SEPARAT

SLIDE Right-Hand, Order 291768A1

1шт.

Part of assembly P/N 291768A1

1шт.

19

242306A2

SWITCH

Operator Presence, Replaces: 291773A1, 242306A1

1шт.

20

302137A1

HARNESS

Seat, Two-Connector, JAF0236413-, Replaces: 291774A1, Not Included In Assembly, Purchase Separately

1шт.

20a

242132A2

HARNESS

Seat, Three-Connector, -JAF0236412, See Figure 09-28, Not Included In Assembly, Purchase Separately

1шт.

21

NSS

NOT SOLD SEPARAT

BOLT

4шт.

22

NSS

NOT SOLD SEPARAT

NUT

2шт.

23

NSS

NOT SOLD SEPARAT

NUT Special

1шт.

24

NSS

NOT SOLD SEPARAT

NUT

1шт.

25

NSS

NOT SOLD SEPARAT

SET SCREW

1шт.

26

NSS

NOT SOLD SEPARAT

BOLT Special

8шт.

27

NSS

NOT SOLD SEPARAT

SPACER

4шт.

Part of assembly P/N 291768A1

1шт.

28

NSS

NOT SOLD SEPARAT

BOLT Special

4шт.

Part of assembly P/N 291768A1

1шт.

29

NSS

NOT SOLD SEPARAT

CAP

4шт.

30

291775A1

BELLOWS

1шт.
