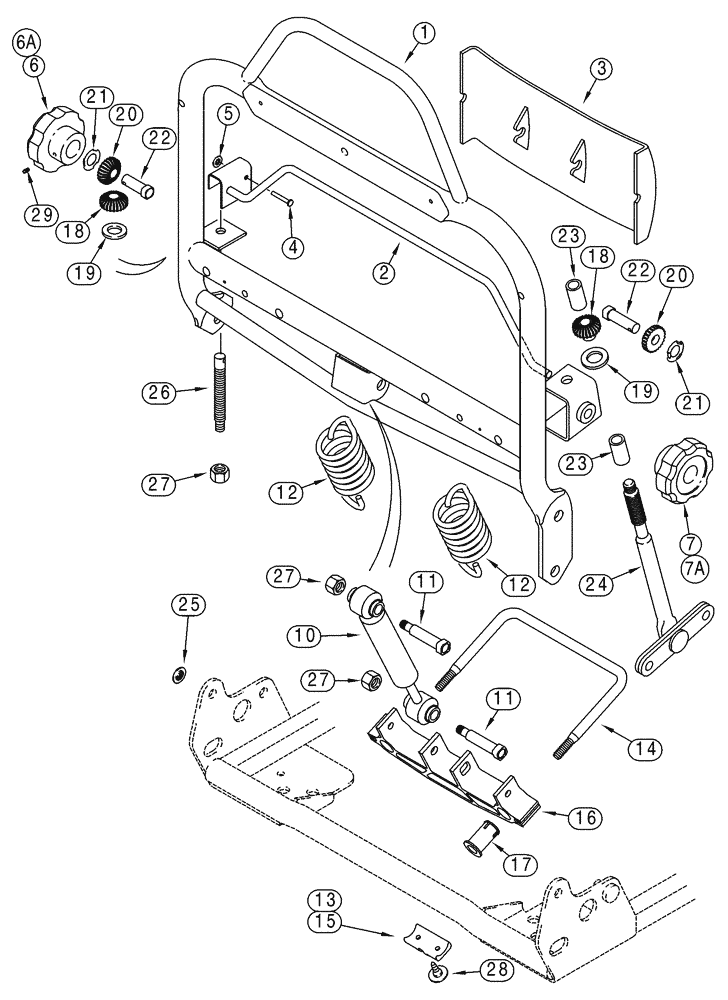

308307A1
SEAT
Replaces: 222023A2 & 302138A1, Consists Of: Ref. 1 - 29, Includes 09-30, 09-32
1шт.
1
NSS
NOT SOLD SEPARAT
FRAME Backrest
1шт.
291765A1
ASSEMBLY
LUMBAR, Consists Of: Ref. 2 - 5
1шт.
2
NSS
NOT SOLD SEPARAT
CRANK
1шт.
Part of lumbar assy. P/N 291765A1
1шт.
3
NSS
NOT SOLD SEPARAT
SUPPORT Lumbar
1шт.
Part of lumbar assy. P/N 291765A1
1шт.
4
NSS
NOT SOLD SEPARAT
PIN
1шт.
Part of lumbar assy. P/N 291765A1
1шт.
5
NSS
NOT SOLD SEPARAT
NUT Special
1шт.
Part of lumbar assy. P/N 291765A1
1шт.
291756A1
ASSEMBLY
Order One Kit Per Side, Consists Of Ref. 6 and 291767A1, or Ref. 7 and 291767A1
1шт.
6
NSS
NOT SOLD SEPARAT
KNOB Lumbar Adjustment, Retained By Flange Nut
1шт.
Part of assembly P/N 291756A1
1шт.
6a
361107A1
KIT
Lumbar Knob, Retained By 1/4-20 NC Set Screw
1шт.
7
NSS
NOT SOLD SEPARAT
KNOB Recliner, Retained By Flange Nut
1шт.
Part of assembly P/N 291756A1
1шт.
7a
361106A1
KIT
Recliner Knob, Retained By 1/4-20 NC Set Screw
1шт.
291767A1
ASSEMBLY
EMBLEM, Consists Of: Ref. 8 and 9
1шт.
Part of assembly P/N 291756A1
1шт.
8
NSS
NOT SOLD SEPARAT
EMBLEM Lumbar, Not Illustrated
1шт.
Part of emblem assy. P/N 291767A1
1шт.
9
NSS
NOT SOLD SEPARAT
EMBLEM Recliner, Not Illustrated
1шт.
Part of emblem assy. P/N 291767A1
1шт.
291748A1
ASSEMBLY
Consists Of: Ref. 10 and 11
1шт.
10
NSS
NOT SOLD SEPARAT
DAMPER
1шт.
Part of assembly P/N 291748A1
1шт.
11
NSS
NOT SOLD SEPARAT
PIN
2шт.
Part of assembly P/N 291748A1
1шт.
291749A1
ASSEMBLY
Consists Of: Ref. 12 and 13
1шт.
12
NSS
NOT SOLD SEPARAT
SPRING
2шт.
Part of assembly P/N 291749A1
1шт.
13
NSS
NOT SOLD SEPARAT
BUSHING Spring Arm
2шт.
Part of assembly P/N 291749A1
1шт.
Part of assembly P/N 291761A1
1шт.
REF
INSTRUCTION
SEAT
1шт.
291761A1
ASSEMBLY
Consists Of: Ref. 13 - 17
1шт.
14
NSS
NOT SOLD SEPARAT
ARM Spring
1шт.
Part of assembly P/N 291761A1
1шт.
15
NSS
NOT SOLD SEPARAT
BUSHING Spring Arm
2шт.
Part of assembly P/N 291761A1
1шт.
16
NSS
NOT SOLD SEPARAT
SADDLE
1шт.
Part of assembly P/N 291761A1
1шт.
17
NSS
NOT SOLD SEPARAT
BUSHING Saddle
2шт.
Part of assembly P/N 291761A1
1шт.
291754A1
ASSEMBLY
Consists Of: Ref. 18 - 23
2шт.
18
NSS
NOT SOLD SEPARAT
NUT
1шт.
Part of assembly P/N 291754A1
1шт.
19
NSS
NOT SOLD SEPARAT
WASHER Thrust
1шт.
Part of assembly P/N 291754A1
1шт.
20
NSS
NOT SOLD SEPARAT
GEAR Bevel
1шт.
Part of assembly P/N 291754A1
1шт.
21
NSS
NOT SOLD SEPARAT
WASHER Spring
1шт.
Part of assembly P/N 291754A1
1шт.
22
NSS
NOT SOLD SEPARAT
SHAFT
1шт.
Part of assembly P/N 291754A1
1шт.
23
NSS
NOT SOLD SEPARAT
BUSHING, If Equipped
2шт.
Part of assembly P/N 291754A1
1шт.
291766A1
ASSEMBLY
Consists Of: Ref. 24 and 25
1шт.
24
NSS
NOT SOLD SEPARAT
SCREW ASSY.
1шт.
Part of assembly P/N 291766A1
1шт.
25
NSS
NOT SOLD SEPARAT
NUT Special
1шт.
Part of assembly P/N 291766A1
1шт.
26
291771A1
ADJUSTMENT SCREW
1шт.
27
NSS
NOT SOLD SEPARAT
NUT
3шт.
28
NSS
NOT SOLD SEPARAT
BOLT Special
4шт.
29
NSS
NOT SOLD SEPARAT
SET SCREW
2шт.
