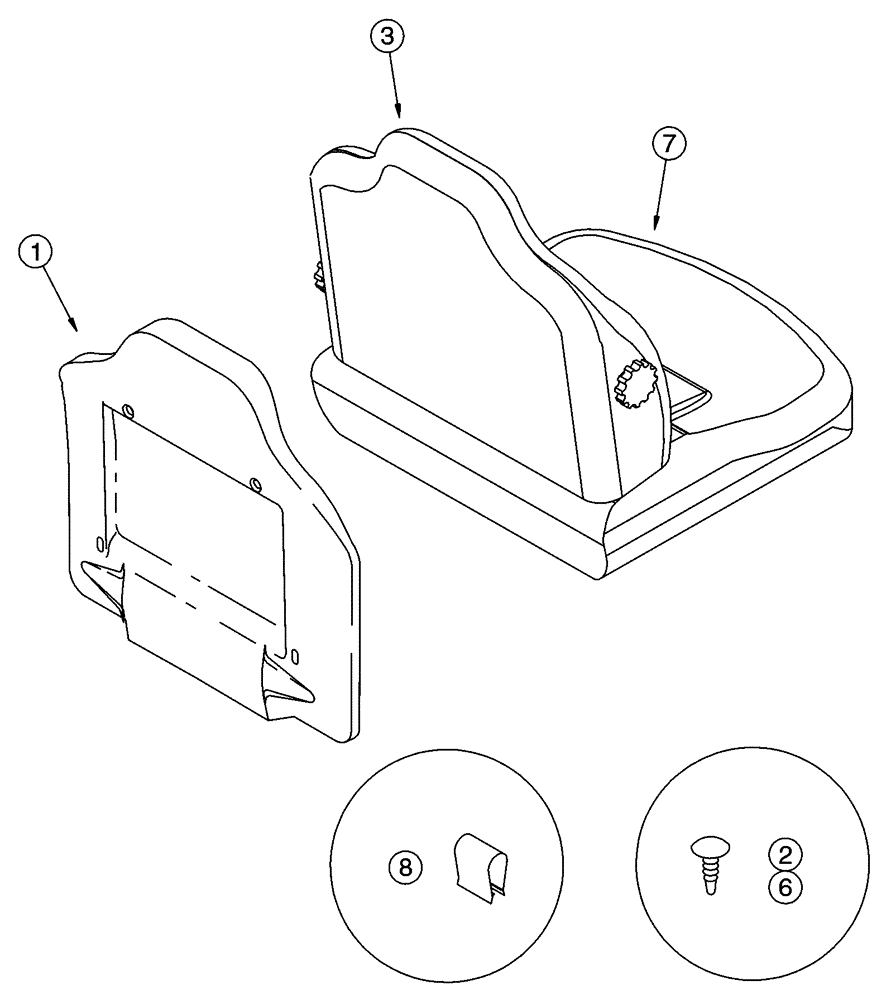

Запчасти Case IH 85XT (09-30) - SEAT SUSPENSION (09) - CHASSIS

308307A1

SEAT

Replaces: 222023A2 & 302138A1, Consists Of: Ref. 1 - 8, Includes Pages 09-31, 09-32

1шт.

1

291770A1

PANEL

Backrest

1шт.

291764A1

ASSEMBLY

BACKREST PAD, Consists Of: Ref. 2 - 5

1шт.

291760A1

ASSEMBLY

Consists Of: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

CLIP

7шт.

Part of backrest pad assy. P/N 291764A1

1шт.

Part of assembly P/N 291760A1

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION Backrest

1шт.

Part of backrest pad assy. P/N 291764A1

1шт.

4

NSS

NOT SOLD SEPARAT

EMBLEM Lumbar, Not Illustrated

1шт.

Part of backrest pad assy. P/N 291764A1

1шт.

5

NSS

NOT SOLD SEPARAT

EMBLEM Recliner, Not Illustrated

1шт.

Part of backrest pad assy. P/N 291764A1

1шт.

291763A1

ASSEMBLY

CUSHION Seat, Consists Of: Ref. 6 - 8

1шт.

291760A1

ASSEMBLY

Consists Of: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

CLIP

7шт.

Part of assembly P/N 291760A1

1шт.

Part of seat cushion assy. P/N 291763A1

1шт.

7

NSS

NOT SOLD SEPARAT

CUSHION Seat

1шт.

Part of seat cushion assy. P/N 291763A1

1шт.

291762A1

ASSEMBLY

Consists Of: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

CLIP

2шт.

Part of seat cushion assy. P/N 291763A1

1шт.

Part of assembly P/N 291762A1

1шт.
