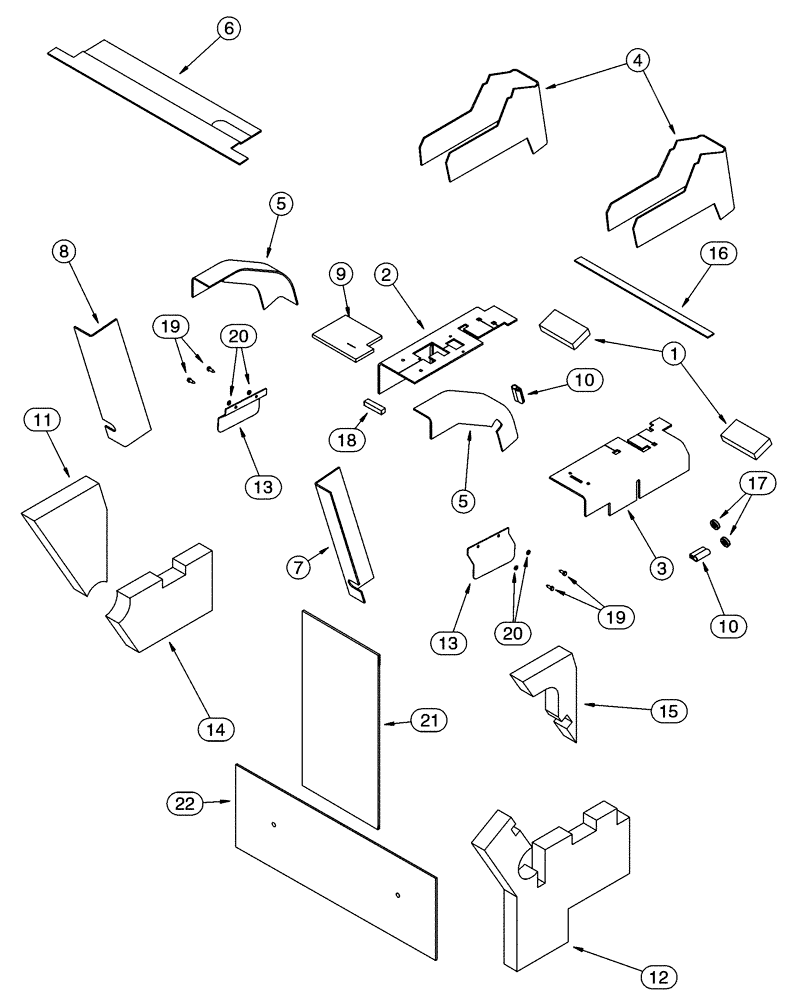

Запчасти Case IH 85XT (09-26) - SOUNDPROOFING PANELS Europe (09) - CHASSIS

1

295007A1

SEAL

Console, 135 mm (5-3/8 in.)

2шт.

2

308877A1

PAD

Console Barrier, Left-Hand, If Equipped

1шт.

3

308879A1

PAD

Console Barrier, Right-Hand, If Equipped

1шт.

4

308917A1

PAD

Console

2шт.

5

309011A1

SHEET

Upper Corner

2шт.

6

309701A1

SHEET

Hood Extension

1шт.

7

309702A1

SHEET

Extension, Right-Hand

1шт.

8

309703A1

SHEET

Extension, Left-Hand

1шт.

9

311222A1

LARGE PLATE

PLATE, LARGE Loader Lock Barrier

1шт.

10

311258A1

SEAL

Foor Plate, 50 mm (2 in.)

2шт.

11

311341A1

INSULATOR

Engine Compartment, Left-Hand Upper

1шт.

12

311342A1

INSULATOR

Engine Compartment, Right-Hand Lower

1шт.

13

311412A1

SHEET

Overlap Extension

2шт.

14

311641A1

INSULATOR

Engine Compartment, Left-Hand Lower

1шт.

15

311642A1

INSULATOR

Engine Compartment, Right-Hand Upper

1шт.

16

311869A1

BAND

Floor Plate, 520 mm (20-1/2 in.), If Equipped

1шт.

17

313231A1

BAND

Cable Seal, 30 mm (1-1/4 in.), If Equipped

2шт.

18

313278A1

BAND

Lock Slot Cover, 50 mm (2 in.), If Equipped

1шт.

19

779-14619

SELF-TAP SCREW,Hex Hd, M6.3 x 19

M6.3 st x 19

4шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

21

318165A1

INSULATOR

Upper

1шт.

22

318166A1

INSULATOR

Lower

1шт.
