(02-12) - MANIFOLDS NORTH AMERICA/EUROPE *- JAF0236483

Запчасти Case IH 85XT (02-12) - MANIFOLDS NORTH AMERICA/EUROPE *- JAF0236483 (02) - ENGINE

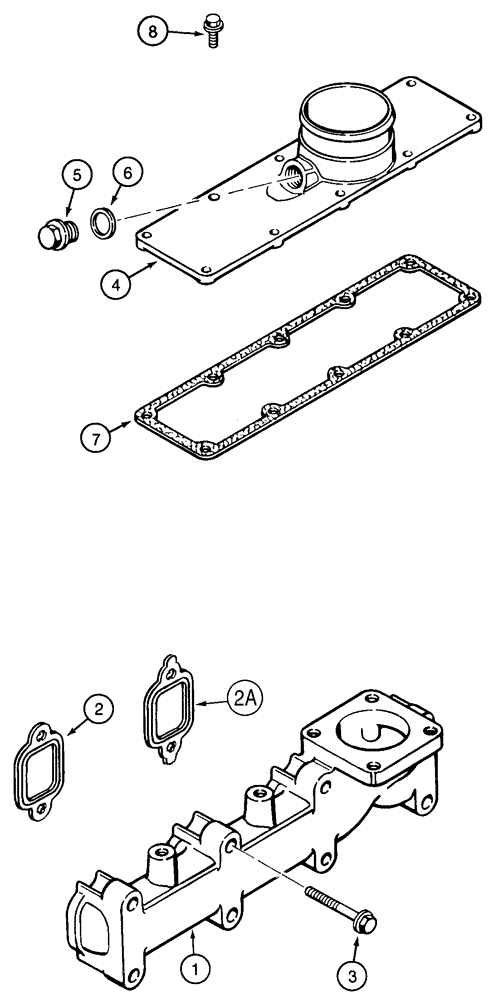

Схема запчастей Case IH 85XT - (02-12) - MANIFOLDS NORTH AMERICA/EUROPE *- JAF0236483 (02) - ENGINE
2
8
3
2a
7
1
5
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J901223

MANIFOLD

Manifold

1шт.

2

J905443

MANIFOLD GASKET

Gasket , Manifold No Longer Available Order : J927154

4шт.

2a

J927154

GASKET,0.38mm Thk

Gasket , Manifold

4шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

8шт.

A77415

COVER

Consists Of: Ref. 4 - 6 INTAKE

1шт.

4

J904340

COVER

INTAKE

1шт.

Part of cover P/N A77415

1шт.

5

J907185

PLUG

INTAKE

1шт.

Part of cover P/N A77415

1шт.

6

J906773

WASHER

INTAKE

1шт.

Part of cover P/N A77415

1шт.

7

J931605

BOLT

INTAKE

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Intake

10шт.

Выбрано товаров: 0
