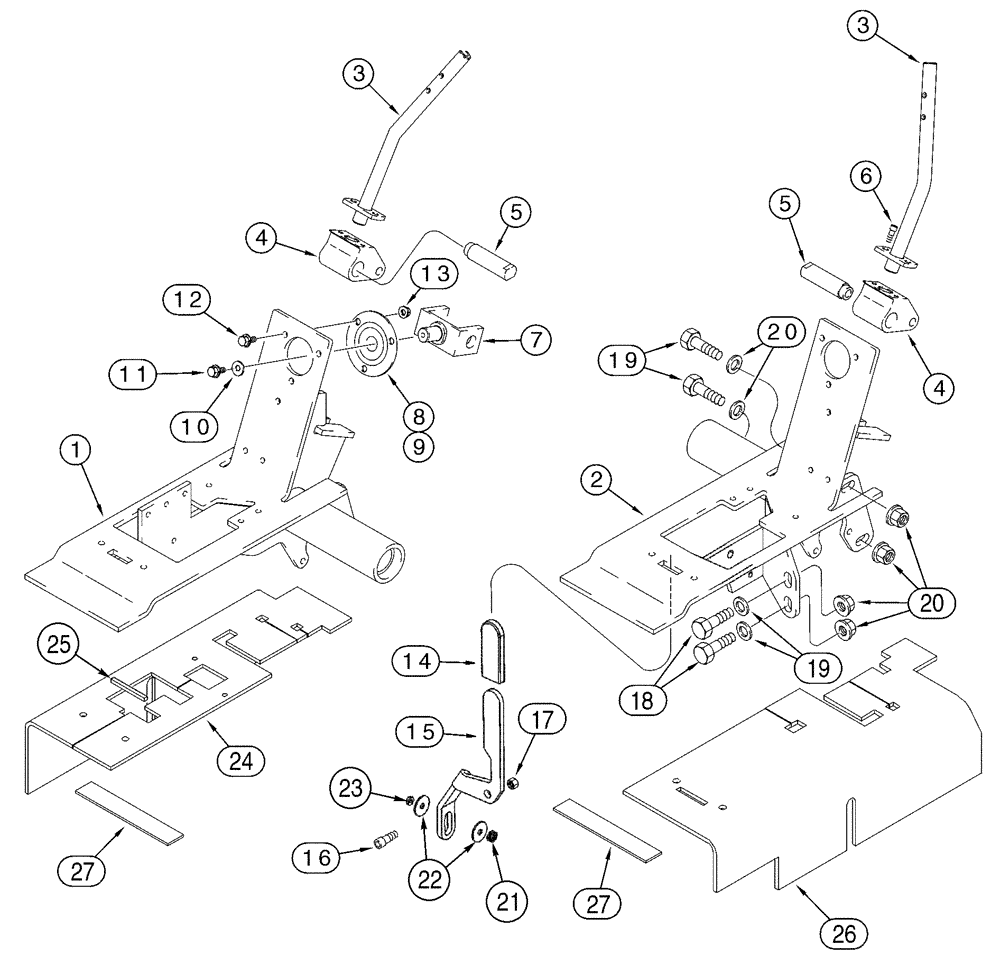

Запчасти Case IH 85XT (09-14) - CTRLS LOADER & GROUND DRIVE, MODELS WITHOUT FOOT CTRLS, N. AMERICAN JAF0352234-, EURO. JAF0352715- (09) - CHASSIS

1

186308A2

SUPPORT

Left-Hand

1шт.

2

179492A5

SUPPORT

Right-Hand

1шт.

3

275024A1

LEVER

For Attaching Parts, See Figures 09-13, 09-15

2шт.

4

238357A3

PIVOT

2шт.

5

237774A1

SHAFT

2шт.

6

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

4шт.

7

237772A1

SUPPORT

2шт.

8

112380A1

BEARING ASSY

Incl Ref 24

4шт.

9

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

1шт.

10

396-41028

WASHER,.281" x 7/8" x .098", HDN

2шт.

11

845-6016

BOLT,Hex Flg, M6 x 16mm, Cl 8.8

M6 x 16

2шт.

12

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

13

825-5146

SERRATED NUT,M6, Flg Ser

6шт.

14

D126613

HANDLE

1шт.

15

418663A2

LEVER

Replaces: 418663A1

1шт.

16

121-251

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 3/8"

1шт.

16a

278332A1

SPRING WASHER

If Used, Not Illustrated

1шт.

17

230-4215

NUT,5/16"-18, GA

1шт.

18

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

20

825-51410

FLANGE NUT,M10, Flg Ser

8шт.

21

418585A1

COIL SPRING

1шт.

22

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

23

225-14210

NUT,#10-32

2шт.

24

308877A1

PAD

Left-Hand Console, Models With Deluxe Heater and Air Conditioning

1шт.

Part of bearing P/N 112380A1

1шт.

25

313278A1

BAND

Lock Slot Cover, 50 mm (2 in.), Models With Deluxe Heater and Air Conditioning

1шт.

26

308879A1

PAD

Right-Hand Console, Models With Deluxe Heater and Air Conditioning

1шт.

27

313323A1

SEAL

Console, Models With Deluxe Heater and Air Conditioning

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
