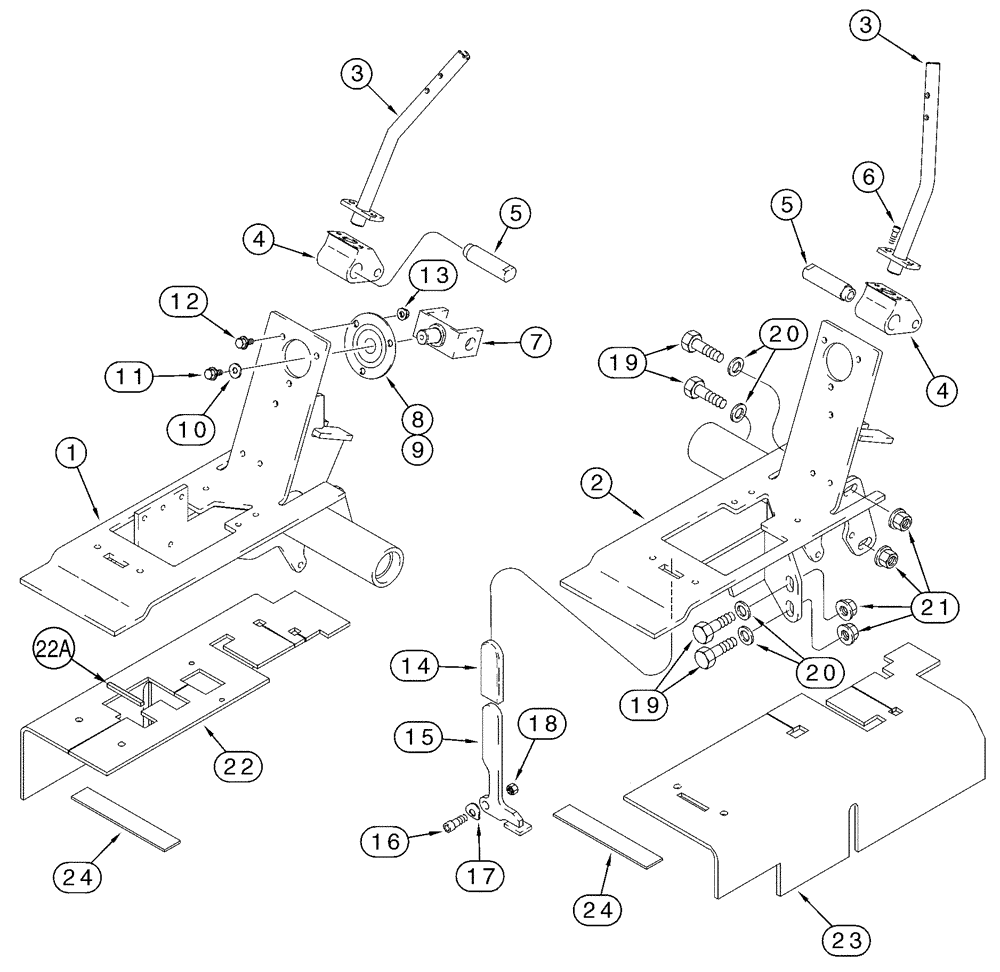

Запчасти Case IH 85XT (09-13) - CONTROLS LOADER & GROUND DRIVE, MODELS WITHOUT FOOT CONTROLS (09) - CHASSIS

1

186308A2

SUPPORT

Left-Hand

1шт.

2

179492A4

SUPPORT

Right-Hand, Replaces: 179492A3

1шт.

3

275024A1

LEVER

For Attaching Parts, See Figures 09-14, 09-15

2шт.

4

238357A3

PIVOT

2шт.

5

237774A1

SHAFT

2шт.

6

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

4шт.

7

237772A1

SUPPORT

2шт.

8

112380A1

BEARING ASSY

Incl Ref 24

4шт.

9

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Replaces: 102776A1

1шт.

10

396-41028

WASHER,.281" x 7/8" x .098", HDN

2шт.

11

845-6016

BOLT,Hex Flg, M6 x 16mm, Cl 8.8

M6 x 16

2шт.

12

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

13

825-5146

SERRATED NUT,M6, Flg Ser

6шт.

14

D126613

HANDLE

1шт.

15

246912A2

LEVER

1шт.

16

121-251

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 3/8"

1шт.

17

278332A1

SPRING WASHER

1шт.

18

230-4215

NUT,5/16"-18, GA

1шт.

19

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

21

825-51410

FLANGE NUT,M10, Flg Ser

8шт.

22

308877A1

PAD

Left-Hand Console, Models With Deluxe Heater and Air Conditioning

1шт.

22a

313278A1

BAND

Lock Slot Cover, 50 mm (2 in.), Models With Deluxe Heater and Air Conditioning

1шт.

23

308879A1

PAD

Right-Hand Console, Models With Deluxe Heater and Air Conditioning

1шт.

24

313323A1

SEAL

Console, Models With Deluxe Heater and Air Conditioning

2шт.

Part of bearing P/N 112380A1

1шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
