(09-10) - PLATES, FLOOR, MODELS W/O HEATER

Запчасти Case IH 85XT (09-10) - PLATES, FLOOR, MODELS W/O HEATER (09) - CHASSIS

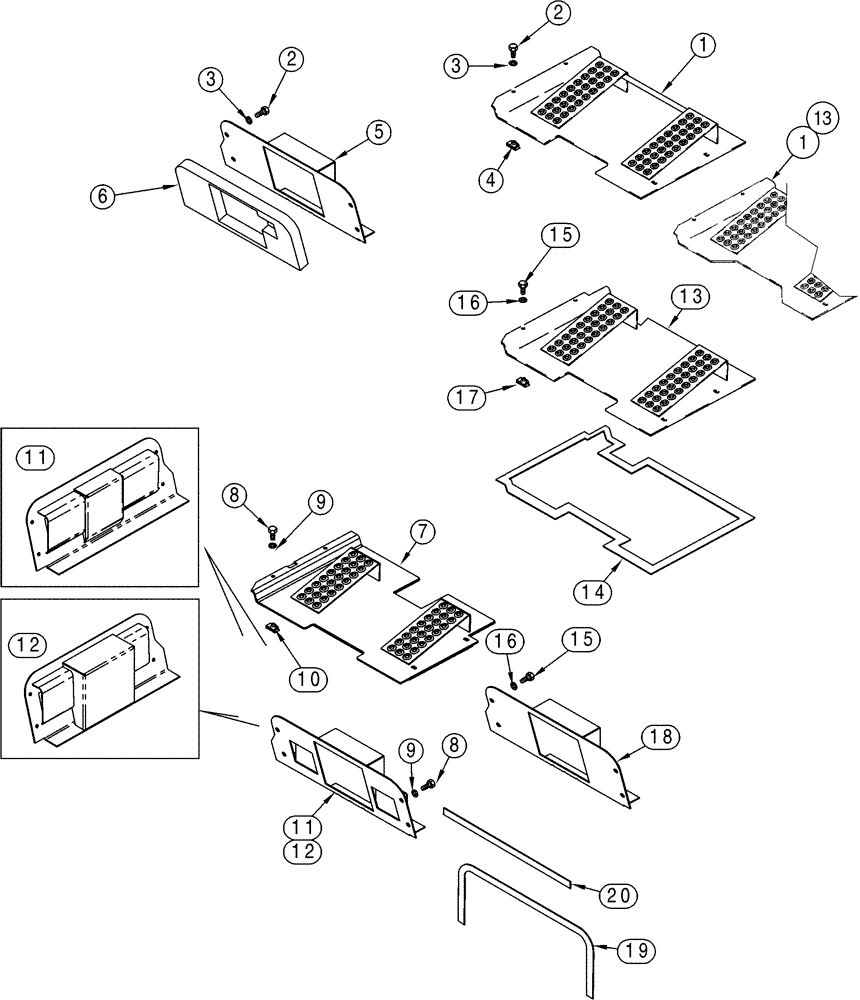

Схема запчастей Case IH 85XT - (09-10) - PLATES, FLOOR, MODELS W/O HEATER (09) - CHASSIS
10
9
14
13
4
11
8
2
13
1
7
2
9
17
6
11
20
15
12
3
15
8
19
5
1
16
16
12
3
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

280841A1

FLOOR

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

4

122158A1

NUT,M8, U

4шт.

5

279989A2

COVER

Heel Plate, Replaces: 279989A1

1шт.

6

283297A1

INSULATOR

If Equipped

1шт.

7

279112A1

FLOOR

Models With Floor Heater

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Models with Floor Heater

8шт.

10

122158A1

NUT,M8, U

Models With Floor Heater

4шт.

11

247680A2

LARGE PLATE

PLATE, LARGE Heel Plate, Models With Floor Heater, Used With Ref. 1 (9-119)

1шт.

12

304973A2

COVER

Heel Plate, Models With Floor Heater, Used With Ref. 21 (9-121)

1шт.

13

294438A1

FLOOR

Models With Deluxe Heater and Air Conditioning

1шт.

14

313320A1

SEAL

Models With Deluxe Heater and Air Conditioning

1шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Models with Deluxe Heater and Air Conditioning

8шт.

17

122158A1

NUT,M8, U

Models With Deluxe Heater and Air Conditioning

4шт.

18

279989A2

COVER

Heel Plate, Replaces: 279989A1, Models With Deluxe Heater and Air Conditioning

1шт.

19

313319A1

SEAL

Models With Deluxe Heater and Air Conditioning

1шт.

20

313321A1

SEAL

560 mm (22 in.), Models With Deluxe Heater and Air Conditioning

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Models with Floor Heater

8шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Models with Deluxe Heater and Air Conditioning

8шт.
