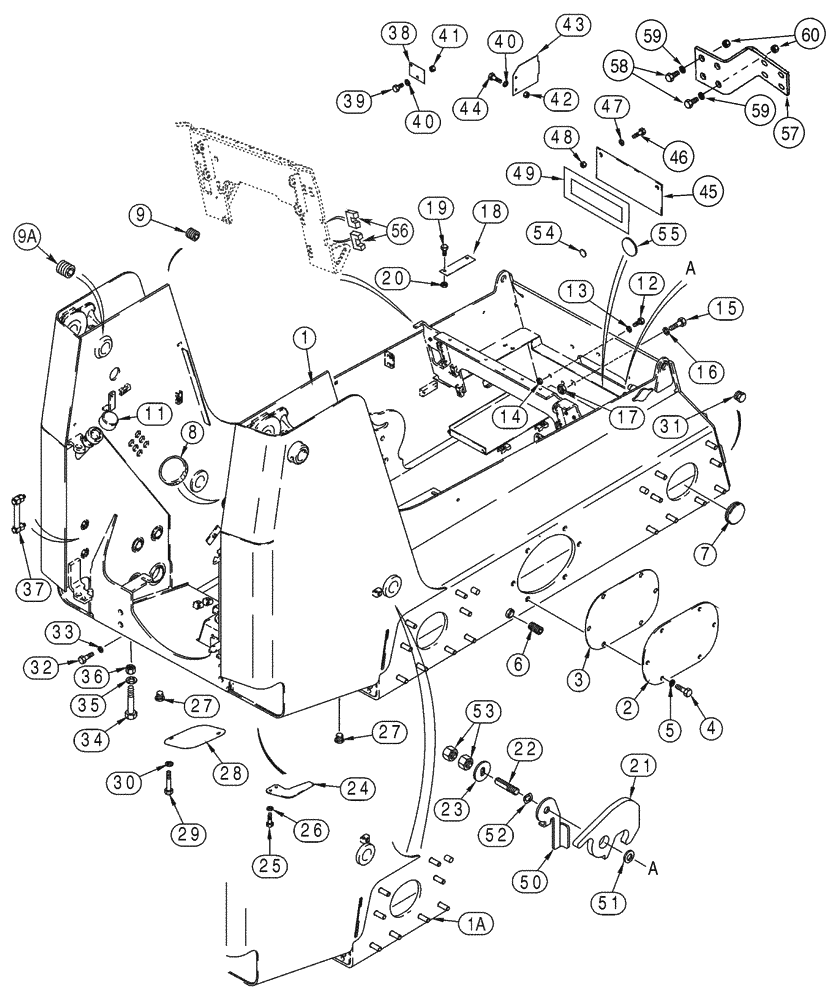

Запчасти Case IH 85XT (09-09) - CHASSIS (09) - CHASSIS

1

190991A3

CHASSIS

Order From Machinery Price List, Replaces: 190991A2, North American Models -JAF0352233, European Models -JAF0352714

1шт.

1a

428259A1

Order From Machinery Price List, North American Models JAF0352234-, European Models JAF0352715-

1шт.

2

139754A1

LARGE PLATE

PLATE, LARGE

2шт.

3

195402A2

GASKET,3.2mm Thk

2шт.

4

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

12шт.

5

254547A1

PACKING RING

12шт.

6

217-494

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

3/4 PT

2шт.

7

220061A2

PLUG

Axle Access, 3 in.

4шт.

8

D93757

CAP

Fuel Filler

1шт.

9

86625135

PLUG,1" - 11-1/2 NPT

Hydraulic Reservoir

1шт.

9a

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

Hydraulic Reservoir

1шт.

11

257448A1

CAP

Oil Filler, Includes: Ref. 11A

1шт.

11a

292259A1

SEAL

Filler Cap, Not Illustrated

1шт.

Part of cap P/N 257448A1

1шт.

12

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Optional Equipment Mounting

8шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

14

832-41310

NUT,M10 x 1.5, Cl 10

8шт.

15

614-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

Optional equipment mounting

2шт.

16

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

17

832-10416

NUT,M16 x 2, Cl 8

2шт.

18

254904A1

COVER

If Used

1шт.

19

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

21

294910A1

LATCH

ROPS

1шт.

22

294943A1

STUD

1шт.

23

294967A1

WASHER

1шт.

24

189422A1

COVER

2шт.

25

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

26

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

27

86625135

PLUG,1" - 11-1/2 NPT

2шт.

28

247609A1

COVER

3шт.

29

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Replaces 627-12035, 35 mm long bolt used on some models

6шт.

30

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

31

A50096

VALVE

Pressure Relief Valve Plug; If Used

2шт.

32

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

33

232287A1

PACKING RING

2шт.

34

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

2шт.

35

495-11081

WASHER,3/4", SAE

2шт.

36

832-41320

NUT,M20 x 2.5, Cl 10

M20; 10.9

2шт.

37

H435669

GAUGE

1шт.

38

280528A1

PLATE

If Used

1шт.

39

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

40

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

41

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

42

833-40006

SPRING NUT,M6, U

M6

2шт.

43

279409A2

SHEET

If Used

1шт.

44

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

45

242094A1

PLATE ASSY.

If Used

1шт.

46

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

47

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

48

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

49

313322A1

SEAL

Cover Plate, Models With Deluxe Heater and Air Conditioning

1шт.

50

294911A1

HOOK

1шт.

51

495-11081

WASHER,3/4", SAE

1шт.

52

278332A1

SPRING WASHER

1шт.

53

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

54

299274A1

COVER

25 mm (1 in.), Models With Heaters and Air Conditioning

1шт.

55

311212A1

COVER

70 mm dia., Models With Deluxe Heater and Air Conditioning

1шт.

56

313231A1

BAND

Cable, 30 mm (1-1/4 in.), Models With Deluxe Heater and Air Conditioning

2шт.

57

426613A1

BRACKET

Oil Filter, Models With Deluxe Heater and Air Conditioning

1шт.

58

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

59

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

60

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

61

254799A1

STUD

Axle Mounting Stud

32шт.
