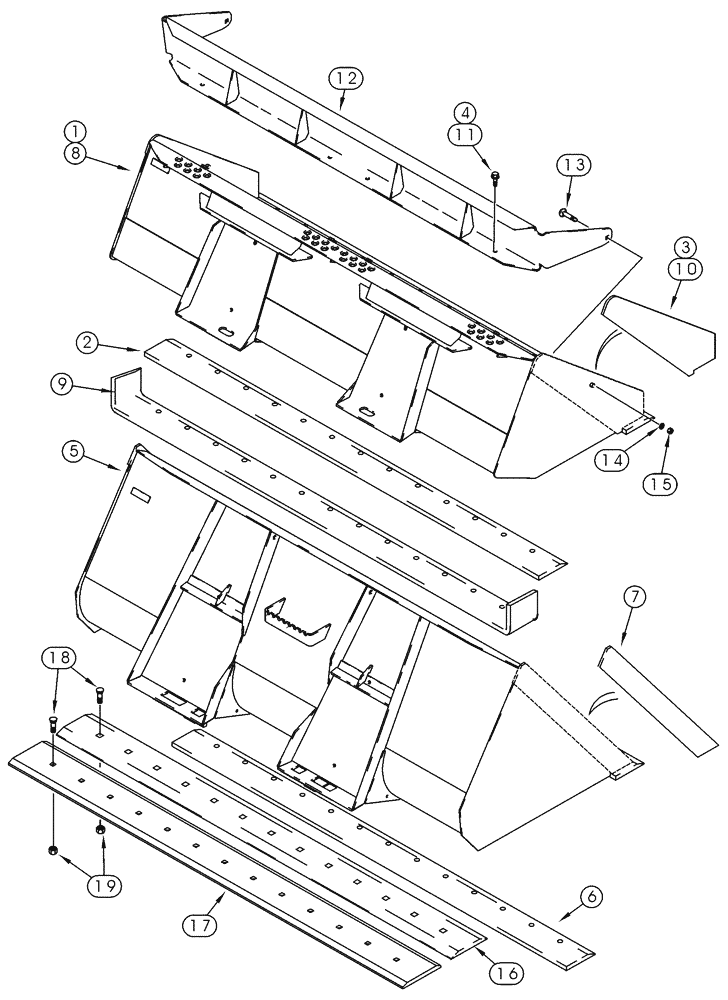

Запчасти Case IH 85XT (09-07) - BUCKETS - LOADER, 2083 MM (82") WIDE BUCKET (09) - CHASSIS

1

192538A2

BUCKET

Machinery Item, Includes: Ref. 2 and 3

1шт.

2

183948A2

EDGE, CUTTING

Welded On

1шт.

Part of bucket P/N 192538A2

1шт.

3

245109A2

EDGE, CUTTING

Side, Welded On

2шт.

Part of bucket P/N 192538A2

1шт.

4

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

4шт.

5

190079A1

BUCKET

Light Material, Includes: Ref. 6 and 7

1шт.

6

183948A2

EDGE, CUTTING

Welded On, Light Material

1шт.

Part of P/N 190079A1

1шт.

7

H438935

EDGE, CUTTING

Side, Welded On, Light Material

2шт.

Part of P/N 190079A1

1шт.

8

245077A2

BUCKET

2083 mm (82 in.), Machinery Item, Heavy Duty, Includes: Ref. 9 - 11

1шт.

9

245107A2

EDGE, CUTTING

Welded On, Heavy Duty

1шт.

Part of bucket P/N 245077A2

1шт.

10

245109A2

EDGE, CUTTING

Side, Welded On, Heavy Duty

2шт.

Part of bucket P/N 245077A2

1шт.

11

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

Heavy Duty

4шт.

Part of bucket P/N 245077A2

1шт.

12

192972A2

RISER

Extension, Used With 192538A2, 245077A2

1шт.

13

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

12 x 35 mm, Extension

2шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, Extension

2шт.

15

829-1412

NUT,M12, Cl 10.9

Extension

2шт.

16

299336A1

EDGE, CUTTING

Ten-Hole Pattern, 2083 mm (82 in.), Extension

1шт.

Used with bolt P/N 20-21236

1шт.

Used with nut P/N 329-1012

1шт.

17

248932A1

EDGE, CUTTING

Thirteen-Hole Pattern, 2083 mm (82 in.), Extension

1шт.

Used with bolt P/N 420-21036

1шт.

Used with nut P/N 329-1010

1шт.

18

20-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

Used with 16, Extension

10шт.

18

420-21036

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

Used with Ref. 17, Extension

13шт.

19

329-1012

NUT,3/4"-10, G8

Used with Ref. 16, Extension

10шт.

19

329-1010

NUT,5/8"-11, G8

Used with Ref. 17, Extension

13шт.
