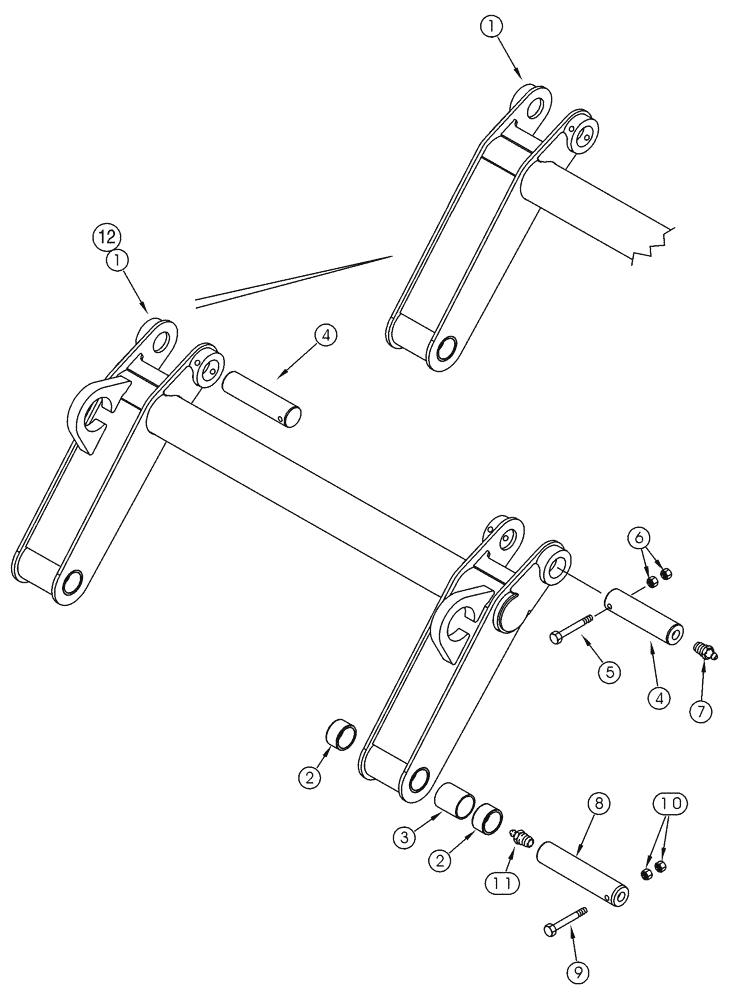

Запчасти Case IH 85XT (09-03) - ARM, LOADER H-FRAME (09) - CHASSIS

1

139246A1

ARM ASSY.

Models Without Air Conditioning, May Or May Not Have Lug Welded To Arm Assembly, Includes: Ref. 2 and 3

1шт.

Part of arm/lifting device P/N 357551A1

1шт.

2

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

4шт.

Part of arm assy. P/N 139246A1

1шт.

3

231646A1

SPACER

2шт.

Part of arm assy. P/N 139246A1

1шт.

4

139086A1

PIN,45mm OD x 176mm L

2шт.

5

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

139087A1

PIN,45mm OD x 212mm L

2шт.

9

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

12

357551A1

ARM/LIFTING DEVICE

Models With Deluxe Heater and Air Conditioning, Includes: Lugs, Which Are Not Serviced Separately, Includes: 139246A1, Ref. 1

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
