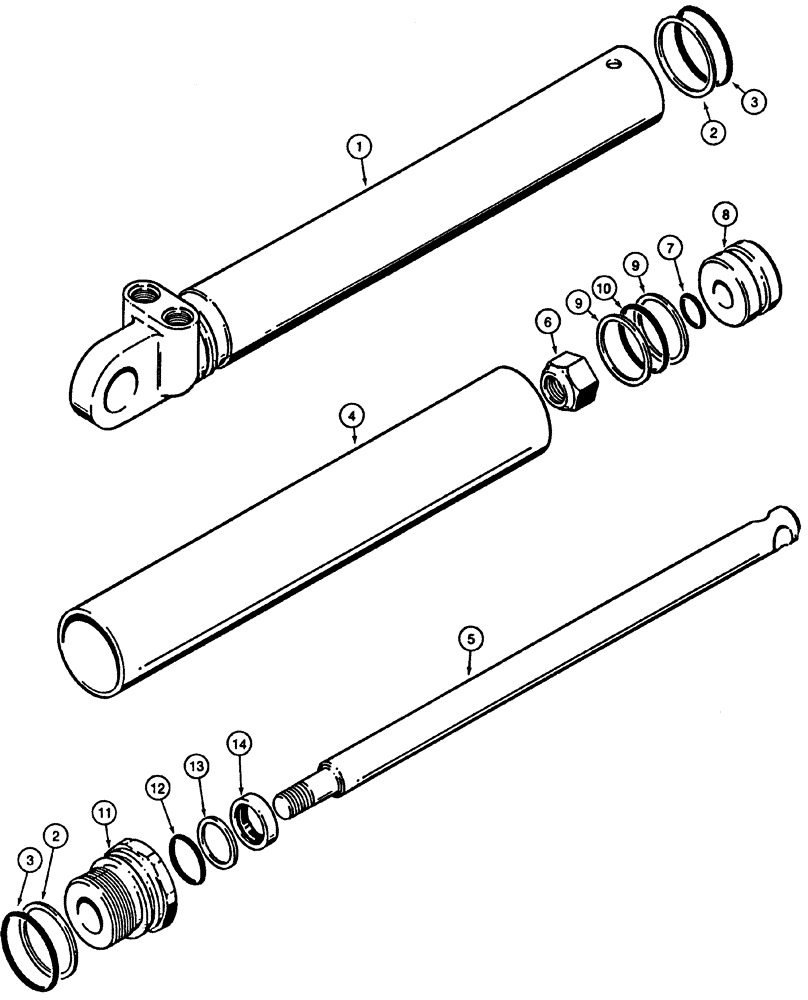

Запчасти Case IH 85XT (08-57) - CYLINDER ASSY STABILIZER, VERTICAL NORTH AMERICA, D125 BACKHOE (08) - HYDRAULICS

H514117

CYLINDER BLOCK

Stabilizer, 51 ID x 305 mm strk, Consists Of: Ref. 1 - 14

2шт.

1

H52654

HYD CYL SLEEVE

Outer

1шт.

2

NSS

NOT SOLD SEPARAT

RING Backup

2шт.

Part of kit P/N H52704

1шт.

3

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

Part of kit P/N H52704

1шт.

4

H52662

HYD CYL SLEEVE

Inner

1шт.

5

H52688

ROD

1шт.

6

131-1121

LOCK NUT,Hex, 5/8" - 18, Gr A

1шт.

7

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

Part of kit P/N H52704

1шт.

8

H52670

PISTON ASSY.

1шт.

9

H754614

WASHER

2шт.

Part of kit P/N H52704

1шт.

10

238-5334

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

1шт.

Part of kit P/N H52704

1шт.

11

H52696

BEARING

1шт.

12

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

Part of kit P/N H52704

1шт.

13

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

Part of kit P/N H52704

1шт.

14

H220475

WIPER SEAL

Replaces: H746297

1шт.

H52704

KIT

Consists Of: Ref. 2, 3, 7, 9, 10, 12 and 13

1шт.
