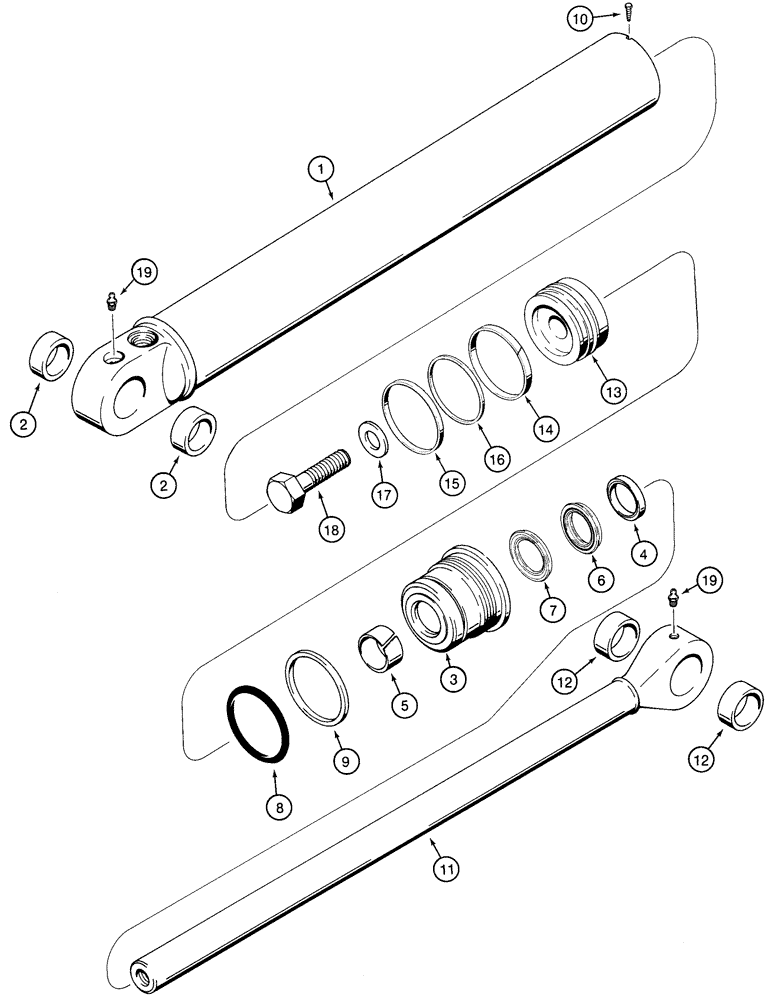

Запчасти Case IH 85XT (08-53) - CYLINDER ASSY BACKHOE BOOM NORTH AMERICA, D125 BACKHOE (08) - HYDRAULICS

1346450C2

CYLINDER ASSY.

Boom, 76 ID x 551 mm strk, See Figure 08-44, No Longer Available, Order 305352A1, Consists Of: Ref. 1 - 19

1шт.

1346451C1

TUBE

Consists Of: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE

1шт.

Part of hydraulic cylinder sleeve P/N 1346451C1

1шт.

2

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

1-1/2 x 1-7/8 x 11/16

2шт.

Part of hydraulic cylinder sleeve P/N 1346451C1

1шт.

NSS

NOT SOLD SEPARAT

GLAND Packing, Consists Of: Ref. 3 - 9

1шт.

3

1346417C1

GLAND

1шт.

Part of packing gland

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

Part of packing gland

1шт.

Part of gasket kit P/N 1543256C1

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

Part of packing gland

1шт.

Part of gasket kit P/N 1543256C1

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, Order 1543256C1

1шт.

Part of packing gland

1шт.

Part of gasket kit P/N 1543256C1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, Order 1543256C1

1шт.

Part of packing gland

1шт.

Part of gasket kit P/N 1543256C1

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

Part of packing gland

1шт.

Part of gasket kit P/N 1543256C1

1шт.

9

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

Part of packing gland

1шт.

Part of gasket kit P/N 1543256C1

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

1346455C2

PISTON ROD

38 mm (1-1/2 in.) dia., Consists Of: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

ROD

1шт.

Part of piston rod P/N 1346455C2

1шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

1-1/2 x 1-7/8 x 11/16

2шт.

Part of piston rod P/N 1346455C2

1шт.

13

G108518

PISTON

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

Part of gasket kit P/N 1543256C1

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

Part of gasket kit P/N 1543256C1

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

Part of gasket kit P/N 1543256C1

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Consists of Ref 4 - 9, 14 - 16

1шт.

305352A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke

Boom, 76 ID x 551 mm strk, Consists Of: Ref. 1 - 19

1шт.

1346451C1

TUBE

Consists Of: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE

1шт.

Part of hydraulic cylinder sleeve P/N 1346451C1

1шт.

2

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

1-1/2 x 1-7/8 x 11/16

2шт.

Part of hydraulic cylinder sleeve P/N 1346451C1

1шт.

NSS

NOT SOLD SEPARAT

GLAND Packing, Consists Of: Ref. 3 - 9

1шт.

3

1346417C1

GLAND

1шт.

Part of packing gland

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

Part of packing gland

1шт.

Part of gasket kit P/N 1543256C1

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

Part of packing gland

1шт.

Part of gasket kit P/N 1543256C1

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, Order 1543256C1

1шт.

Part of packing gland

1шт.

Part of gasket kit P/N 1543256C1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, Order 1543256C1

1шт.

Part of packing gland

1шт.

Part of gasket kit P/N 1543256C1

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

Part of packing gland

1шт.

Part of gasket kit P/N 1543256C1

1шт.

9

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

Part of packing gland

1шт.

Part of gasket kit P/N 1543256C1

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

305353A1

ROD ASSY.

38 mm (1-1/2 in.) dia., Consists Of: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

ROD

1шт.

Part of rod assy. P/N 305353A1

1шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

1-1/2 x 1-7/8 x 11/16

2шт.

Part of rod assy. P/N 305353A1

1шт.

13

305356A1

PISTON

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

Part of gasket kit P/N 1543256C1

1шт.

15

G100443

SEAL,67.9mm ID x 77.1mm OD x 6.8mm Thk

1шт.

Part of gasket kit P/N 1543256C1

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

Part of gasket kit P/N 1543256C1

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

18

28-1440

BOLT,Hex, 7/8" - 14 x 2-1/2", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Consists of Ref 4 - 9, 14 - 16

1шт.
