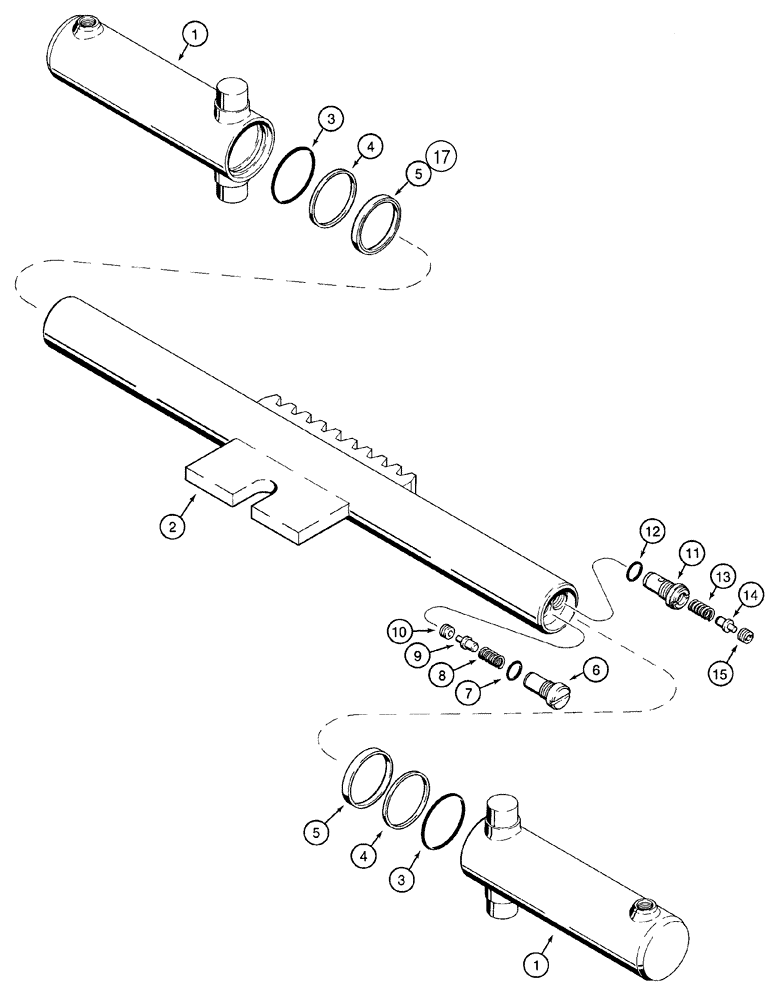

Запчасти Case IH 85XT (08-52) - CYLINDER ASSY BACKHOE SWING NORTH AMERICA, D125 BACKHOE (08) - HYDRAULICS

H673149

CYLINDER ASSY.

Swing, 70 ID x 254 mm strk, No Longer Available, Order 379623A1, Consists Of: Ref. 1 - 15

1шт.

Used with seal assy. P/N H215202

1шт.

Used with washer P/N H754606

1шт.

Used with O-ring P/N H743591

1шт.

Used rod P/N H439097

1шт.

Used with sleeve cylinder P/N H439098

1шт.

Used with seal assy. P/N H53041

1шт.

379623A1

CYLINDER ASSY.,Double Acting, 60.8mm Rod, 254mm Stroke

Swing, 70 ID x 254 mm strk, Consists Of: Ref. 1, 2, 6 - 17

1шт.

Used with piston rod P/N 398163A1

1шт.

Used with tube P/N 398164A1

1шт.

Used with kit P/N 398166A1

1шт.

Used with seal

1шт.

Used with U-cup seal

1шт.

1

H439098

BARREL

Used With H673149

2шт.

Part of cylinder assy. P/N 379623A1

1шт.

1

398164A1

TUBE

Used With 379623A1

2шт.

Part of cylinder assy. P/N 379623A1

1шт.

2

H439097

ROD

Used With H673149

1шт.

Part of cylinder assy. P/N 379623A1

1шт.

2

398163A1

PISTON ROD

Used With 379623A1

1шт.

Part of cylinder assy. P/N 379623A1

1шт.

3

H743591

O-RING

Used With H673149

2шт.

Part of seal assy. P/N H53041

1шт.

4

H754606

WASHER

Used With H673149

2шт.

Part of seal assy. P/N H53041

1шт.

5

H215202

SEAL ASSY.

Used With H673149

2шт.

Part of seal assy. P/N H53041

1шт.

H53033

LOCK VALVE

Consists Of: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

BODY

1шт.

Part of cylinder assy. P/N 379623A1

1шт.

Part of valve lock P/N H53033

1шт.

7

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

Part of cylinder assy. P/N 379623A1

1шт.

Part of valve lock P/N H53033

1шт.

Part of seal assy. P/N H53041

1шт.

8

F37883

SPRING

1шт.

Part of cylinder assy. P/N 379623A1

1шт.

Part of valve lock P/N H53033

1шт.

9

H138362

SPOOL

1шт.

Part of cylinder assy. P/N 379623A1

1шт.

Part of valve lock P/N H53033

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT

1шт.

Part of cylinder assy. P/N 379623A1

1шт.

Part of valve lock P/N H53033

1шт.

H53025

LOCK VALVE

Consists Of: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

Part of cylinder assy. P/N 379623A1

1шт.

Part of valve lock P/N H53025

1шт.

12

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

Part of cylinder assy. P/N 379623A1

1шт.

Part of valve lock P/N H53025

1шт.

Part of seal assy. P/N H53041

1шт.

13

F37883

SPRING

1шт.

Part of cylinder assy. P/N 379623A1

1шт.

Part of valve lock P/N H53025

1шт.

14

H138362

SPOOL

1шт.

Part of cylinder assy. P/N 379623A1

1шт.

Part of valve lock P/N H53025

1шт.

15

NSS

NOT SOLD SEPARAT

SEAT

1шт.

Part of cylinder assy. P/N 379623A1

1шт.

Part of valve lock P/N H53025

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL U-Cup, Used With 379623A1, Order 398166A1, Not Illustrated

2шт.

Part of cylinder assy. P/N 379623A1

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL, Used With 379623A1, Order 398166A1

2шт.

Part of cylinder assy. P/N 379623A1

1шт.

H53041

SEAL ASSY.

Used With H673149, Consists Of: Ref. 3, 4, 5, 7 and 12

1шт.

398166A1

KIT

Used With 379623A1

1шт.
