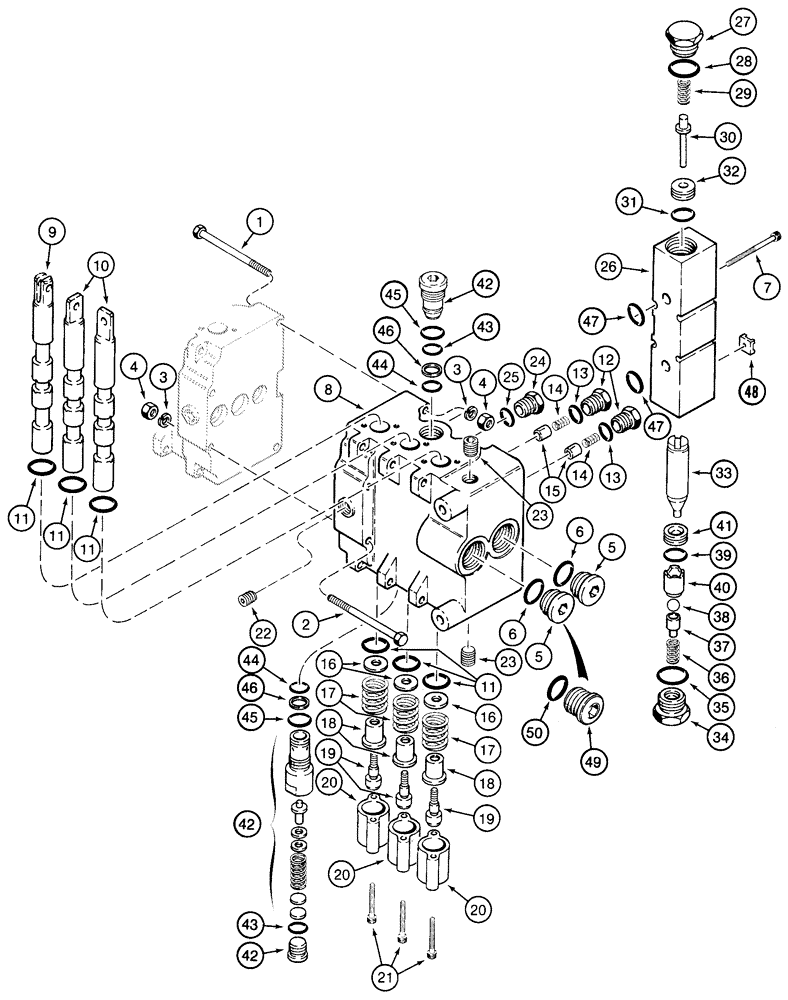

Запчасти Case IH 85XT (08-51) - VALVE, CONTROL BACKHOE NORTH AMERICA, D125 BACKHOE, OUTLET SECTION (08) - HYDRAULICS

H674500

VALVE

Backhoe, Also Includes 08-38 - 08-50, Consists Of: Ref. 1 - 25

1шт.

1

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

2шт.

Part of valve P/N H674500

1шт.

2

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

Part of valve P/N H674500

1шт.

3

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

Part of valve P/N H674500

1шт.

4

425-114

NUT,1/4"-28, G5

4шт.

Part of valve P/N H674500

1шт.

5

86625138

PLUG,7/18" - 14

Includes Ref. 6

2шт.

Part of valve P/N H674500

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of plug P/N 218-5211

1шт.

Part of valve P/N H674500

1шт.

7

62-31040

HEX SOC SCREW,#10 - 32 x 2 1/2"

4шт.

Part of valve P/N H674500

1шт.

H674528

HYD VALVE SECTION

Consists Of: Ref. 8 - 25

1шт.

8

NSS

NOT SOLD SEPARAT

BODY

1шт.

Part of valve P/N H674500

1шт.

Part of valve P/N H674528

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

Part of valve P/N H674500

1шт.

Part of valve P/N H674528

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL

2шт.

Part of valve P/N H674500

1шт.

Part of valve P/N H674528

1шт.

11

H438030

O-RING

5/8 x 13/16

6шт.

Part of valve P/N H674500

1шт.

Part of valve P/N H674528

1шт.

H438024

SET

Consists Of: Ref. 12 - 15

2шт.

12

H438231

PLUG

1шт.

Part of valve P/N H674500

1шт.

Part of set P/N H438024

1шт.

Part of valve P/N H674528

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING

1шт.

Part of valve P/N H674500

1шт.

Part of set P/N H438024

1шт.

Part of valve P/N H674528

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET Valve

1шт.

Part of valve P/N H674500

1шт.

Part of set P/N H438024

1шт.

Part of valve P/N H674528

1шт.

H438021

SET

Consists Of: Ref. 16 - 21

3шт.

16

NSS

NOT SOLD SEPARAT

WASHER

1шт.

Part of valve P/N H674500

1шт.

Part of set P/N H438021

1шт.

Part of valve P/N H674528

1шт.

17

N9539

TENSION SPRING

1шт.

Part of valve P/N H674500

1шт.

Part of set P/N H438021

1шт.

Part of valve P/N H674528

1шт.

18

NSS

NOT SOLD SEPARAT

SPACER

1шт.

Part of valve P/N H674500

1шт.

Part of set P/N H438021

1шт.

Part of valve P/N H674528

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT

1шт.

Part of valve P/N H674500

1шт.

Part of set P/N H438021

1шт.

Part of valve P/N H674528

1шт.

20

NSS

NOT SOLD SEPARAT

CAP

1шт.

Part of valve P/N H674500

1шт.

Part of set P/N H438021

1шт.

Part of valve P/N H674528

1шт.

21

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

2шт.

Part of valve P/N H674500

1шт.

Part of set P/N H438021

1шт.

Part of valve P/N H674528

1шт.

22

H438960

PLUG

1шт.

Part of valve P/N H674500

1шт.

Part of valve P/N H674528

1шт.

23

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

Part of valve P/N H674500

1шт.

Part of valve P/N H674528

1шт.

24

H438231

PLUG

Includes: Ref. 25

1шт.

Part of valve P/N H674500

1шт.

Part of valve P/N H674528

1шт.

100405A2

BLOCK ASSY.

Consists Of: Ref. 26 - 41

1шт.

26

NSS

NOT SOLD SEPARAT

BODY

1шт.

Part of block assy. P/N 100405A2

1шт.

111935A1

SET OF PARTS

Consists Of: Ref. 27 - 33

1шт.

27

113751A1

PLUG

1шт.

Part of block assy. P/N 100405A2

1шт.

Part of set of parts P/N 111935A1

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of block assy. P/N 100405A2

1шт.

Part of set of parts P/N 111935A1

1шт.

29

113747A1

SPRING

1шт.

Part of block assy. P/N 100405A2

1шт.

Part of set of parts P/N 111935A1

1шт.

30

H438334

VALVE

1шт.

Part of block assy. P/N 100405A2

1шт.

Part of set of parts P/N 111935A1

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of block assy. P/N 100405A2

1шт.

Part of set of parts P/N 111935A1

1шт.

32

113750A1

SEAT

1шт.

Part of block assy. P/N 100405A2

1шт.

Part of set of parts P/N 111935A1

1шт.

33

113749A1

PLUNGER

1шт.

Part of block assy. P/N 100405A2

1шт.

Part of set of parts P/N 111935A1

1шт.

34

H438031

PLUG

1шт.

Part of block assy. P/N 100405A2

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of block assy. P/N 100405A2

1шт.

36

102712A1

SPRING

1шт.

Part of block assy. P/N 100405A2

1шт.

37

H438032

SLEEVE VALVE

1шт.

Part of block assy. P/N 100405A2

1шт.

38

113748A1

BALL

1шт.

Part of block assy. P/N 100405A2

1шт.

39

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of block assy. P/N 100405A2

1шт.

40

H438033

CUP

1шт.

Part of block assy. P/N 100405A2

1шт.

41

113746A1

SEAT

1шт.

Part of block assy. P/N 100405A2

1шт.

H438945

VALVE, PRESSURE RELI

EF 3000-3100 psi, Consists Of: Ref. 42 - 46

2шт.

42

NSS

NOT SOLD SEPARAT

VALVE Relief

1шт.

Part of pressure relief valve P/N H438945

1шт.

H674536

O-RING

Consists Of: Ref. 43 - 46

1шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Part of gasket kit P/N H674536

1шт.

Part of pressure relief valve P/N H438945

1шт.

45

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of gasket kit P/N H674536

1шт.

Part of pressure relief valve P/N H438945

1шт.

46

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

Part of gasket kit P/N H674536

1шт.

Part of pressure relief valve P/N H438945

1шт.

47

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

48

H438941

ORIFICE

2.388 mm (0.094 in.)

1шт.

49

H438953

PLUG

If Equipped, Includes: Ref. 50

1шт.

50

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of plug P/N H438953

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of valve P/N H674500

1шт.

Part of set P/N H438024

1шт.

Part of valve P/N H674528

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of valve P/N H674500

1шт.

Part of plug P/N H438231

1шт.

Part of valve P/N H674528

1шт.

43

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of gasket kit P/N H674536

1шт.

Part of pressure relief valve P/N H438945

1шт.
