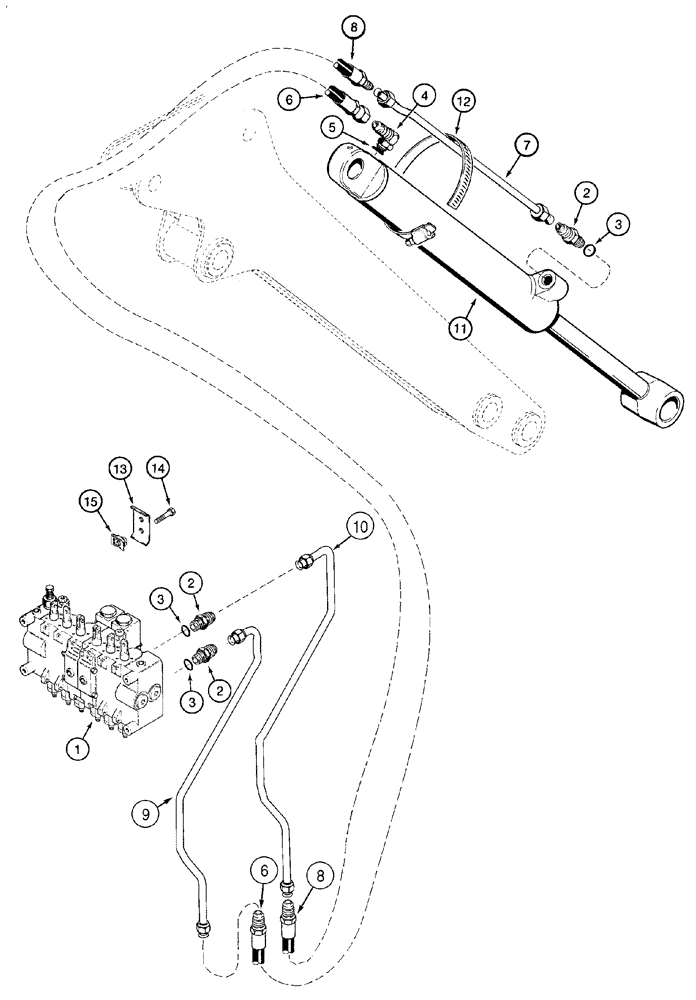

Запчасти Case IH 85XT (08-48) - HYDRAULIC SYSTEM BACKHOE BUCKET CYLINDER NORTH AMERICA, D125 BACKHOE, WITH TUBES AT CONTROL VALVE (08) - HYDRAULICS

1

H674500

VALVE

Backhoe, See Figures 08-38 - 08-51

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5059

1шт.

4

H439269

ELBOW

Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of elbow P/N H439269

1шт.

6

256926A1

HOSE ASSY.

Closed End, 3330 mm (131-1/8 in.)

1шт.

7

H674567

PIPE,12.7 mm OD x 597 mm L

Rod End

1шт.

8

256925A1

HOSE,9.52 mm ID x 3310.00 mm

Rod End

1шт.

9

256140A1

TUBE

Closed End

1шт.

10

256138A1

TUBE

Rod End

1шт.

11

1346397C2

CYLINDER ASSY.

Bucket, 70 ID x 559 mm strk, See Figure 08-55

1шт.

12

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in. dia.

1шт.

13

H45476

CLAMP

2шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

15

H346650

NUT

4шт.
