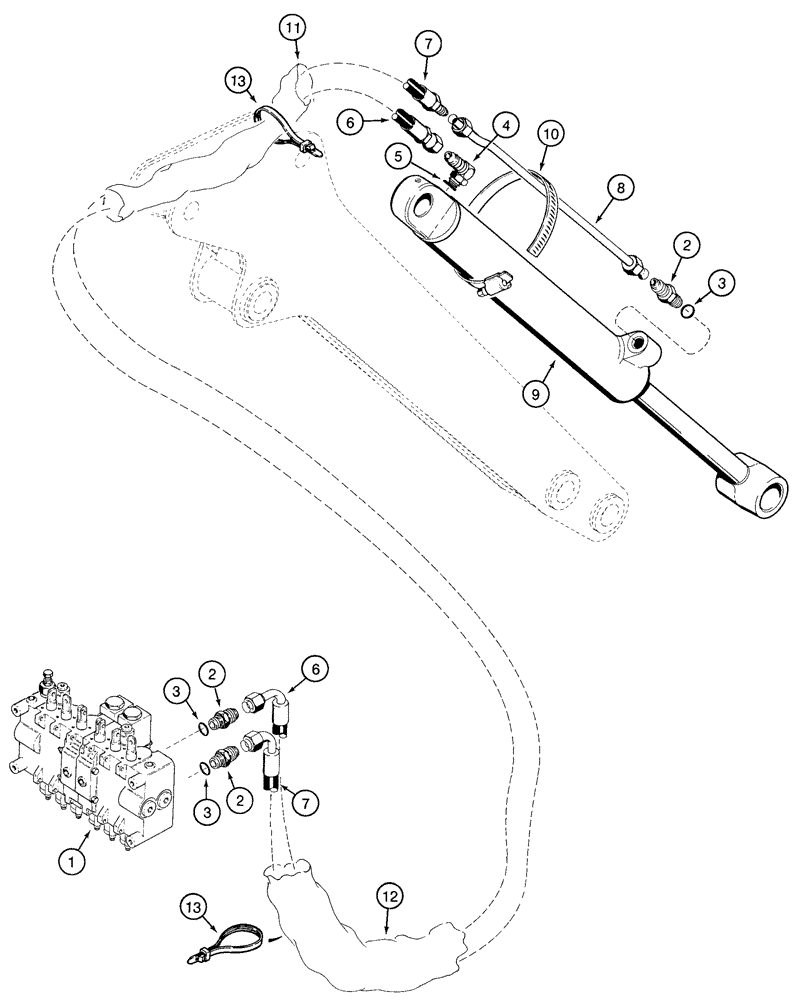

Запчасти Case IH 85XT (08-47) - HYDRAULIC SYSTEM BACKHOE BUCKET CYLINDER NORTH AMERICA, D125 BACKHOE, WITH HOSES AT CONTROL VALVE (08) - HYDRAULICS

1

H674500

VALVE

Backhoe, See Figures 08-38 - 08-51

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5059

1шт.

4

H439269

ELBOW

Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of elbow P/N H439269

1шт.

6

H438685

HOSE

3600 mm (141-7/8 in.)

1шт.

7

H438227

HOSE

3700 mm (145-3/4 in.)

1шт.

8

H674567

PIPE,12.7 mm OD x 597 mm L

1шт.

9

1346397C2

CYLINDER ASSY.

Bucket, 70 ID x 559 mm strk, See Figure 08-55

1шт.

10

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in. dia.

1шт.

11

D132054

SLEEVE

1шт.

12

H439063

SLEEVE

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

3шт.
