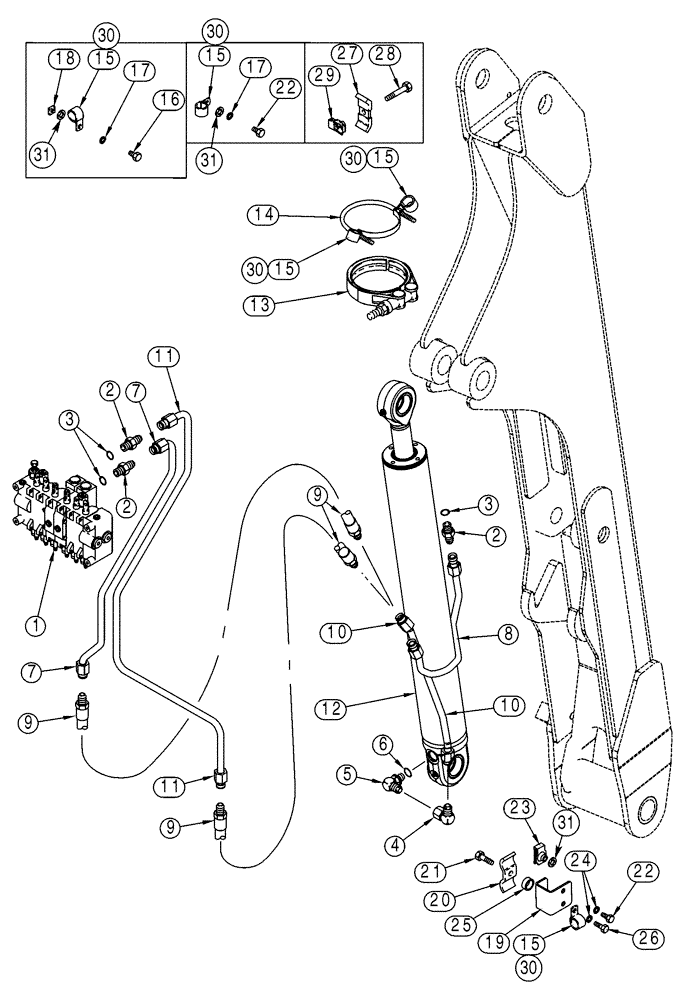

Запчасти Case IH 85XT (08-44) - HYDRAULIC SYSTEM BACKHOE BOOM CYLINDER NORTH AMERICA, D125 BACKHOE, WITH TUBES AT CONTROL VALVE (08) - HYDRAULICS

1

H674500

VALVE

Backhoe, See Figures 08-38 - 08-51

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5059

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

5

H439269

ELBOW

Includes: Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of elbow P/N H439269

1шт.

7

256130A1

TUBE,506, 198 mm Length

Rod End

1шт.

8

256820A3

TUBE,343, 110 mm Length

Rod End

1шт.

9

256930A1

HOSE ASSY.

2300 mm (90-1/2 in.)

2шт.

10

256816A3

TUBE,12 mm ID, 360 mm Length

Closed End

1шт.

11

256132A1

TUBE,675, 290 mm Length

Closed End

1шт.

12

305352A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke

Boom, 76 ID x 551 mm strk, See Figure 08-53

1шт.

13

214-2192

CLAMP,#92, 3.75"-4.06", T-Bolt

3-3/4 - 4-1/16

1шт.

14

304650A1

CLAMP

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

If Used

8шт.

16

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

If Used

2шт.

17

492-11031

LOCK WASHER,5/16"

6шт.

18

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

19

255013A1

SUPPORT

2шт.

20

A12032

CLAMP

2шт.

21

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

23

H346650

NUT

2шт.

24

492-11031

LOCK WASHER,5/16"

2шт.

25

304086A1

SPACER

2шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

27

H45476

CLAMP

2шт.

28

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

29

H346650

NUT

4шт.

30

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

If Used

8шт.

31

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

6шт.
