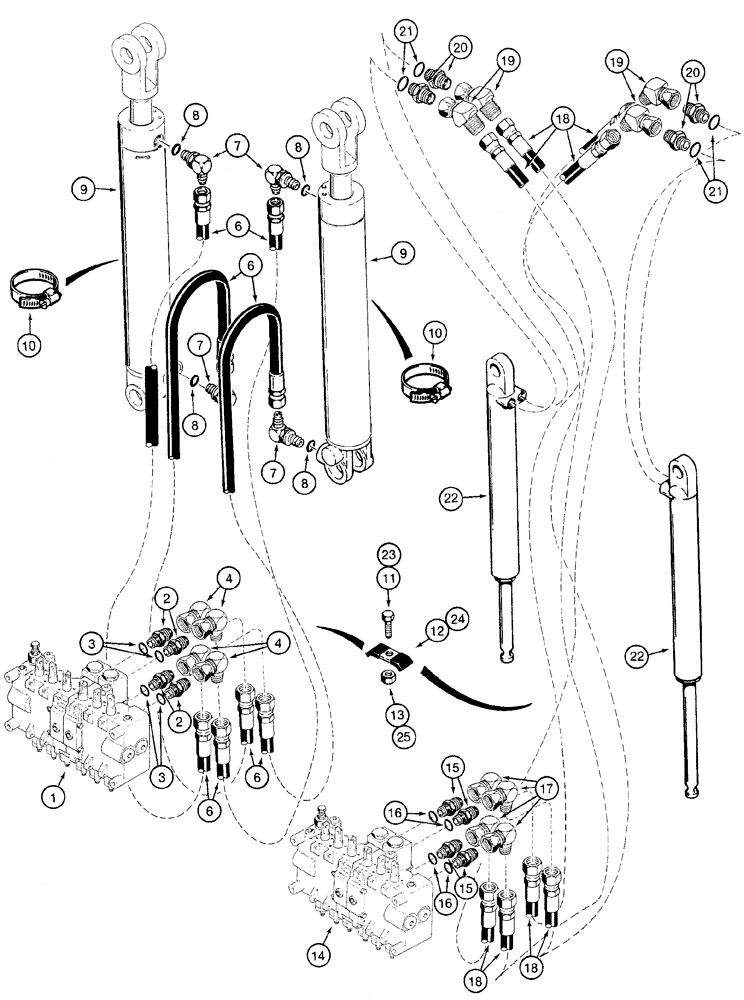

Запчасти Case IH 85XT (08-42) - HYDRAULIC SYSTEM BACKHOE STABILIZER CYLINDER NORTH AMERICA, D125 BACKHOE, FOLD DOWN STABILIZER (08) - HYDRAULICS

1

H674500

VALVE

Backhoe, See Figures 08-38 - 08-51

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 Or, Includes: Ref. 3

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5058

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

4шт.

6

139517C1

HYDRAULIC HOSE

2032 mm (80 in.)

4шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 8

4шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5128

1шт.

9

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

Stabilizer, 76 ID x 406 mm strk, See Figure 08-56

2шт.

10

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in. dia.

2шт.

11

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

12

R17319

CLAMP

2шт.

13

232-4115

LOCK NUT,5/16"-18, GC

2шт.

14

H674500

VALVE

Backhoe, See Figures 08-38 - 08-51, Vertical Stabilizers

1шт.

15

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 Or, Vertical Stabilizers, Includes: Ref. 3

4шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Vertical stabilizers

1шт.

17

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

Vertical Stabilizer

4шт.

18

139517C1

HYDRAULIC HOSE

2032 mm (80 in.), Vertical Stabilizers

4шт.

19

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

Vertical Stabilizers

4шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Vertical Stabilizers, Incl. Ref. 21

4шт.

22

H514117

CYLINDER BLOCK

Stabilizer, Vertical, 51 ID x 305 mm strk, See Figure 08-57

2шт.

23

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Vertical Stabilizers

2шт.

24

R17319

CLAMP

Vertical Stabilizers

2шт.

25

232-4115

LOCK NUT,5/16"-18, GC

Vertical Stabilizers

2шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Vertical stabilizers

1шт.

Part of connector P/N 218-5057

1шт.
