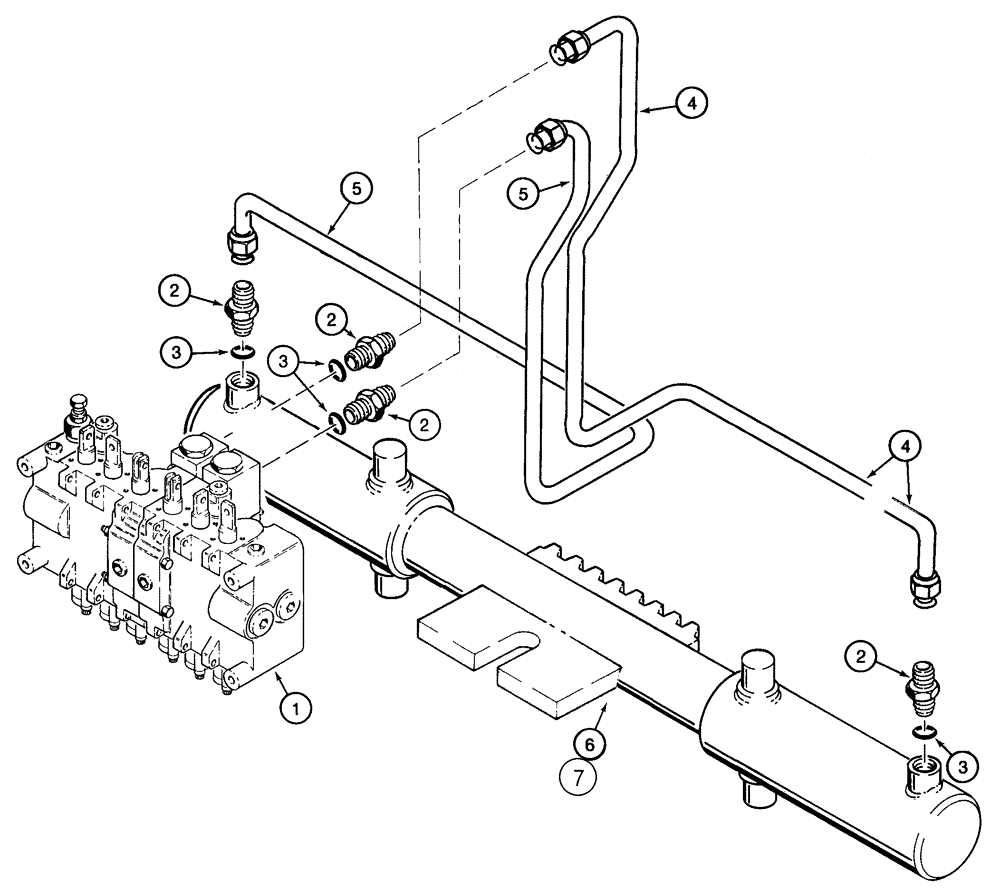

Запчасти Case IH 85XT (08-41) - HYDRAULIC SYSTEM BACKHOE SWING CYLINDER NORTH AMERICA, D125 BACKHOE, WITH TUBES AT CONTROL VALVE (08) - HYDRAULICS

1

H674500

VALVE

Backhoe, See Figures 08-38 - 08-51

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 3

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5059

1шт.

4

256126A1

TUBE,590, 493 mm Length

Right-Hand

1шт.

5

256128A1

TUBE,480, 413 mm Length

Left-Hand

1шт.

6

H673149

CYLINDER ASSY.

Swing, 70 ID x 254 mm strk, See Figure 08-52, No longer Available, Order 379623A1

1шт.

7

379623A1

CYLINDER ASSY.,Double Acting, 60.8mm Rod, 254mm Stroke

Swing, 70 ID x 254 mm strk, See Figure 08-52

1шт.
