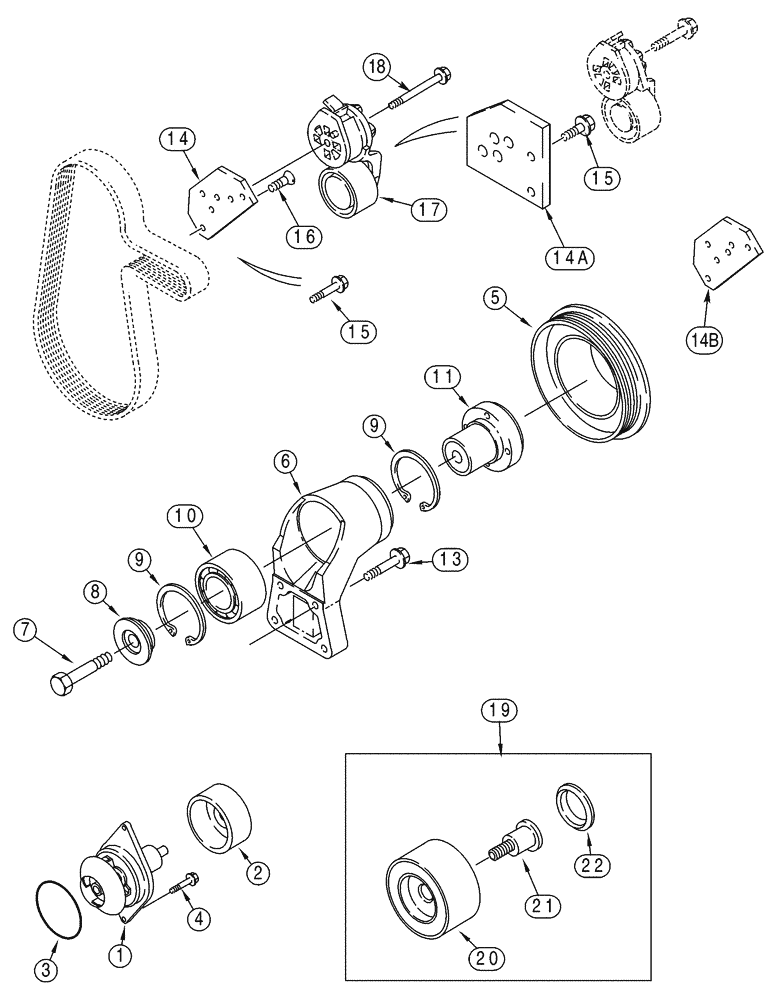

Запчасти Case IH 85XT (02-08) - WATER PUMP SYSTEM NORTH AMERICA/EUROPE *- JAF0236483 (02) - ENGINE

J802970

PUMP, WATER

Replaces: J802358, 4-390 Engine, Consists Of: Ref. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

85XT BSN JAF0236483

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSY., 4-390 Engine

1шт.

Part of water pump P/N J802970

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY, 4-390 Engine

1шт.

Part of water pump P/N J802970

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

4-390 Engine

1шт.

Part of water pump P/N J802970

1шт.

4

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

3-1/2 ID x 3/16, Replaces: J900227, 4-390 Engine

2шт.

5

J914462

PULLEY,163mm OD

N.A. Only, 4-390 Engine

1шт.

5

87739401

PULLEY,207.26mm OD

Europe Only, 4-390 Engine; Replaces J914461

1шт.

6

J911922

SUPPORT ASSY.

4-390 Engine, Includes Ref. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70, 4-390 Engine

1шт.

Part of support assy. P/N J911922

1шт.

8

J923044

RETAINER

4-390 Engine

1шт.

Part of support assy. P/N J911922

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

4-390 engine

2шт.

Part of support assy. P/N J911922

1шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

4-390 Engine

1шт.

Part of support assy. P/N J911922

1шт.

11

J911924

HUB

4-390 Engine

1шт.

Part of support assy. P/N J911922

1шт.

13

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4-390 Engine

4шт.

14

J925207

SUPPORT

N.A. Only, 4-390 Engine

1шт.

14a

J925214

SUPPORT

Europe Only, If Used, 4-390 Engine

1шт.

14b

J925275

SUPPORT

Europe Only, If Used, 4-390 Engine No. 234277A2

1шт.

15

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

4-390 Emissions Certified Engine

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

4-390 Emissions Certified Engine

1шт.

17

J918944

BELT TENSIONER

No Longer Available, Order J936203, 4-390 Emissions Certified Engine

1шт.

17a

J936203

BELT TENSIONER

Replaces: J918944, 4-390 Emissions Certified Engine

1шт.

18

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

4-390 Emissions Certified Engine

1шт.

19

A77817

KIT

Tensioner, 4-390 Emissions Certified Engine, Consists Of: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

PULLEY, 4-390 Emissions Certified Engine

1шт.

Part of tensioner repair package P/N A77817

1шт.

21

NSS

NOT SOLD SEPARAT

BOLT, 4-390 Emissions Certified Engine

1шт.

Part of tensioner repair package P/N A77817

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL, 4-390 Emissions Certified Engine

1шт.

Part of tensioner repair package P/N A77817

1шт.
