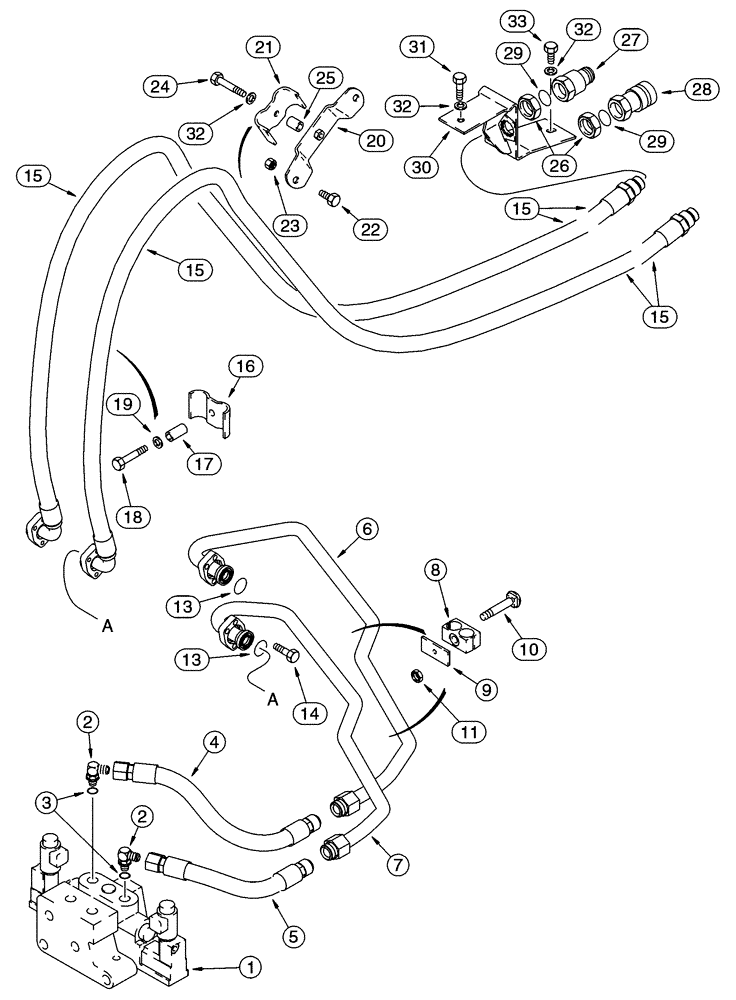

Запчасти Case IH 85XT (08-30) - HYD, ATTACHMENT HIGH FLOW, GEAR, VALVE TO COUPLINGS, N. AMERICAN -JAF0352233, EUROPEAN -JAF0352714 (08) - HYDRAULICS

1

227084A1

VALVE

See Figure 08-37

1шт.

2

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5118

1шт.

4

293655A1

HOSE

405 mm (16 in.)

1шт.

5

304344A1

HOSE ASSY.

490 mm (19-5/16 in.), Replaces: 278378A1

1шт.

6

254842A2

TUBE

1шт.

7

254840A2

TUBE,25.4 mm OD

1шт.

8

225529A1

CLAMP,Dual, 25.4mm ID

2-Piece

2шт.

9

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

10

811-8060

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 60mm, Cl 8.8

2шт.

11

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

13

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

14

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

8шт.

15

250861A1

HOSE ASSY.

2850 mm (112-1/4 in.)

2шт.

16

276433A1

CLAMP

1шт.

17

276884A1

SPACER

1шт.

18

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

20

253476A1

BAR

1шт.

21

256688A2

CLAMP BRACKET

Replaces: 256688A1

1шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

23

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

24

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

25

256690A1

SPACER

1шт.

26

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

27

254293A1

QUICK MALE COUPLING

Male

1шт.

28

198474A1

COUPLING

Female

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

30

294185A1

HOLDER

1шт.

31

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

32

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

33

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.
