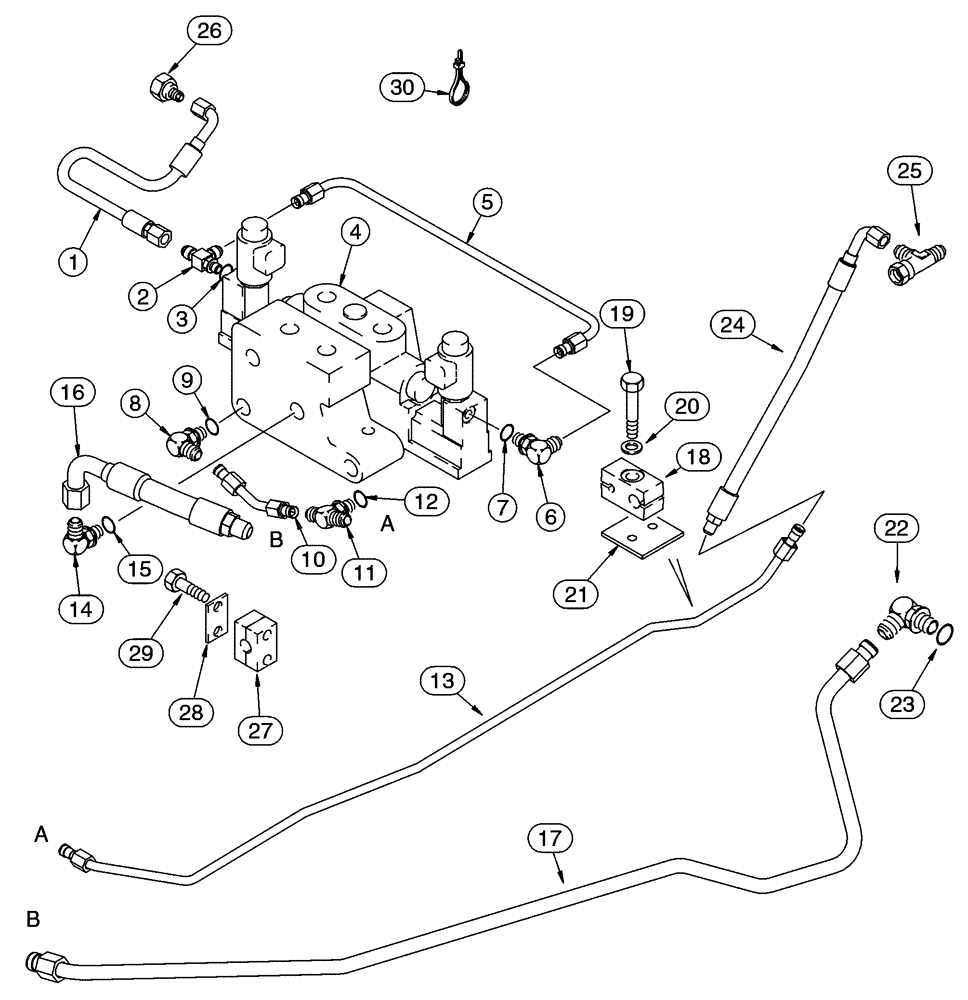

Запчасти Case IH 85XT (08-29) - HYD, ATTACH HI FLO, GEAR, CHARGE PRESSURE/PILOT RELIEF LINES, N AMER -JAF0352233, EURO -JAF0352714 (08) - HYDRAULICS

1

245407A1

HOSE

400 mm (15-3/4 in.)

1шт.

2

255403A1

TEE

Includes: Ref. 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Part of tee P/N 255403A1

1шт.

4

227084A1

VALVE

See Figure 08-37

1шт.

5

254835A3

TUBE,9.52 mm OD, 406, 71 mm Length

Replaces: 254835A2

1шт.

6

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. Ref 7

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5278

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes: Ref. 9

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5105

1шт.

10

236528A3

TUBE,9.52 mm OD

Replaces: 236528A2

1шт.

11

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 adj Or x fl x fl, Includes: Ref. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of tee P/N 218-5182

1шт.

13

275239A4

TUBE,1020 mm Length

Replaces: 275239A3

1шт.

14

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

Adj Or, Incl. Ref 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5130

1шт.

16

278883A1

HOSE ASSY.

1шт.

17

279045A2

PIPE

1шт.

18

254831A1

SHIN

2-Piece

1шт.

19

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

21

281873A1

LARGE PLATE

PLATE, LARGE

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5107

1шт.

24

275657A1

HOSE ASSY.

400 mm (15-3/4 in.)

1шт.

25

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

26

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

1-5/16 FST x 9/16 fl

1шт.

27

254830A1

CLAMP BRACKET

2-Piece

1шт.

28

279519A1

LARGE PLATE

PLATE, LARGE

1шт.

29

614-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8, Full Thd

2шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
