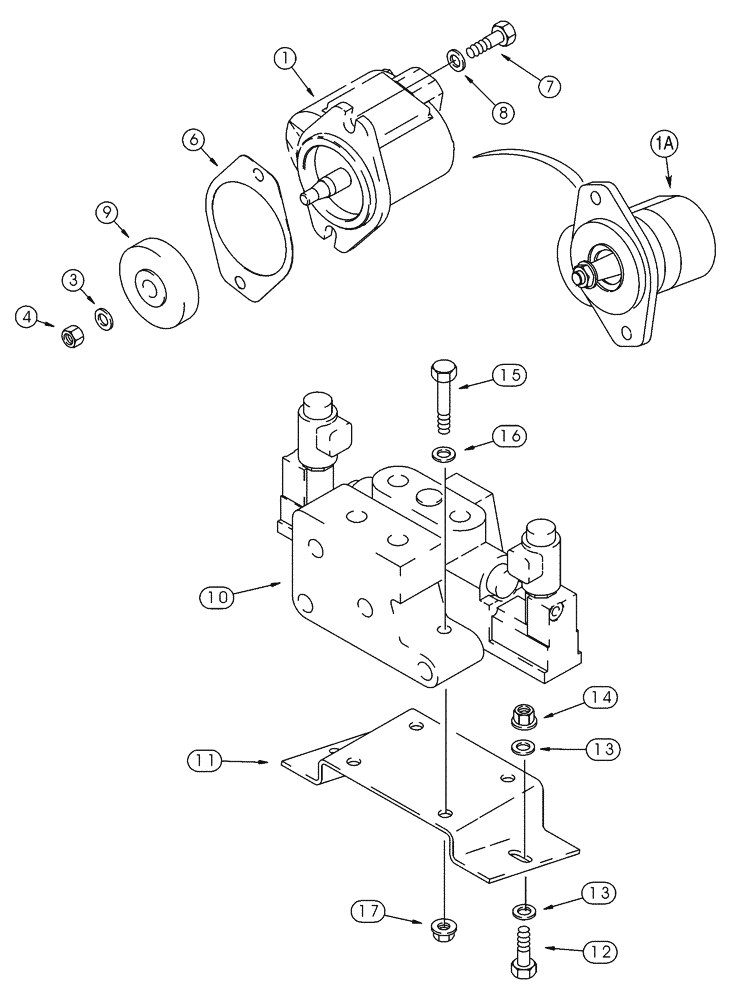

Запчасти Case IH 85XT (08-27) - HYD, ATTACHMENT HIGH FLOW, GEAR PUMP & CTRL VALVE MTG, N. AMERICAN -JAF0352233, EUROPEAN -JAF0352714 (08) - HYDRAULICS

1

254521A1

PUMP, HYDRAULIC

No Longer Available, Order 323427A1, Ref. 1A, Includes: Ref. 2 - 5

1шт.

1a

323427A1

PUMP, HYDRAULIC

Consists Of: 361942A1

1шт.

361942A1

SEAL KIT

Consists Of: (1) Oil Seal, (2) Ring Seal, (1) Wearplate, (1) Wearplate, (1) Preload Seal, (1) Load Seal

1шт.

Part of hydraulic pump P/N 323427A1

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL Shaft, Order 132967A1, Not Illustrated

2шт.

Part of hydraulic pump P/N 254521A1

1шт.

3

495-11059

WASHER,9/16"

19/32 x 1-5/32 x 3/32

1шт.

Part of hydraulic pump P/N 254521A1

1шт.

4

425-159

JAM NUT,Jam, 9/16"-18, G5

1шт.

Part of hydraulic pump P/N 254521A1

1шт.

5

132967A1

SEAL KIT

Gear Pump, Not Illustrated

1шт.

Part of hydraulic pump P/N 254521A1

1шт.

6

J919601

GASKET

If Used

1шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

9

J924187

PINION

1шт.

10

227084A1

VALVE

See Figure 08-37

1шт.

11

232665A1

SUPPORT

1шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

4шт.

14

832-41312

NUT,M12 x 1.75, Cl 10

2шт.

15

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

3шт.

17

832-41310

NUT,M10 x 1.5, Cl 10

3шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.
