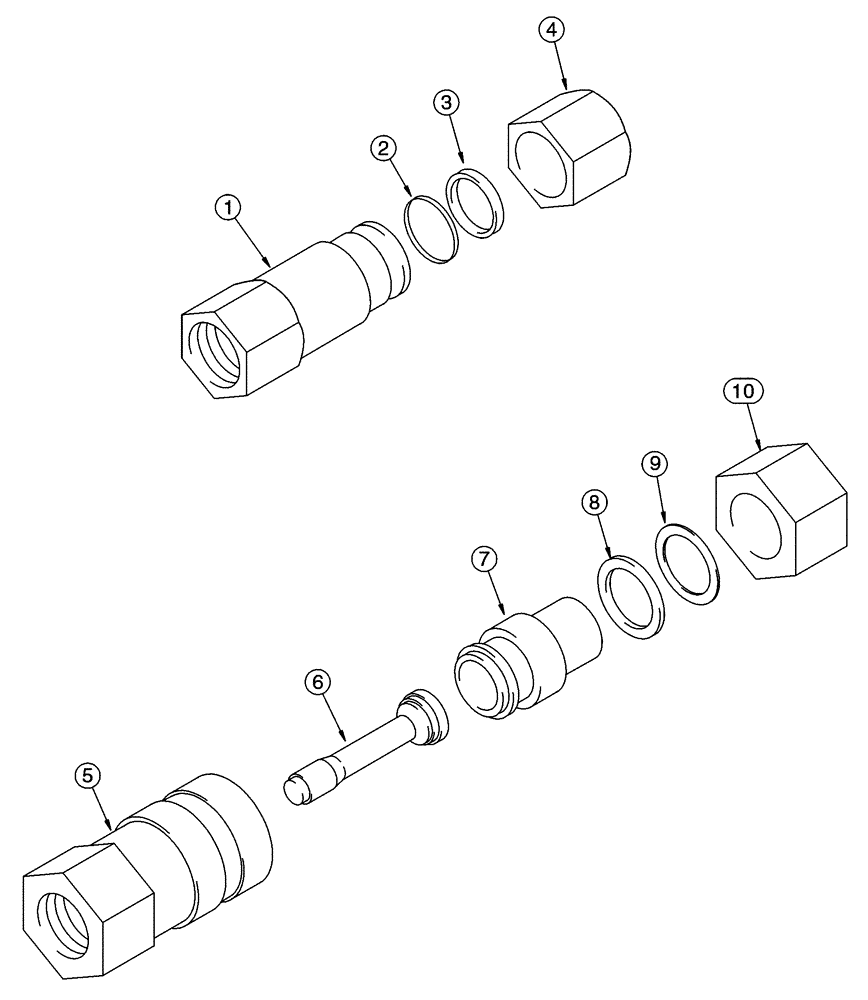

Запчасти Case IH 85XT (08-26) - COUPLERS - HYDRAULIC, MALE (08) - HYDRAULICS

1

122180A1

COUPLING, BREAK AWAY

Male, Includes: Ref. 2 and 3

1шт.

185786A1

SET OF PARTS

Male, Consists Of: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL, Male

1шт.

Part of breakaway coupling P/N 122180A1

1шт.

Part of set of parts P/N 185786A1

1шт.

3

NSS

NOT SOLD SEPARAT

RING Backup, Male

1шт.

Part of breakaway coupling P/N 122180A1

1шт.

Part of set of parts P/N 185786A1

1шт.

4

193259A1

PLUG

Male, Order Separately

1шт.

1

238243A1

COUPLING, BREAK AWAY

Male, Includes: Ref. 2 and 3

1шт.

185786A1

SET OF PARTS

Male, Consists Of: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL, Male

1шт.

Part of set of parts P/N 185786A1

1шт.

Part of breakaway coupling P/N 238243A1

1шт.

3

NSS

NOT SOLD SEPARAT

RING Backup, Male

1шт.

Part of set of parts P/N 185786A1

1шт.

Part of breakaway coupling P/N 238243A1

1шт.

4

193259A1

PLUG

Male, Order Separately

1шт.

5

143431A1

COUPLING, QUICK, FEM

Female, Includes: Ref. 6 - 9

1шт.

185785A1

COUPLING

Female, Consists Of: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE Check, Female

1шт.

Part of breakaway coupling P/N 143431A1

1шт.

Part of set of parts P/N 185785A1

1шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE, Female

1шт.

Part of breakaway coupling P/N 143431A1

1шт.

Part of set of parts P/N 185785A1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL, Female

1шт.

Part of breakaway coupling P/N 143431A1

1шт.

Part of set of parts P/N 185785A1

1шт.

9

NSS

NOT SOLD SEPARAT

RING Backup, female

1шт.

Part of breakaway coupling P/N 143431A1

1шт.

Part of set of parts P/N 185785A1

1шт.

10

193260A1

PLUG

Female, Order Separately

1шт.
