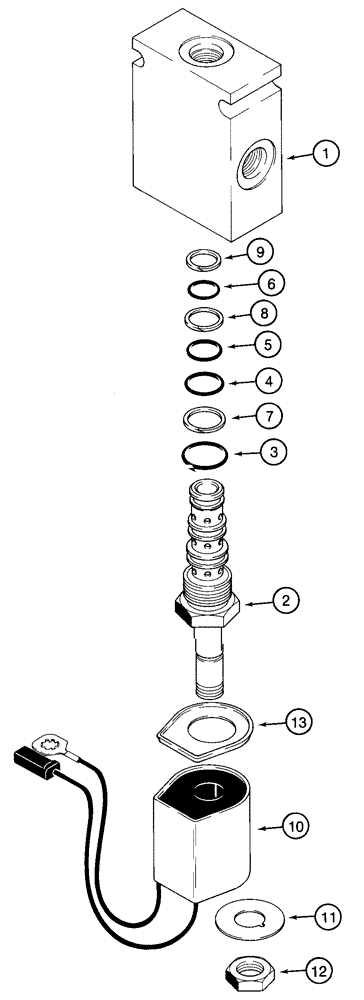

Запчасти Case IH 85XT (08-25) - VALVE, SOLENOID (08) - HYDRAULICS

187505C91

VALVE

Consists Of: Ref. 1 - 13

1шт.

1

187851C1

BODY

1шт.

2

187849C1

SOLENOID VALVE

1шт.

187850C1

SEAL KIT

Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seals package P/N 187850C1

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seals package P/N 187850C1

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seals package P/N 187850C1

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seals package P/N 187850C1

1шт.

7

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

Part of seals package P/N 187850C1

1шт.

8

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

Part of seals package P/N 187850C1

1шт.

9

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

Part of seals package P/N 187850C1

1шт.

187852C1

SWITCH

Consists Of: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING, Includes: Coil

1шт.

Part of switch P/N 187852C1

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE

1шт.

Part of switch P/N 187852C1

1шт.

12

NSS

NOT SOLD SEPARAT

NUT

1шт.

Part of switch P/N 187852C1

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE Cover

1шт.

Part of switch P/N 187852C1

1шт.
