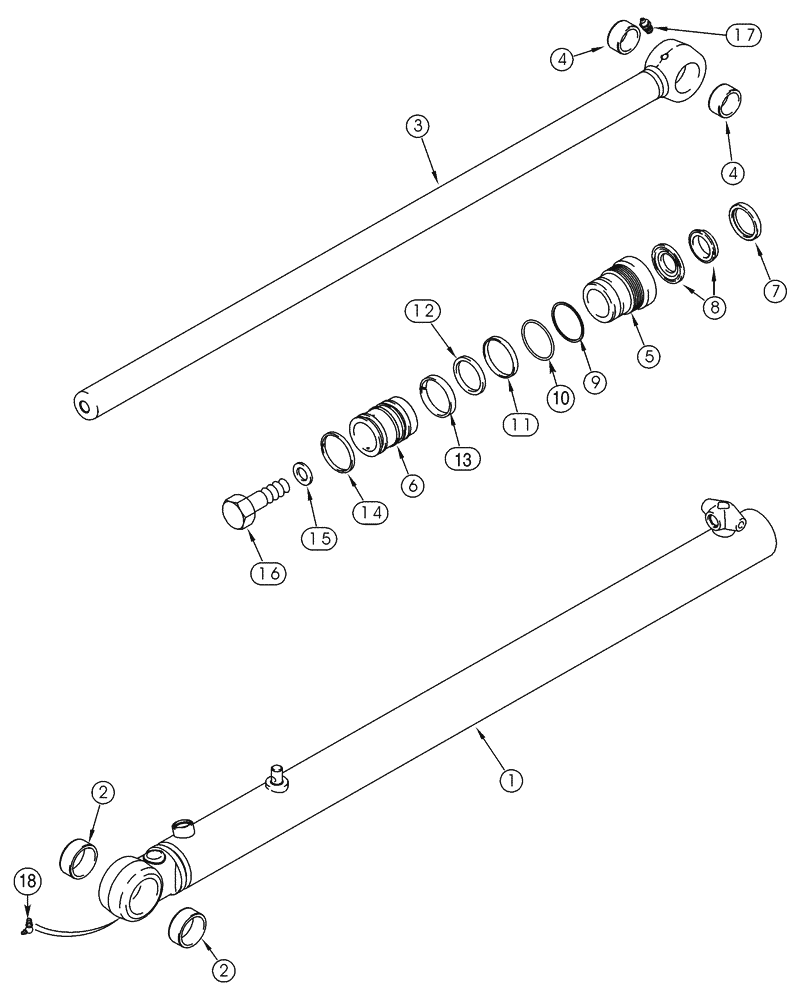

Запчасти Case IH 85XT (08-23) - CYLINDER LOADER LIFT (08) - HYDRAULICS

189980A3

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

64 ID x 1049 mm strk, Loader Lift, Consists Of: Ref. 1 - 18

2шт.

1

191293A2

HYD CYL SLEEVE

Includes: Ref. 2

1шт.

2

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

Part of hydraulic cylinder sleeve P/N 191293A2

1шт.

3

190965A1

PISTON ROD

Includes: Ref. 4

1шт.

4

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

Part of piston rod P/N 190965A1

1шт.

5

279415A2

GLAND

Replaces: 279415A1

1шт.

6

193977A1

JACK PISTON

1шт.

198376A2

SEAL KIT

Consists Of: Ref. 7 - 14

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

Part of gasket kit P/N 198376A2

1шт.

8

1542875C1

SEAL KIT,44.4mm Rod

Rod and Buffer Seal, Not Serviced Separately, Order 198376A2

1шт.

Part of gasket kit P/N 198376A2

1шт.

9

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

Part of gasket kit P/N 198376A2

1шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

Part of gasket kit P/N 198376A2

1шт.

11

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

Piston

1шт.

Part of gasket kit P/N 198376A2

1шт.

12

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

Loader

1шт.

Part of gasket kit P/N 198376A2

1шт.

13

G100714

RING

1шт.

Part of gasket kit P/N 198376A2

1шт.

14

191319A1

RING

Cast Iron

1шт.

Part of gasket kit P/N 198376A2

1шт.

15

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

16

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

Replaces 28-1240

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.
