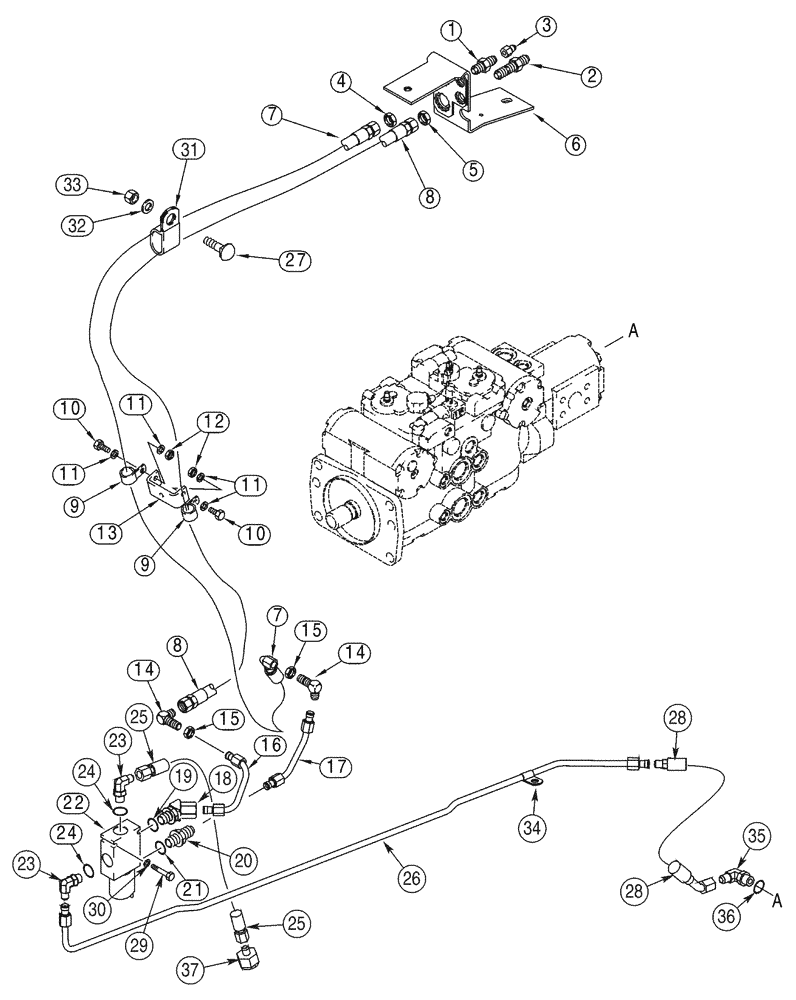

Запчасти Case IH 85XT (08-12) - HYD COUP SYS, GEAR PUMP TO HOSE MTG BRACKET, MODELS WITH 7/16" & 9/16" HYD. LINES TO SOLENOID VALVE (08) - HYDRAULICS

1

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

7/16 fl x blkhd fl, Used With 436651A1, See Figure 08-14, Ref. 24

1шт.

2

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Fit stl bulkhd .375MJ .375MJ

1шт.

3

296606A1

REDUCER

1шт.

4

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

1-1/16

1шт.

5

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

6

301874A1

BRACKET

1шт.

7

296681A1

HOSE ASSY.

Upper, 3094 mm (121-7/8 in.)

1шт.

8

278589A1

HOSE ASSY.

Lower, 3094 mm (121-7/8 in.)-

1шт.

9

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

12

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

13

276726A1

SUPPORT

1шт.

14

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

15

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

16

257754A3

TUBE

1шт.

17

301865A2

TUBE,98, 113 mm Length

1шт.

18

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 19

1шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 21

1шт.

22

187505C91

VALVE

See Figure 08-25

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes: Ref. 24

2шт.

25

417481A1

HOSE ASSY.

460 mm (18-1/8 in.), If Used

1шт.

26

419739A1

TUBE

1шт.

27

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

1шт.

28

275379A1

HOSE ASSY.

390 mm (15-3/8 in.), See Page(s) 6-5, Ref. 27

1шт.

29

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

2шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

31

D47783

CLAMP

1шт.

33

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

34

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

1шт.

35

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Replaces: Adapter 218-5057, Includes: Ref. 36

1шт.

37

218-766

REDUCER,37 Degree, 1 1/16"-12, Fem x 9/16"-18 Male

3/4 x 3/8

1шт.

38

394910A1

HARNESS

Flyback Diode Jumper, Not Illustrated

1шт.

39

259347A1

HARNESS

Hydraulic Coupler, See Figure 04-13, Not Illustrated

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5135

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5057

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5105

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5105

1шт.
