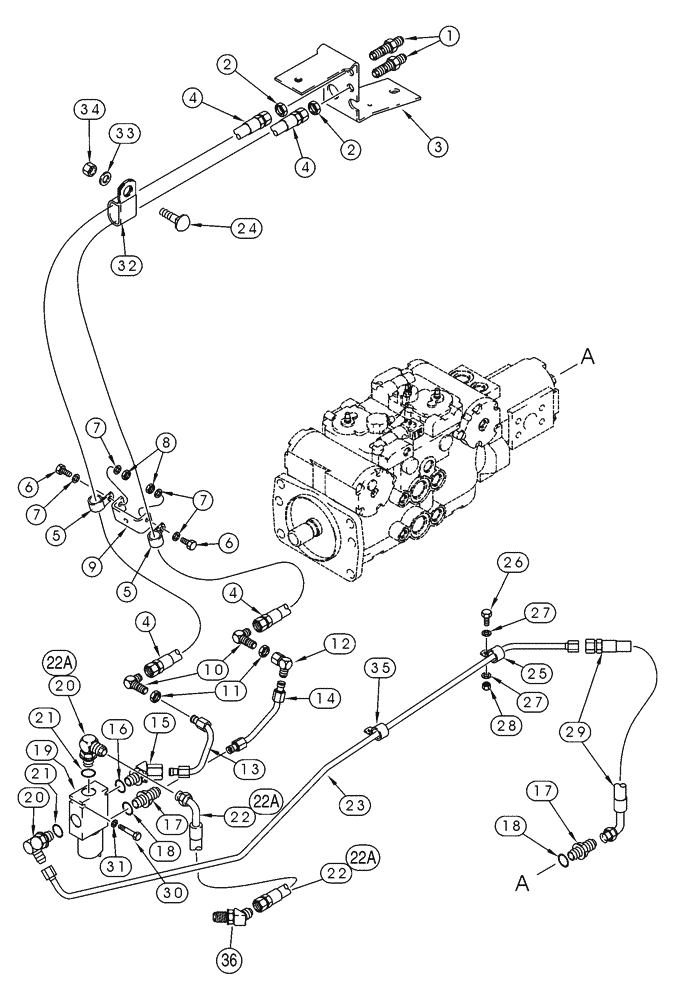

Запчасти Case IH 85XT (08-10) - HYD. COUPLER SYS., GEAR PUMP TO HOSE MTG BRACKET, MODELS WITH TWO 9/16" HYD. LINES TO SOLENOID VALVE (08) - HYDRAULICS

1

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Fit stl bulkhd .375MJ .375MJ

2шт.

2

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

3

257769A2

LARGE PLATE

PLATE, LARGE

1шт.

4

278589A1

HOSE ASSY.

3094 mm (121-7/8 in.)

2шт.

5

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

8

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

9

276726A1

SUPPORT

1шт.

10

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

11

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

13

257754A2

TUBE

1шт.

14

257756A2

TUBE,113, 99 mm Length

1шт.

15

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 16

1шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 18

2шт.

19

187505C91

VALVE

See Figure 08-25

1шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes: Ref. 21

2шт.

22

278749A1

HOSE ASSY.

362 mm (14-1/4 in.), If Used, See Page(s) 6-3, Ref. 6

1шт.

22a

335962A1

HOSE ASSY.

1200 mm (47-1/4 in), If Used

1шт.

Used with elbow P/N 218-5136

1шт.

23

280181A2

TUBE,1205, 222 mm Length

1шт.

24

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

1шт.

25

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

26

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

28

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

29

275379A1

HOSE ASSY.

390 mm (15-3/8 in.), See Page(s) 6-5, Ref. 27

1шт.

30

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

2шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

32

D47783

CLAMP

1шт.

34

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

35

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

1шт.

36

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Used with 335962A1, Ref 22A

1шт.

27

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

33

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5135

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5057

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5105

1шт.
