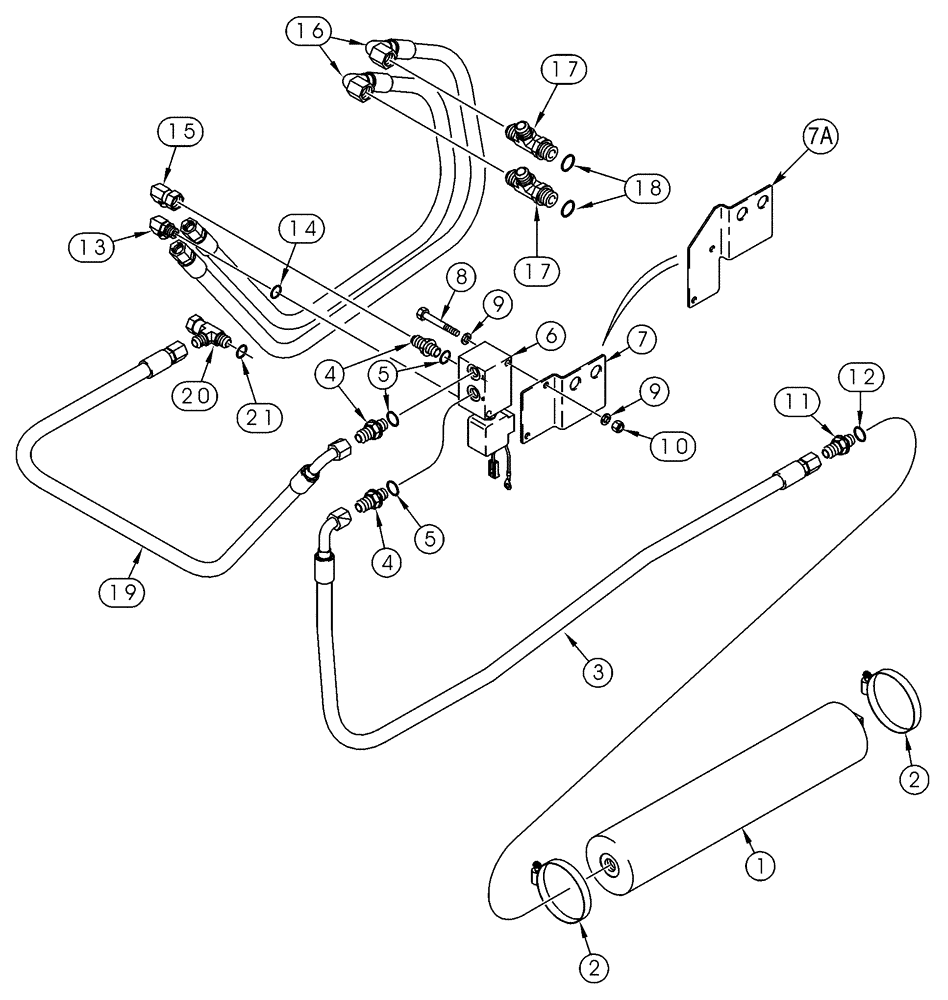

Запчасти Case IH 85XT (08-09) - HYDRAULICS RIDE CONTROL (08) - HYDRAULICS

1

277049A1

ACCUMULATOR

1шт.

2

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

3

308236A1

HOSE ASSY.

1205 mm (47-1/2 in.)

1шт.

4

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 Or, Includes: Ref. 5

3шт.

6

308023A1

VALVE

Includes: Ref. 6A and 6B

1шт.

6a

344905A1

SEAL KIT

Seal, Not Illustrated

1шт.

Part of valve P/N 308023A1

1шт.

6b

344906A1

KIT

Not Illustrated

1шт.

Part of valve P/N 308023A1

1шт.

7

310865A1

SUPPORT

No Longer Available, Order 335932A1, Ref. 7A

1шт.

7a

335932A1

SUPPORT

1шт.

8

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

2шт.

10

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5059

1шт.

13

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 Or, Includes: Ref. 14

1шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

16

321587A1

HOSE ASSY.

1100 mm (43-3/8 in.)

2шт.

17

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl br x fl x Or, Includes: Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5241

1шт.

19

308236A1

HOSE ASSY.

1205 mm (47-1/2 in.)

1шт.

20

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Attaches To Manifold, See Page(s) 6-9, Includes: Ref. 21

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of tee P/N 218-845

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5351

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5280

1шт.
