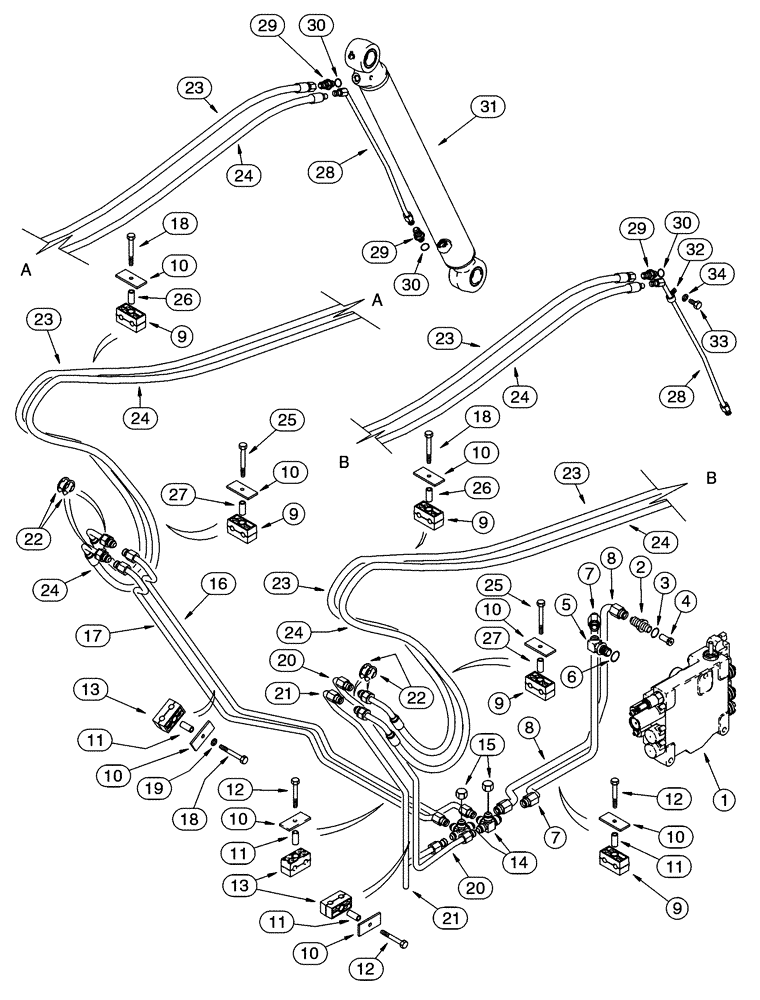

Запчасти Case IH 85XT (08-04) - HYDRAULICS LOADER BUCKET, NORTH AMERICAN MODELS -JAF0352233, EUROPEAN MODELS -JAF0352714 (08) - HYDRAULICS

1

228188A5

VALVE

3-Spool, See Figures 08-15, 08-18, Replaces: 228188A2, 228188A3, 228188A4

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5062

1шт.

4

257850A1

PORT

1шт.

5

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5137

1шт.

7

259298A6

PIPE

1шт.

8

259300A5

PIPE

1шт.

9

257857A1

CLAMP

2-Piece

5шт.

10

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

8шт.

11

259905A1

SPACER

4шт.

12

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

3шт.

13

257919A1

CLAMP BRACKET

2-Piece

3шт.

14

232857A1

TEE

See Note

2шт.

15

218-755

CAP,37 Degree, 3/4"-16

2шт.

16

259318A3

PIPE

1шт.

17

259320A4

PIPE

Replaces: 259320A3

1шт.

18

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

20

259314A3

PIPE

1шт.

21

259316A3

PIPE

1шт.

22

103-3398

SNAP RING,#X98, .822" Dia, E-Type

8шт.

23

258894A2

HOSE ASSY.,9.53mm ID x 3265mm L

3265 mm (128-5/8 in.)

2шт.

24

258895A2

HOSE ASSY.,9.53mm ID x 3250mm L

3250 mm (128 in.)

2шт.

25

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

26

293891A1

SPACER

2шт.

27

293892A1

SPACER

2шт.

28

254351A3

TUBE,593 mm Length

2шт.

29

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 30

4шт.

31

258426A3

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 525mm Stroke

Loader Bucket, 70 ID x 525 mm strk, See Figure 08-24, Replaces: 258426A2

2шт.

31

258426A3R

85 XT, BSN JAF0352233

REMAN-HYD CYLINDER

2шт.

31

258426A3C

Return Number

CORE-HYD CYLINDER

2шт.

32

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

33

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

34

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5057

1шт.
