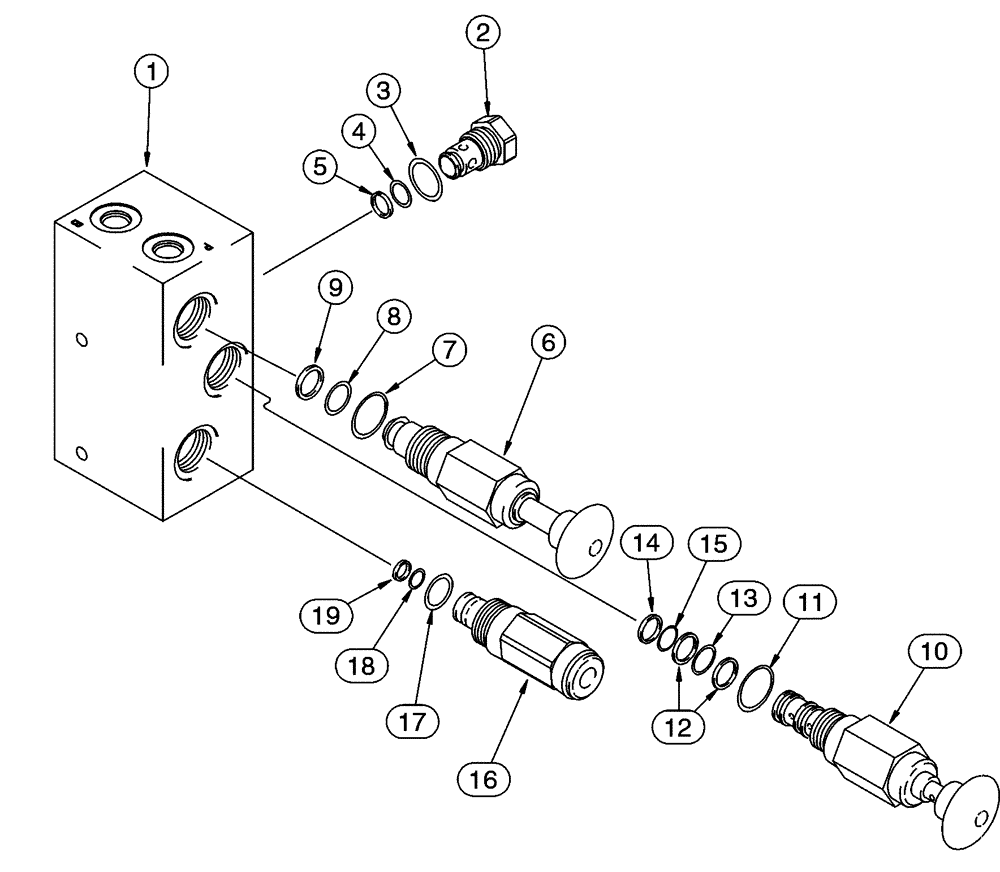

Запчасти Case IH 85XT (07-07) - PUMP BRAKE (07) - BRAKES

281117A2

PUMP

Consists Of: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

120459A1

VALVE,3/4" - 16

Consists Of: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE Check

1шт.

Part of valve P/N 120459A1

1шт.

1542831C1

SEAL KIT

Consists Of: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of valve P/N 120459A1

1шт.

Part of seals kit P/N 1542831C1

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of valve P/N 120459A1

1шт.

Part of seals kit P/N 1542831C1

1шт.

5

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

Part of valve P/N 120459A1

1шт.

Part of seals kit P/N 1542831C1

1шт.

295299A1

PUMP

Hand-Operated, Consists Of: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

PUMP

1шт.

Part of pump P/N 295299A1

1шт.

1542830C2

SEAL KIT

Replaces 295300A1, Consists of Ref 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of pump P/N 295299A1

1шт.

Part of gasket kit P/N 1542830C2

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of pump P/N 295299A1

1шт.

Part of gasket kit P/N 1542830C2

1шт.

9

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

Part of pump P/N 295299A1

1шт.

Part of gasket kit P/N 1542830C2

1шт.

295301A1

BY-PASS VALVE

Consists Of: Ref. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE Bypass

1шт.

Part of bypass valve P/N 295301A1

1шт.

295302A1

SEAL KIT

Consists Of: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of gasket kit P/N 295302A1

1шт.

Part of bypass valve P/N 295301A1

1шт.

12

NSS

NOT SOLD SEPARAT

RING Backup

2шт.

Part of gasket kit P/N 295302A1

1шт.

Part of bypass valve P/N 295301A1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of gasket kit P/N 295302A1

1шт.

Part of bypass valve P/N 295301A1

1шт.

14

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

Part of gasket kit P/N 295302A1

1шт.

Part of bypass valve P/N 295301A1

1шт.

15

NSS

NOT SOLD SEPARAT

O_RING

1шт.

Part of gasket kit P/N 295302A1

1шт.

Part of bypass valve P/N 295301A1

1шт.

295303A1

VALVE POPPET

Consists Of: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE Relief

1шт.

Part of valve poppet P/N 295303A1

1шт.

1542831C1

SEAL KIT

Consists Of: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seals kit P/N 1542831C1

1шт.

Part of valve poppet P/N 295303A1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seals kit P/N 1542831C1

1шт.

Part of valve poppet P/N 295303A1

1шт.

19

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

Part of seals kit P/N 1542831C1

1шт.

Part of valve poppet P/N 295303A1

1шт.
