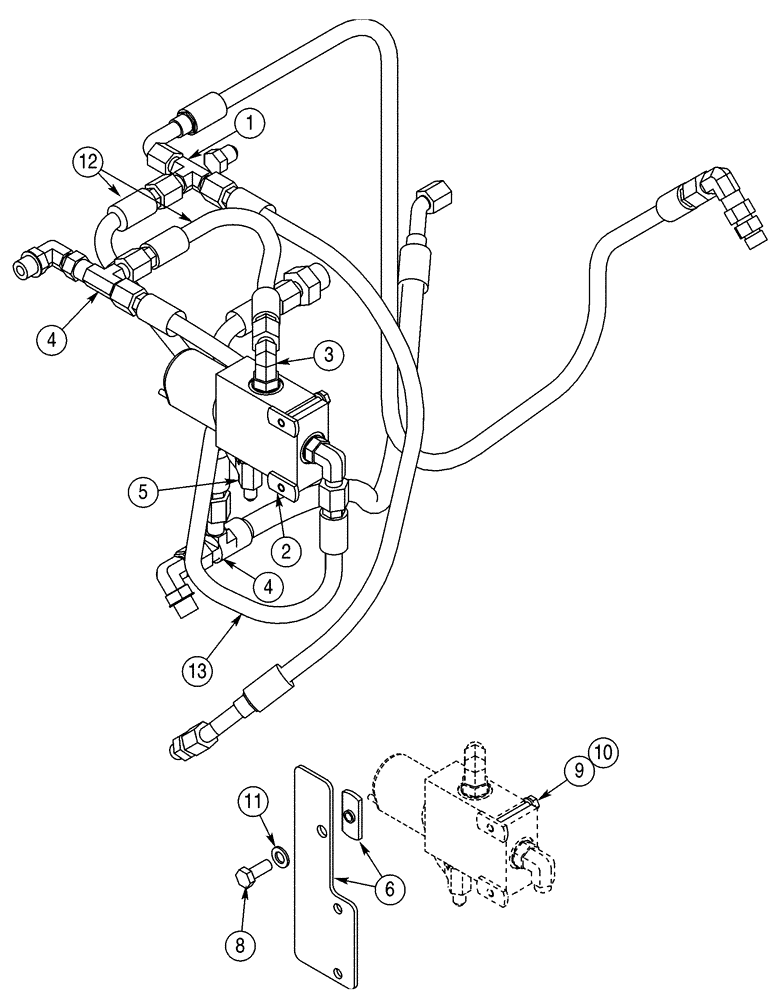

Запчасти Case IH 85XT (07-05) - HYDRAULIC CIRCUIT, BRAKE, REPAIR KIT, IF USED (07) - BRAKES

REF

INSTRUCTION

VALVE Solenoid, See Figure 08-25

1шт.

1

218-593

TEE,9/16"-18, 37 Degree

9/16 fl x fl x fl

1шт.

2

218-774

PLUG,9/16"-18, 37 Degree

2шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or

3шт.

4

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

5

218-5336

TEE,7/16"-20, 37 Degree x 9/16"-18, O-Ring Run

7/16 fl x 9/16 fl x Or

1шт.

6

293551A2

HOLDER

1шт.

7

324300A1

HARNESS

Not Illustrated

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

H438085

HOSE

267 mm

2шт.

13

H438088

HOSE ASSY.

432 mm

1шт.

9

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

3шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
