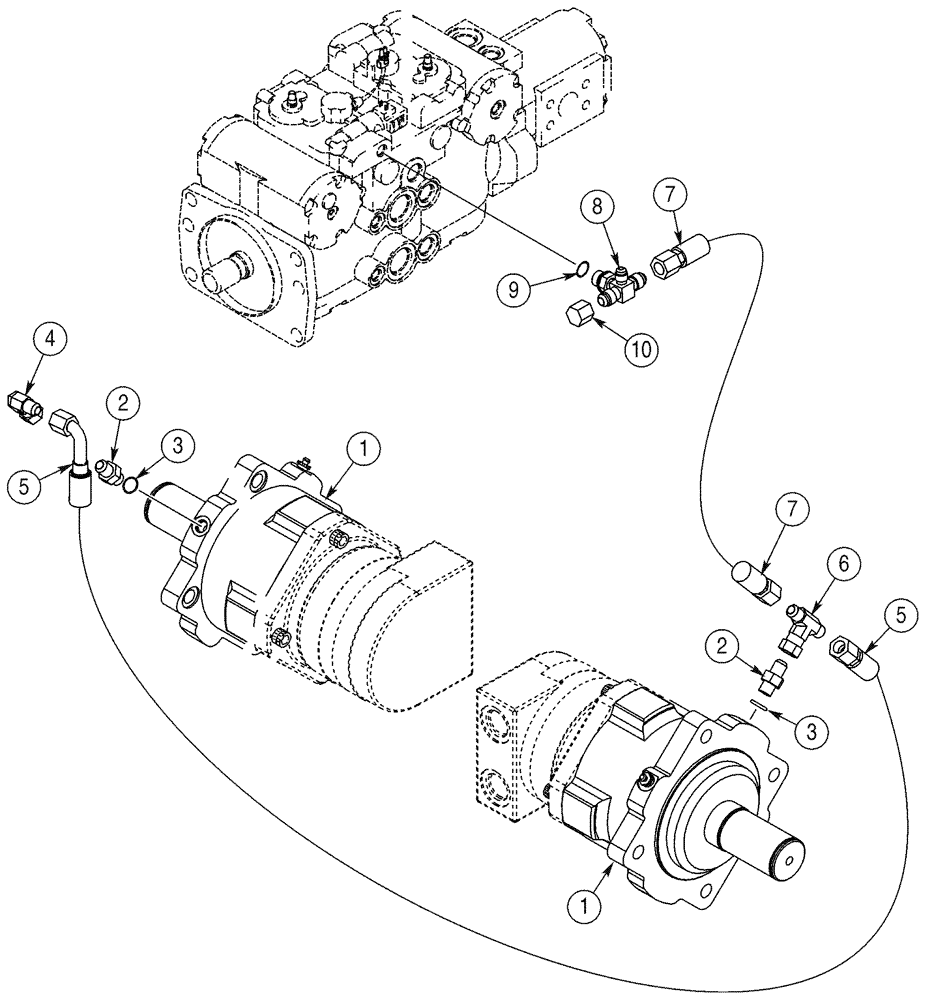

Запчасти Case IH 85XT (07-04) - HYDRAULIC CIRCUIT, BRAKE, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715- (07) - BRAKES

1

359619A2

BRAKE ASSY.

See Figure 07-02

2шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 3

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

5

419097A1

HOSE ASSY.

Left-Hand, 1150 mm (45-9/32 in.)

1шт.

6

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

9/16 x 18

1шт.

7

419098A2

HOSE ASSY.

Right-Hand, 825 mm (32-1/2 in.), Replaces: 419098A1

1шт.

8

253266A1

TEE

See Page(s) 4-29B, Ref. 9, Includes: Ref. 9

1шт.

10

218-754

CAP,37 Degree, 9/16"-18

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5057

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of tee P/N 253266A1

1шт.
