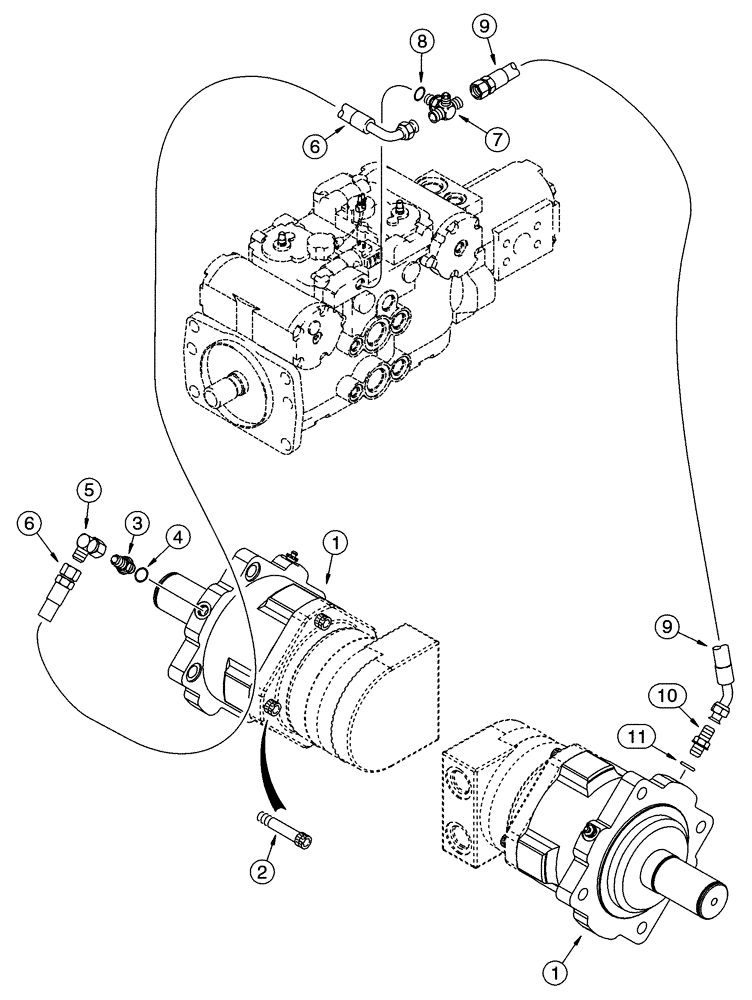

Запчасти Case IH 85XT (07-03) - HYDRAULIC CIRCUIT, BRAKE, NORTH AMERICAN MODELS -JAF0352233, EUROPEAN MODELS -JAF0352714 (07) - BRAKES

1

282807A1

BRAKE ASSY.

See Figure 07-01, No longer Available, Order 359619A2

2шт.

1

359619A2

BRAKE ASSY.

See Figure 07-02

2шт.

2

282809A1

SCREW

4шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 4

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5057

1шт.

5

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

6

247201A2

HOSE ASSY.

Left-Hand, 860 mm (33-7/8 in.)

1шт.

7

253266A1

TEE

See Page(s) 4-29B, Ref. 9, Includes: Ref. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of tee P/N 253266A1

1шт.

9

247199A1

HOSE ASSY.

Right-Hand, 590 mm (23-1/4 in.)

1шт.

10

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 11

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5057

1шт.
