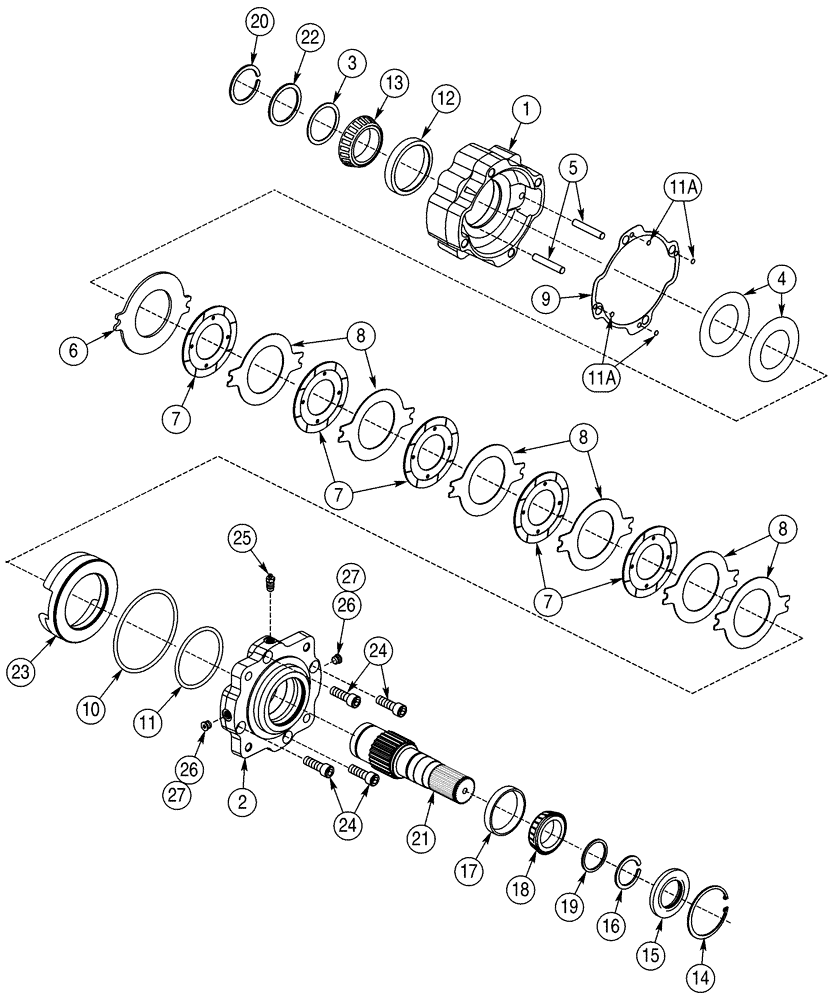

Запчасти Case IH 85XT (07-02) - BRAKE (07) - BRAKES

359619A2

BRAKE ASSY.

Vendor Part Number 61325-001, Consists Of: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM

1шт.

Part of bearing set of parts P/N 360753A1

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING

2шт.

360751A1

SET OF PARTS

DISC, Consists Of: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

PIN

2шт.

Part of disc set of parts P/N 360751A1

1шт.

6

NSS

NOT SOLD SEPARAT

DISC Brake, Primary

1шт.

Part of disc set of parts P/N 360751A1

1шт.

7

NSS

NOT SOLD SEPARAT

DISC Friction

5шт.

Part of disc set of parts P/N 360751A1

1шт.

8

NSS

NOT SOLD SEPARAT

DISC Brake

6шт.

Part of disc set of parts P/N 360751A1

1шт.

360752A1

SET OF PARTS

SEAL, Consists Of: Ref. 9 - 11A, 14 and 15

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET Mounting

1шт.

Part of seal set of parts P/N 360752A1

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seal set of parts P/N 360752A1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seal set of parts P/N 360752A1

1шт.

11a

NSS

NOT SOLD SEPARAT

SHIM

4шт.

Part of seal set of parts P/N 360752A1

1шт.

360753A1

BEARING ASSY

BEARING, Consists Of: Ref. 3, 12, 13, 16 - 20 and 22

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING Cup

1шт.

Part of bearing set of parts P/N 360753A1

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING Ccone

1шт.

14

NSS

NOT SOLD SEPARAT

RING Snap

1шт.

Part of seal set of parts P/N 360752A1

1шт.

15

298559A2

OIL SEAL

Replaces: 298559A1

1шт.

Part of seal set of parts P/N 360752A1

1шт.

16

NSS

NOT SOLD SEPARAT

RING Snap

1шт.

Part of bearing set of parts P/N 360753A1

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING Cup

1шт.

Part of bearing set of parts P/N 360753A1

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING Cone

1шт.

Part of bearing set of parts P/N 360753A1

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER

1шт.

Part of bearing set of parts P/N 360753A1

1шт.

20

NSS

NOT SOLD SEPARAT

RING Snap

1шт.

Part of bearing set of parts P/N 360753A1

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER

1шт.

Part of bearing set of parts P/N 360753A1

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON

1шт.

24

NSS

NOT SOLD SEPARAT

SCRES, 5/8 x 2

4шт.

25

NSS

NOT SOLD SEPARAT

SCRES Bleed

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG Hex Socket, 9/16, Includes: Ref. 27

2шт.

27

NSS

NOT SOLD SEPARAT

O-RING, 15/32 ID x 5/64

1шт.

Part of plug Ref.26

1шт.
