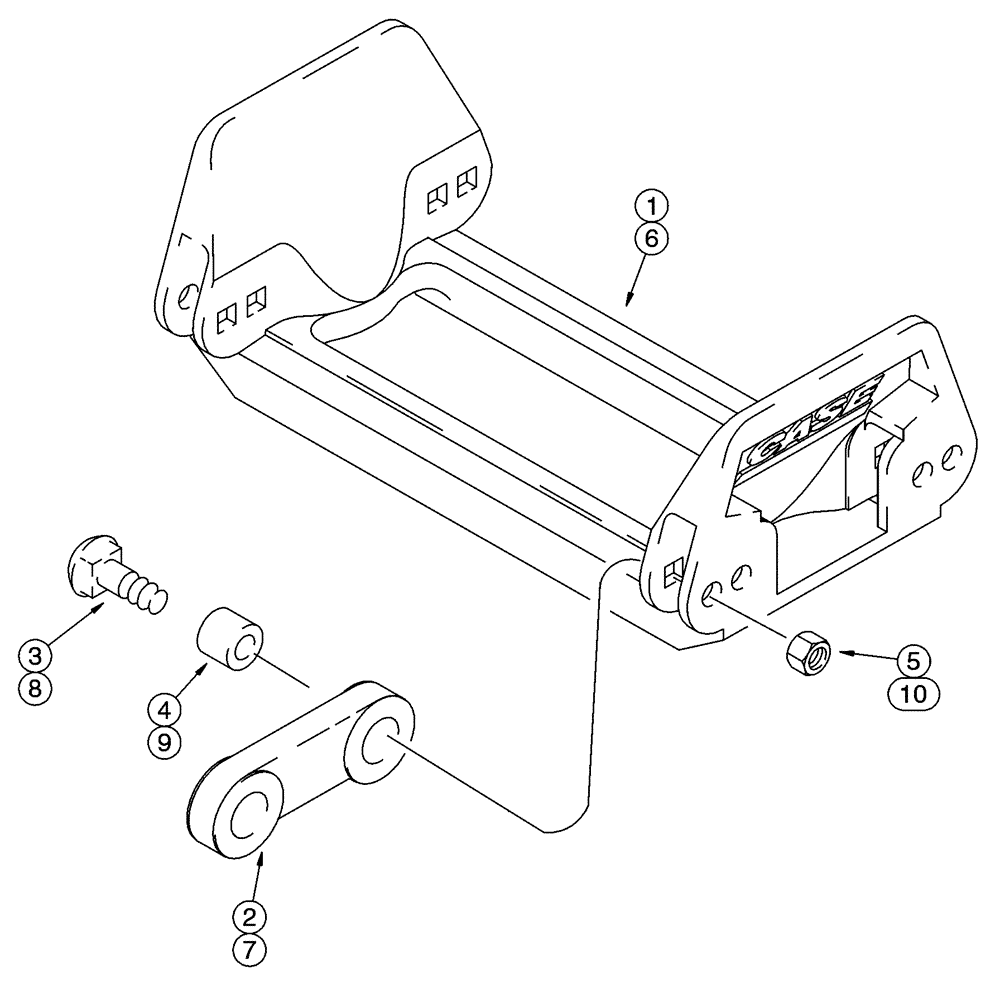

Запчасти Case IH 85XT (06-23) - TRACK STEEL NORTH AMERICA), USED WITH 12 X 16.5" TIRE (06) - POWER TRAIN

365917A1

ASSEMBLY

Consists Of: Ref. 1 - 5

2шт.

1

365259A1

PAD

Replaces: 244709A1

19шт.

Part of assembly P/N 365917A1

1шт.

2

365261A1

LINK

Replaces: 244714A1

38шт.

Part of assembly P/N 365917A1

1шт.

3

434-830

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 7/8" , Gr 5

76шт.

Part of assembly P/N 365917A1

1шт.

4

244710A1

RING

76шт.

Part of assembly P/N 365917A1

1шт.

5

231-4138

LOCK NUT,1/2"-13, GB

76шт.

Part of assembly P/N 365917A1

1шт.

294929A1

SET OF PARTS

Used With 12 x 16.5 inch Tire, Repair Kit, Consists Of: Ref. 6 - 10

1шт.

6

244709A1

TRACK SHOE

Used With 12 x 16.5 inch Tire, Repair Kit

1шт.

Part of set of parts P/N 294929A1

1шт.

7

244714A1

LINK

Used With 12 x 16.5 inch Tire, Repair Kit

2шт.

Part of set of parts P/N 294929A1

1шт.

8

434-830

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 7/8" , Gr 5

Used with 12 x 16.5 inch Tire, Repair Kit

2шт.

Part of set of parts P/N 294929A1

1шт.

9

244710A1

RING

Used With 12 x 16.5 inch Tire, Repair Kit

2шт.

Part of set of parts P/N 294929A1

1шт.

10

231-4138

LOCK NUT,1/2"-13, GB

Used with 12 x 16.5 inch Tire, Repair Kit

2шт.

Part of set of parts P/N 294929A1

1шт.

1

324064A1

PAD

Used With 33/15.5 x 16.5 inch Tire (Galaxy)

19шт.

2

244714A1

LINK

Used With 33/15.5 x 16.5 inch Tire (Galaxy)

38шт.

3

434-830

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 7/8" , Gr 5

Used with 33/15.5 x 16.5 inch Tire (Galaxy)

72шт.

4

244710A1

RING

Used With 33/15.5 x 16.5 inch Tire (Galaxy)

76шт.

5

231-4138

LOCK NUT,1/2"-13, GB

Used with 33/15.5 x 16.5 inch Tire (Galaxy)

76шт.
