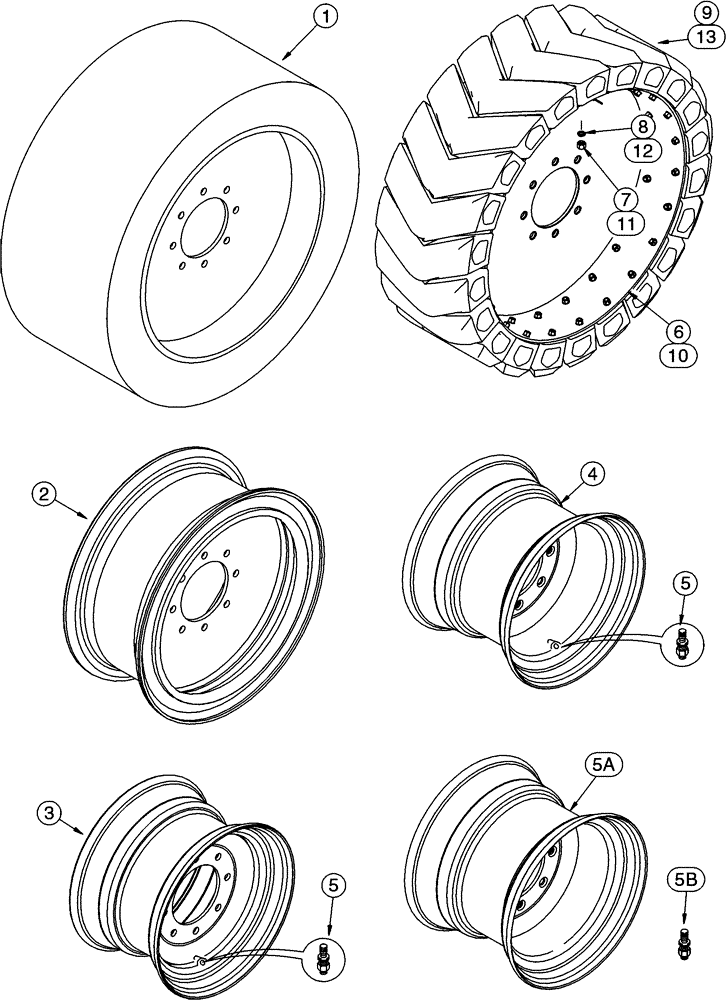

Запчасти Case IH 85XT (06-22) - WHEELS (06) - POWER TRAIN

1

198151A1

WHEEL

10 x 31, With Solid, Slick Tires, Machinery Item

4шт.

2

259442A2

RIM

WHEEL 7.5 - 20, Used With 33 x 12-20 inch Tire

4шт.

3

183300A3

RIM

WHEEL 16.5 x 9.75, Full Center; Used With 12 x 16.5 tire

4шт.

4

248048A2

RIM

WHEEL 16.5 x 12, Used With 33/15.50 x 16.5 inch Tire

4шт.

5

294579A1

VALVE STEM

4шт.

5a

238584A1

RIM

WHEEL 12 x 16.5, Used With 33/15.5 x 16.5 inch Tire (Galaxy)

4шт.

5b

294579A1

VALVE STEM

4шт.

183310A1

WHEEL

Left-Hand, 12 x 16.5, Consists Of: Ref. 6 - 9

2шт.

6

291333A1

RIM

WHEEL Left-Hand, 12 x 16.5

1шт.

Part of wheel P/N 183310A1

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

88шт.

Part of wheel P/N 183310A1

1шт.

9

235444A1

SEGMENT

22шт.

Part of wheel P/N 183310A1

1шт.

183308A1

WHEEL

Right-Hand, 12 x 16.5, Consists Of: Ref. 10 - 13

2шт.

10

291334A1

RIM

WHEEL Right-Hand, 12 x 16.5

1шт.

Part of wheel P/N 183308A1

1шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

88шт.

Part of wheel P/N 183308A1

1шт.

13

235444A1

SEGMENT

22шт.

Part of wheel P/N 183308A1

1шт.

14

244234A1

RIM

WHEEL Left-Hand, 8.25 x 15, Not Illustrated

2шт.

15

244233A1

RIM

WHEEL Right-Hand, 8.25 x 15, Not Illustrated

2шт.

Purchase Tires Locally

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

88шт.

Part of wheel P/N 183310A1

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

88шт.

Part of wheel P/N 183308A1

1шт.
