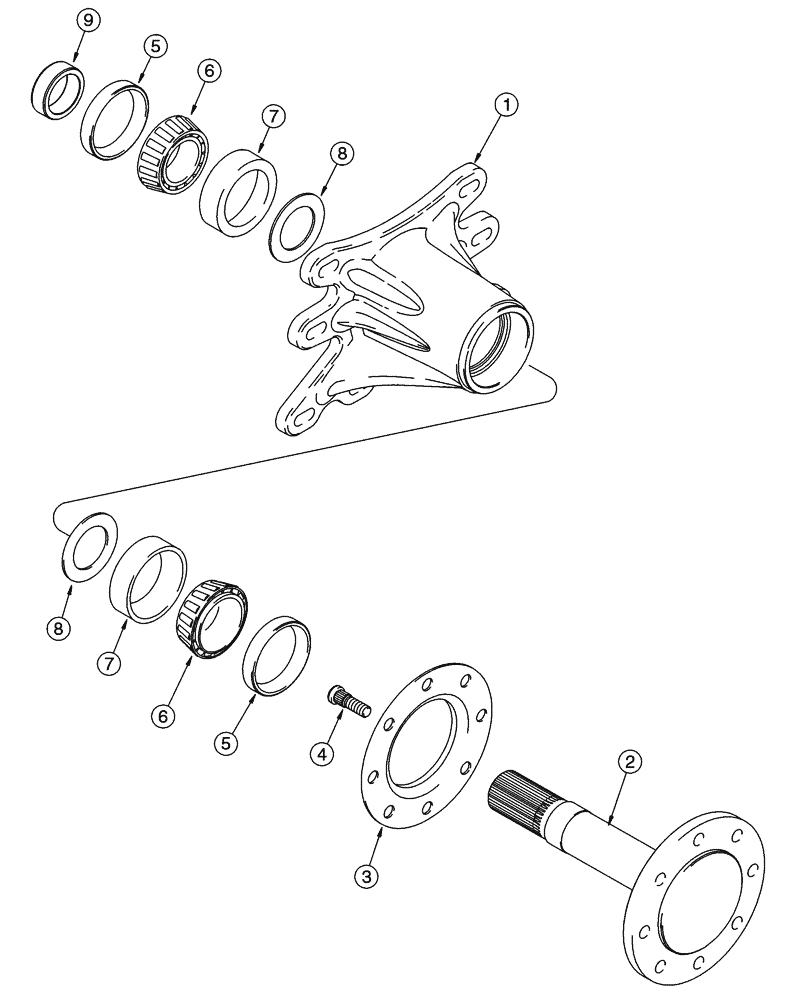

Запчасти Case IH 85XT (06-20A) - AXLE ASSY S/N JAF0297637, 38, 39, 40, AND 41 (06) - POWER TRAIN

Serial Numbers JAF0297637, 38, 39, 40, And 41

1шт.

REF

INSTRUCTION

AXLE ASSY, Small, Incl. Ref. 1 - 9

4шт.

1

386799A1

HUB ASSY.

Replaces 189988A2

1шт.

338550A2

AXLE

Incl. Ref. 2 - 4, Replaces 189994A1, 338550A1

1шт.

338550A4

MAIN SHAFT

Incl. Ref. 2 - 4; Also Order Screw, 86577946, When Replacing 338550A4

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT Axle; Part of axle P/N 338550A2

1шт.

4

191048A2

STUD

M16; Plain; Grade 9.8; If Used; Part of axle P/N 338550A2

8шт.

4

87618650

STUD

M16; Phosphate Coated; Grade 9.8; If Used

8шт.

5

D63674

SEAL,63.5mm ID x 89.15mm OD x 11.13mm Thk

Used With Ref 9, 230873A1

2шт.

6

287902

ROLLER BEARING,50.8mm ID x 22.23mm W

Replaces 364463C91

2шт.

7

199955

BEARING CUP,82mm OD x 17mm W

Replaces 376463C1

2шт.

8

197805A1

WASHER,51.8mm ID x 74mm OD x 3.2mm Thk

1шт.

9

230873A1

SPACER

Used With Ref 5, D63674

1шт.
