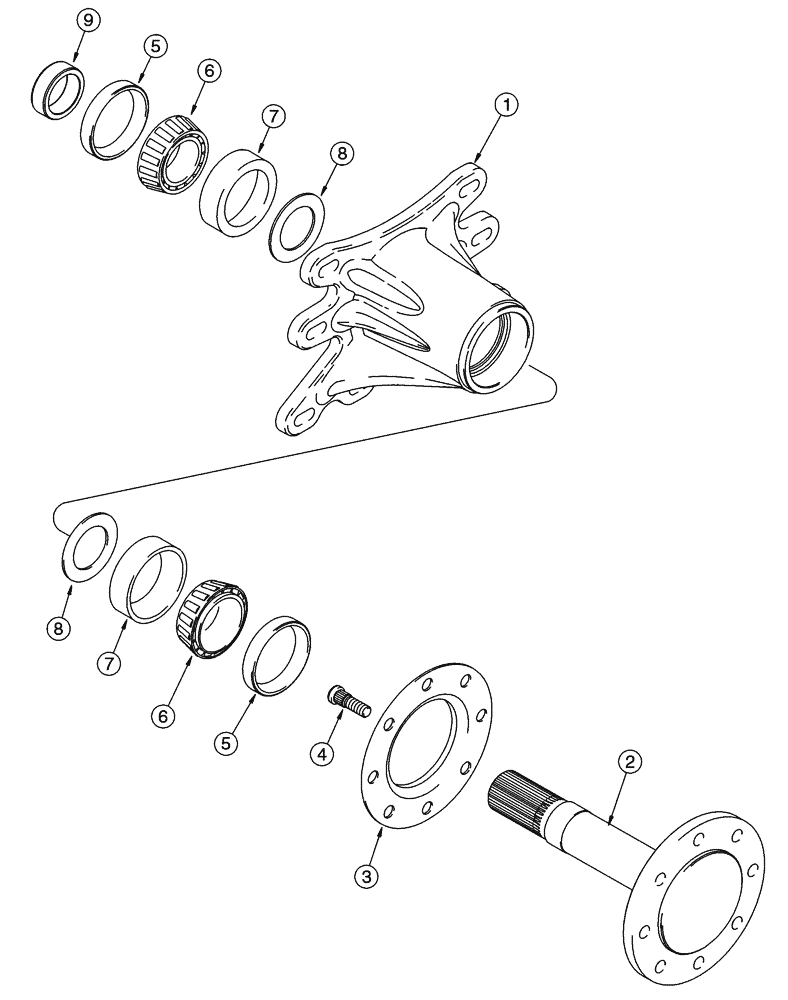

Запчасти Case IH 85XT (06-20) - AXLE ASSY - JAF0297636 AND JAF0297642 - JAF0298061 (06) - POWER TRAIN

REF

INSTRUCTION

Axle Assy, Consists Of 1 - 9, Order Component Parts Below

4шт.

1

189988A2

HUB

1шт.

189994A1

SHAFT ASSY.

Consists Of 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Axle

1шт.

3

189995A1

FLANGE

1шт.

4

191048A2

STUD

M16

8шт.

5

D63674

SEAL,63.5mm ID x 89.15mm OD x 11.13mm Thk

2шт.

6

287902

ROLLER BEARING,50.8mm ID x 22.23mm W

Replaces 364463C91

2шт.

7

199955

BEARING CUP,82mm OD x 17mm W

Replaces 376463C1

2шт.

8

197805A1

WASHER,51.8mm ID x 74mm OD x 3.2mm Thk

2шт.

9

230873A1

SPACER

1шт.
