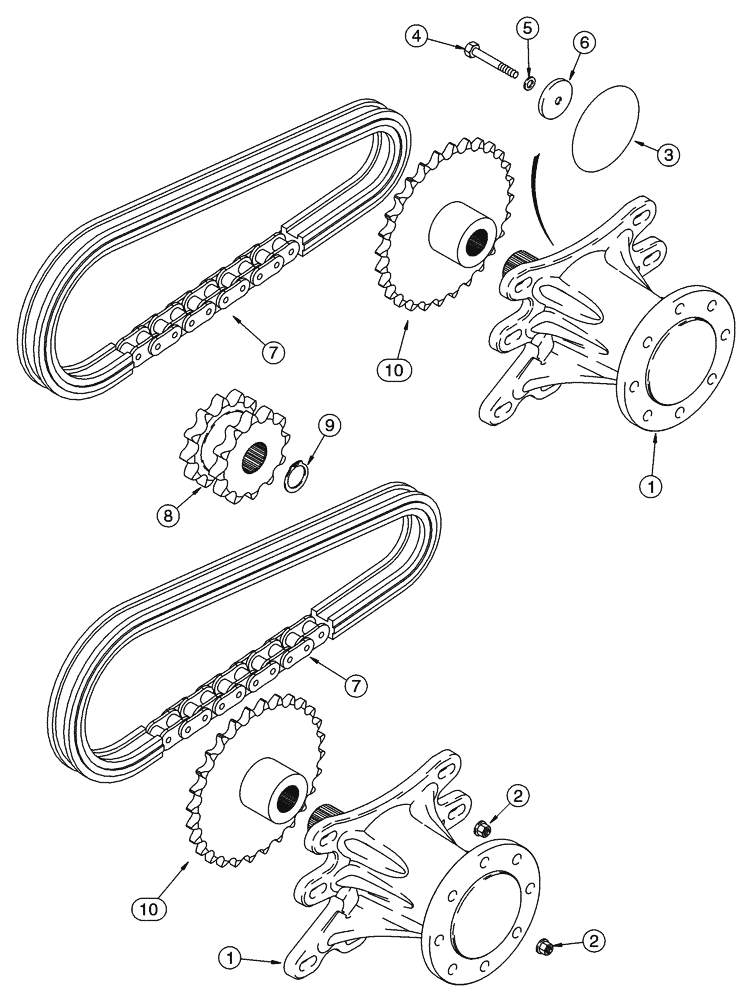

Запчасти Case IH 85XT (06-19) - DRIVE LINE, SMALL (06) - POWER TRAIN

1

REF

INSTRUCTION

AXLE ASSY., See Figure 06-20

4шт.

2

86512498

FLANGE NUT,M16 x 2, Cl 10

64шт.

3

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

4

826-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 10.9

Use Loctite No. 243 Hex, M14 x 140, 10.9

4шт.

5

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

15.5 x 28 x 3 mm

4шт.

6

245993A1

WASHER

4шт.

7

233112A1

CHAIN (CE)

100/56P

4шт.

8

304888A1

DRIVE SPROCKET

11T, - JAF0298061, Replaces: 228140A2

2шт.

9

100-11212

SNAP RING,#212, Ext

2шт.

10

228141A2

SPROCKET ASSY.

28T, - JAF0298061

4шт.

1

REF

INSTRUCTION

AXLE ASSY., See Figure 06-20, Large

4шт.

2

829-2416

FLANGE NUT,M16 x 2, Flg, Cl 10

Large

64шт.

3

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

4

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

Use Loctite No. 243, Large

4шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

If used, Large

4шт.

6

345180A1

WASHER

If Used, Large

4шт.

6

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

If Used, Large

4шт.

7

233112A1

CHAIN (CE)

100/56P, Large

4шт.

8

379115A1

SPROCKET ASSY.

11T, JAF0298062 -, Large

2шт.

9

100-11212

SNAP RING,#212, Ext

Large

2шт.

10

353168A1

SPROCKET ASSY.

28T, Large, JAF0298062 -

4шт.
