Запчасти Case IH 85XT (06-15) - CONTROL BLOCK FRONT PUMP (06) - POWER TRAIN

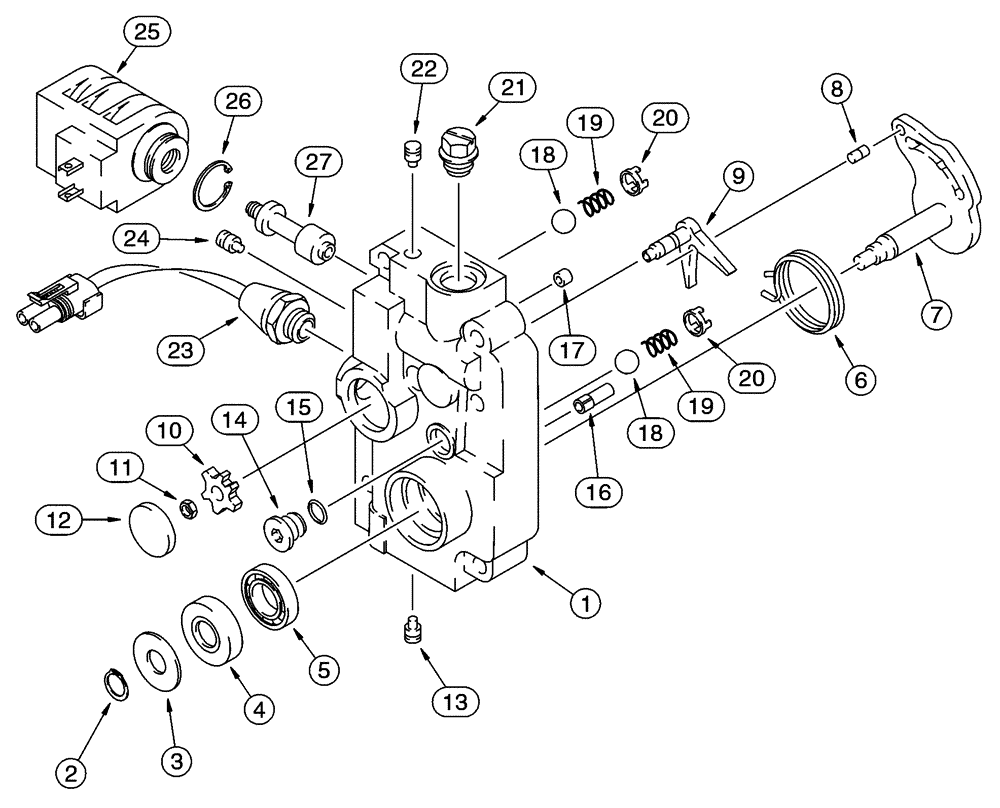

Схема запчастей Case IH 85XT - (06-15) - CONTROL BLOCK FRONT PUMP (06) - POWER TRAIN
15
4
18
20
17
25
24
14
23
22
13
3
6
7
19
5
8
2
27
12
11
9
21
16
10
26
18
1
19
20

Артикул

Название

Примечание

Количество

259488A1

CONTROL

Component Of 259625A2, See Figure 06-10, No Longer Available, Order 320273A1, Consists Of: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

100-1143

SNAP RING,#43, Ext

1шт.

3

300970A1

WASHER

1шт.

4

300968A1

SEAL,12mm ID x 32mm OD x 7mm Thk

1шт.

5

300967A1

BEARING, BALL

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING

1шт.

7

NSS

NOT SOLD SEPARAT

LEVER Control

1шт.

8

NSS

NOT SOLD SEPARAT

PIN

1шт.

9

NSS

NOT SOLD SEPARAT

YOKE

1шт.

10

300954A1

CAM

1шт.

11

300958A1

JAM NUT

1шт.

12

300959A1

COVER

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG

1шт.

14

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

300953A1

PIN

1шт.

17

300966A1

PORT

1шт.

18

211-1312

BALL,3/8" Dia

3/8 in; gr 200

2шт.

19

300963A1

SPRING

2шт.

20

300964A1

RETAINER

2шт.

21

NSS

NOT SOLD SEPARAT

PLUG

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG

1шт.

23

300960A1

SWITCH

Backup Alarm

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG

1шт.

25

299414A1

SOLENOID

1шт.

26

300962A1

RING, SNAP

RING SNAP

1шт.

27

300961A1

SPOOL

1шт.

320273A1

SET OF PARTS

Component Parts Not Serviced Separately, Component Of 320271A1, See Figure 06-10, No Longer Available, Order 372446A1, 372551A1

1шт.

372551A1

KIT

Component Parts Not Serviced Separately, Component Of 357008A1, See Figure 06-10, No Longer Used, Order 436130A1

1шт.

436130A1

KIT

Incl. 436129A1, 436132A1, Not Illustrated Separately; Component Of 433902A1, See Figure 06-10

1шт.

436129A1

RING, SNAP

RING SNAP

1шт.

436132A1

SWITCH

Backup Alarm

1шт.

Выбрано товаров: 33
