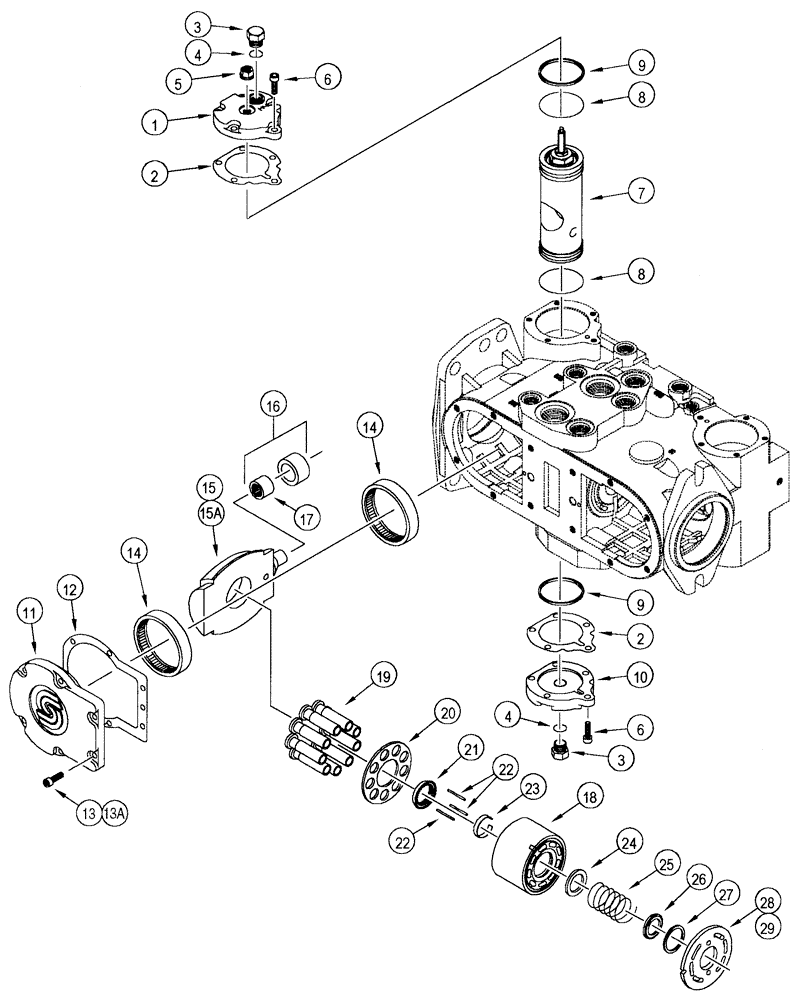

Запчасти Case IH 85XT (06-12) - PUMP, TANDEM, CYLINDER BLOCK AND PISTON (06) - POWER TRAIN

REF

INSTRUCTION

PUMP Tandem, See Page(s) 6-15, Consists Of: 6-17 - 6-31

1шт.

1

291125A1

COVER

Rod End

2шт.

2

373328A1

GASKET

Replaces: 233038A1

4шт.

3

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 4

4шт.

5

233029A1

NUT

2шт.

6

233004A1

SCREW

20шт.

259495A1

SET OF PARTS

Consists Of: Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

PISTON

1шт.

Part of set of parts P/N 259495A1

1шт.

233042A1

PACKAGE

Consists Of: Ref. 8 and 9

1шт.

8

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

2шт.

Part of set of parts P/N 259495A1

1шт.

Part of package P/N 233042A1

1шт.

9

291278A1

PISTON RING

2шт.

Part of set of parts P/N 259495A1

1шт.

Part of package P/N 233042A1

1шт.

10

233047A1

COVER

Plain End

2шт.

11

259479A1

COVER

2шт.

12

373327A1

GASKET

Replaces: 259493A1

2шт.

13

259480A1

SCREW

Component of 259625A2, See Figure 06-10

12шт.

13a

324791A1

SCREW

Component of 320271A1, See Figure 06-10

12шт.

14

233009A1

BEARING, NEEDLE

4шт.

15

233010A1

LARGE PLATE

PLATE, LARGE Component of 259625A2, See Figure 06-10

2шт.

15a

324793A1

PLATE

Component of 320271A1, See Figure 06-10

2шт.

16

291114A1

BEARING ASSY

Includes: Ref. 17

2шт.

17

233012A1

BEARING, NEEDLE

1шт.

Part of needle bearing P/N 291114A1

1шт.

233039A1

PACKAGE

Consists of: Ref. 18 - 27

2шт.

18

NSS

NOT SOLD SEPARAT

BLOCK

1шт.

Part of package P/N 233039A1

1шт.

19

291277A1

PISTON

9шт.

Part of package P/N 233039A1

1шт.

20

291276A1

LARGE PLATE

PLATE, LARGE

1шт.

Part of package P/N 233039A1

1шт.

21

291275A1

GUIDE

1шт.

Part of package P/N 233039A1

1шт.

22

291274A1

PIN

3шт.

Part of package P/N 233039A1

1шт.

23

117382A1

SPLIT PIN/SAFETY PIN

1шт.

Part of package P/N 233039A1

1шт.

24

115950A1

WASHER

1шт.

Part of package P/N 233039A1

1шт.

25

176373A1

SPRING

1шт.

Part of package P/N 233039A1

1шт.

26

176372A1

WASHER

1шт.

Part of package P/N 233039A1

1шт.

27

102-22162

SNAP RING,43.20mm ID, Int, Spiral

1шт.

Part of package P/N 233039A1

1шт.

28

233008A1

LARGE PLATE

PLATE, LARGE Front Pump

1шт.

29

233005A1

LARGE PLATE

PLATE, LARGE Rear Pump

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of plug P/N 218-5209

1шт.
