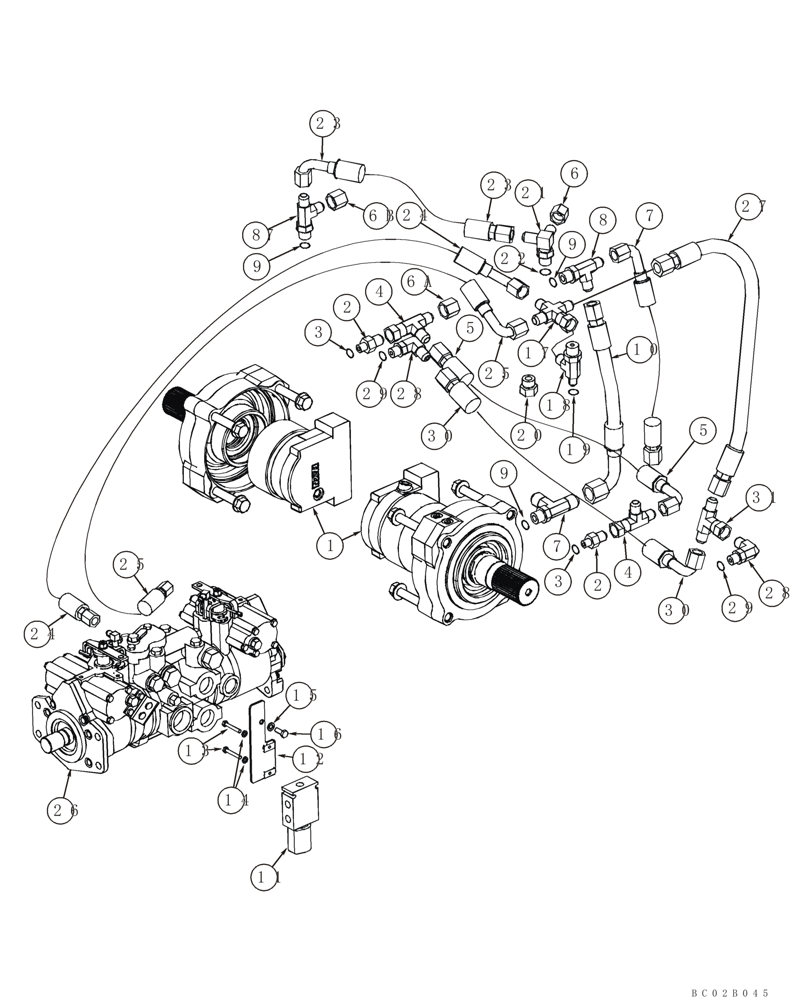

Запчасти Case IH 75XT (07-01) - BRAKE SYSTEM - HYDRAULIC (07) - BRAKES

1

394539A1

MOTOR, HYDRAULIC

See Figure 06-04, 06-12

2шт.

87359410

MOTOR, HYDRAULIC

Hydraulic Motor

1шт.

87359410R

Remanufactured Hydraulic Motor

REMAN-HYD MOTOR

1шт.

87359410C

Return Number

CORE-MOTOR HYDRAULIC

1шт.

2

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. 3

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

5

427397A1

HOSE ASSY.

720 mm (28-3/8 in); Right Hand Brake Tee To Left Hand Brake Tee

1шт.

6

218-754

CAP,37 Degree, 9/16"-18

Models With Hydraulic Coupler; See Figure 08-05, Ref 28

1шт.

6a

218-754

CAP,37 Degree, 9/16"-18

Models With Manual Brake Release; See Figure 07-03, 417617A1, Ref 9

1шт.

6b

218-754

CAP,37 Degree, 9/16"-18

Models With High Flow; See Figure 08-17, Ref. 22

1шт.

7

427396A1

HOSE ASSY.

365 mm (14-3/8 in); Solenoid Valve to Brake Cylinder

1шт.

8

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 9

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

397868A1

HOSE ASSY.

330 mm (13 in); Brake Valve to Case Drain; For Attaching Parts; See Figure 06-04, Ref 18

1шт.

11

187505C91

VALVE

Solenoid; See Figure 08-13

1шт.

12

293551A2

HOLDER

1шт.

13

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1,6 mm

1шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

17

284342A1

CONNECTOR, ELEC

CONNECTOR

1шт.

18

218-5336

TEE,7/16"-20, 37 Degree x 9/16"-18, O-Ring Run

7/16 fl x 9/16 fl x Or; Incl. 19

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

76349

PLUG,9/16" - 18 ORB

1шт.

21

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 22

1шт.

22

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

23

419221A1

HOSE ASSY.

310 mm (12-7/32 in); Pump To Brake Manifold

1шт.

24

427395A1

HOSE ASSY.

630 mm (24-13/16 in); Brake Supply

1шт.

25

427362A1

HOSE ASSY.

310 mm (12-7/32 in); Brake Supply

1шт.

26

394132A2

PUMP, HYDRAULIC,46 CC

See Figure 06-07 - 06-10B

1шт.

26

87298030

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

26

87298031

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

27

398205A1

HOSE ASSY.

485 mm (19-1/8 in); Solenoid Valve to Brake Release; Models With Manual Brake Release; See Figure 07-03

1шт.

28

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 29

2шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

429622A1

HOSE ASSY.

625 mm (24-5/8 in); Right Hand Brake Tee to Left Hand Brake Elbow

1шт.

31

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

9/16 x 18

1шт.
