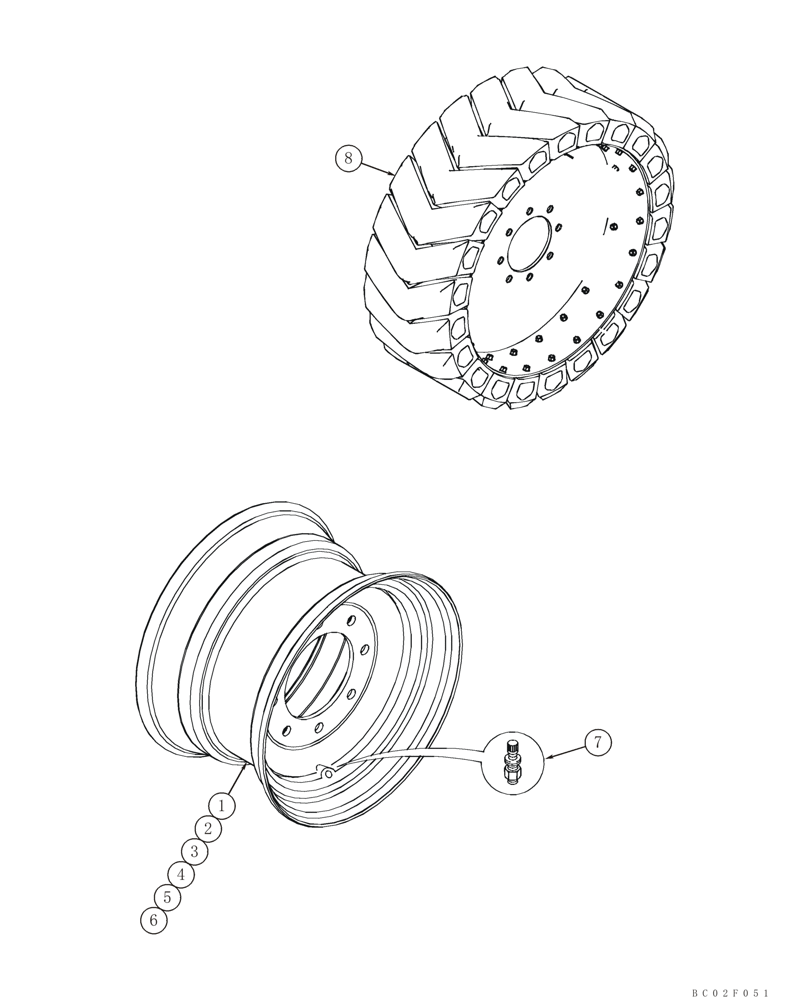

Запчасти Case IH 75XT (06-15) - WHEELS (May 2 2011 1:17PM) (06) - POWER TRAIN

1

183300A3

RIM

WHEEL 16.5 x 9.75, Full Center; Used With 12 x 16.5 tire

4шт.

2

189792A2

WHEEL

16.5 x 8.25; Used With 10 x 16.5 Inch Tire; Offset

4шт.

3

321195A1

RIM

WHEEL Used With 31 x 10 Inch Tire

4шт.

4

248048A2

RIM

WHEEL 16.5 x 12; Full Centered Wheel, Full Weld; Used With 33/15.5 x 16.5 Inch Tire

4шт.

5

448569A1

WHEEL ASSY

16.5 x 9.75; Used With 12 x 16.5 Inch Tire

4шт.

6

409174A2

RIM

WHEEL 16.5 x 12; Stamped Center Wheel, Spot Weld; Used With 33/15.5 x 16.5 Inch Tire

4шт.

7

T57461

VALVE STEM

Used with 1 , 2

4шт.

7

294579A1

VALVE STEM

Used With 1, 4, 5, 6

1шт.

7

372445A1

VALVE STEM

Used With 1, 4

1шт.

8

190059A1

TYRE/TIRE

10 x 16.5; Replaces 332784A1; Order Tires Individually

1шт.

86512498

FLANGE NUT,M16 x 2, Cl 10

See Figure 06-15, Ref 2

32-64шт.
