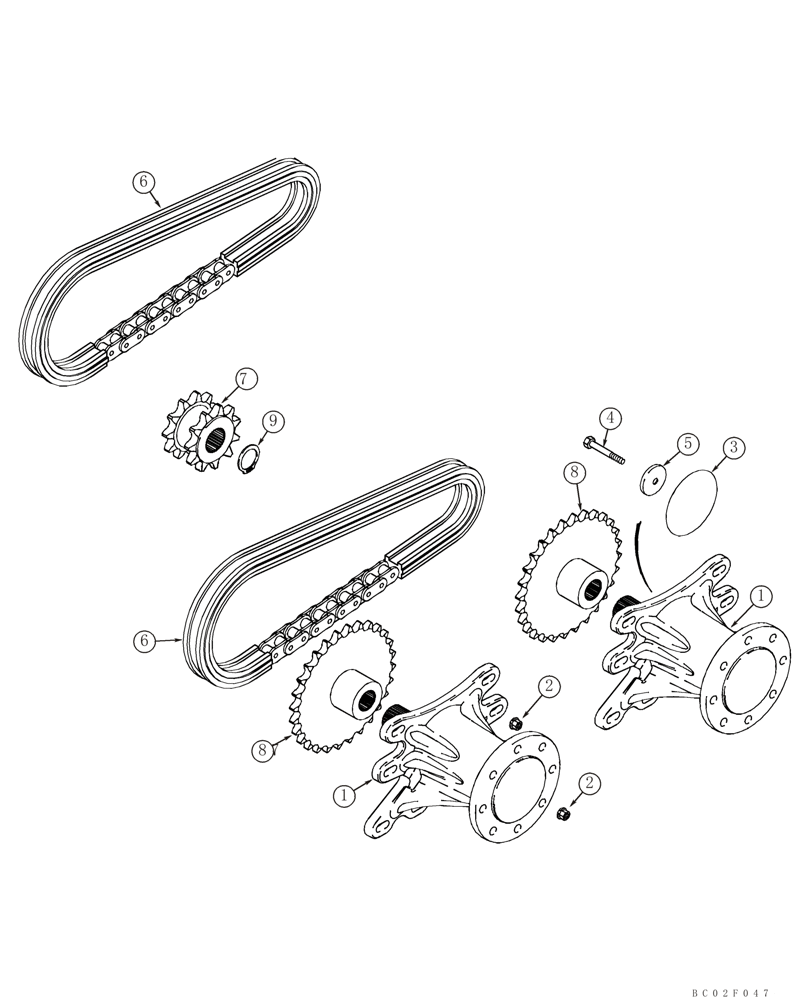

Запчасти Case IH 75XT (06-13) - DRIVE LINE (Nov 3 2009 8:28AM) (06) - POWER TRAIN

1

338552A3

MAIN SHAFT,Assembly

AXLE ASSY; Replaces 338552A2; See Figure 06-14

4шт.

2

86512498

FLANGE NUT,M16 x 2, Cl 10

32-64шт.

3

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

4

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

M14 x 80; 10.9; Replaces 827-16100

4шт.

B17577

LOCTITE

No. 242, 6 ml; Blue

1шт.

5

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

4шт.

6

233112A1

CHAIN (CE)

100/56P

4шт.

7

304888A1

DRIVE SPROCKET

11T

2шт.

8

228141A2

SPROCKET ASSY.

28T

4шт.

9

100-11212

SNAP RING,#212, Ext

2шт.
