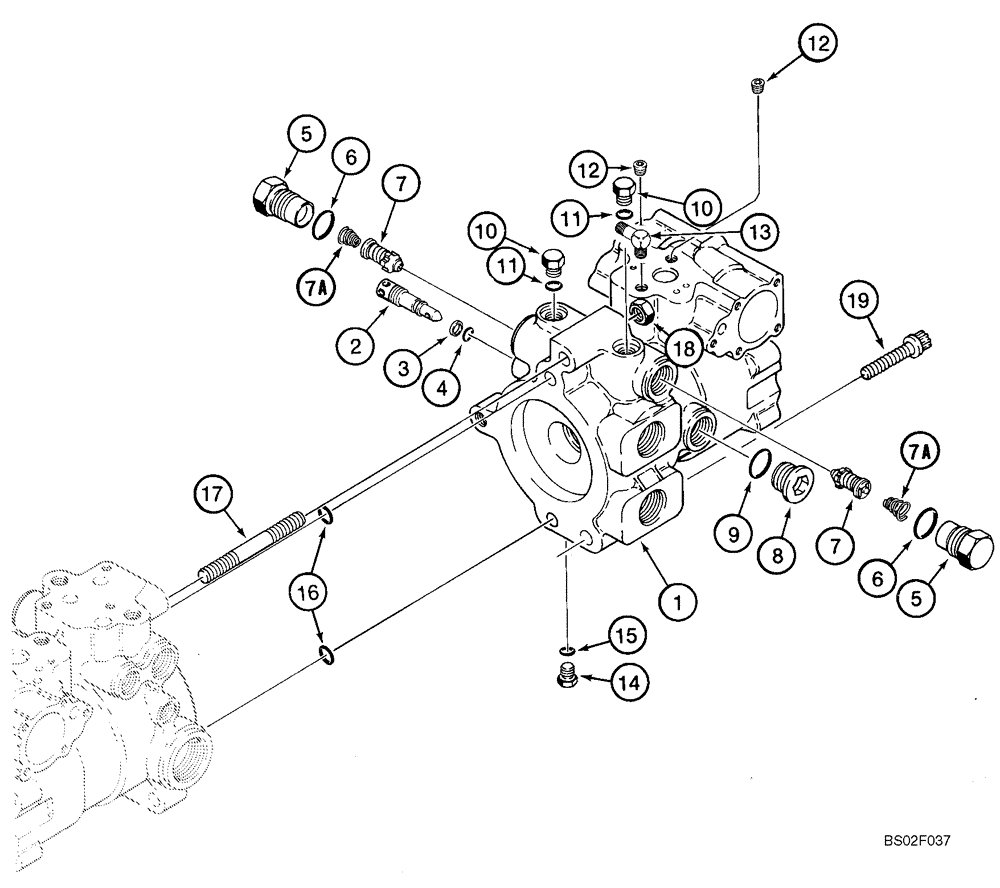

Запчасти Case IH 75XT (06-07) - PUMP, TANDEM - HOUSING (Aug 13 2010 12:54PM) (06) - POWER TRAIN

394132A2

PUMP, HYDRAULIC,46 CC

Incl. 1 - 19; Incl. 06-04, 06-06, 06-08 - 06-10B; If Used

1шт.

87298030

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

87298031

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

1

100712A1

HOUSING

1шт.

2

N14663

BY-PASS VALVE

1шт.

3

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

Backup

1шт.

4

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

H436101

VALVE POPPET

Incl. 5 - 7A

2шт.

5

NSS

NOT SOLD SEPARAT

Plug

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

7a

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

Incl. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. 11

2шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

F23137

PLUG

1-2шт.

13

H331884

ELBOW

90 deg

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Incl. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

17

K608432

STUD,1/2" - 13 x 4-1/2"

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

1шт.

19

26044R1

12 PT SCREW,Flg, 1/2" - 13 x 2"

1/2 x 2; 8

2шт.

140008A1

GASKET KIT

Seal

1шт.
