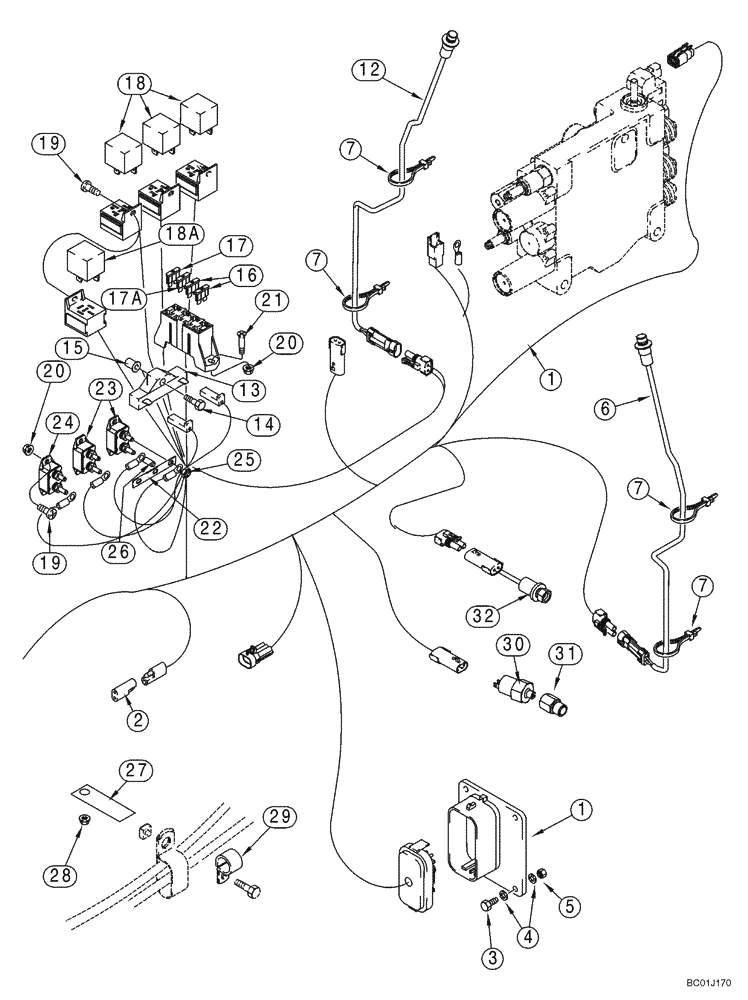

Запчасти Case IH 75XT (04-06) - HARNESS, FRONT - CHASSIS (Nov 3 2009 8:28AM) (04) - ELECTRICAL SYSTEMS

1

419623A3

HARNESS

Chassis; Replaces 419623A2; Incl. 2

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

1шт.

3

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

5

832-41406

NUT,M6 x 1, Cl 8

2шт.

6

256701A2

IGNITION SWITCH

Right Hand; Horn

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

8

242306A2

SWITCH

Operator Presence; Not Illustrated; See Figure 09-21

1шт.

12

256702A3

PARK BRAKE SWITCH

Left Hand; Brake

1шт.

13

107558C1

RESISTOR

25 ohm

1шт.

14

190-104

SCREW,Phil Pan Hd, #10 - 32 x 1 1/2"

No. 10 NF x 1-1/2

1шт.

15

D122634

ISOLATOR,12.7mm OD x 14.1mm L

1шт.

16

A149800

FUSE,10 Amp

10 amp

2шт.

17

A149802

FUSE

20 amp

1шт.

17a

A149803

FUSE,25 Amp

25 amp; Wiper; If Equipped

1шт.

18

D128310

RELAY

30 amp

3шт.

18a

314451A1

RELAY

40 amp, 12V; Heavy Duty; If Used

1шт.

19

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

5шт.

20

825-5145

NUT,M5, Flg Ser

7шт.

21

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

2шт.

22

245861C1

BAR

1шт.

23

303886A1

BREAKER

40 amp; Incl. Hardware

2шт.

24

303884A1

BREAKER

15 amp; Incl. Hardware

1шт.

25

225-14210

NUT,#10-32

1шт.

26

247333A1

CAP

6шт.

27

A37179

CLIP

2шт.

28

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

29

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1-1/16 ID

1шт.

30

405418A1

SWITCH, PRESSURE

PRESSURE SWITCH Backup Alarm

1шт.

31

D137424

FITTING

9/16 NF Or x 1/8

1шт.

32

443897A1

SWITCH

Brake Pressure; Replaces 251905A2

1шт.
